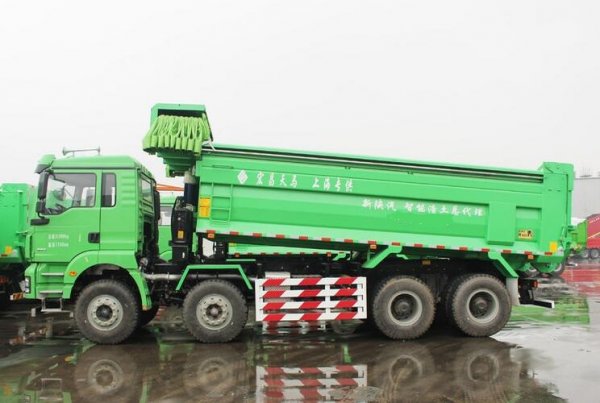

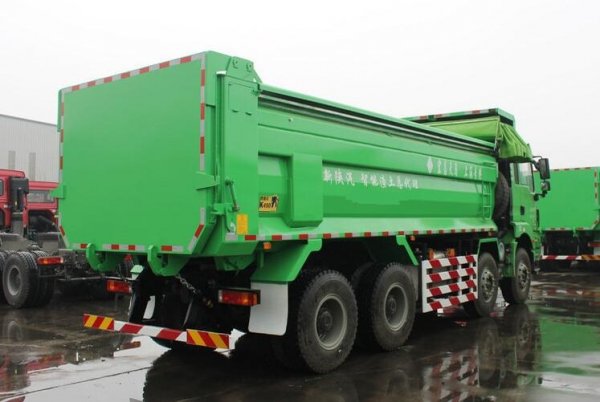

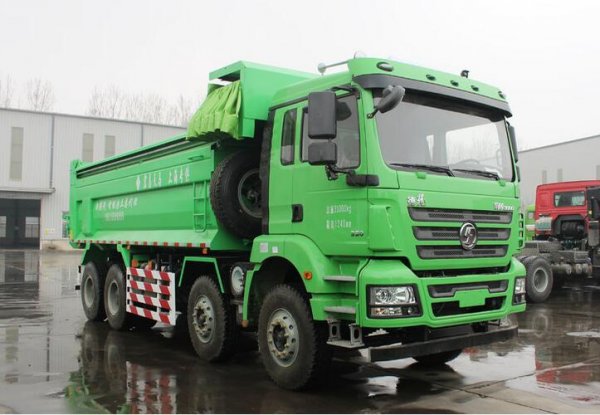

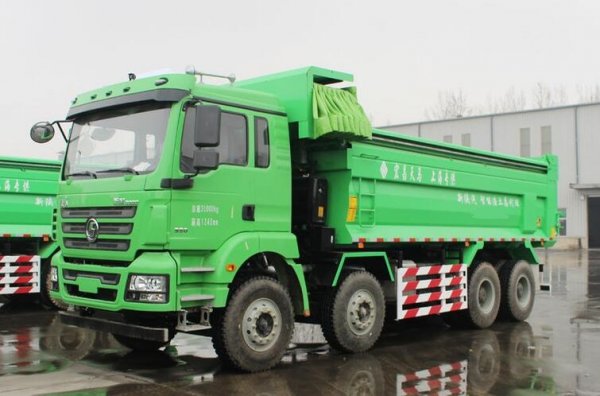

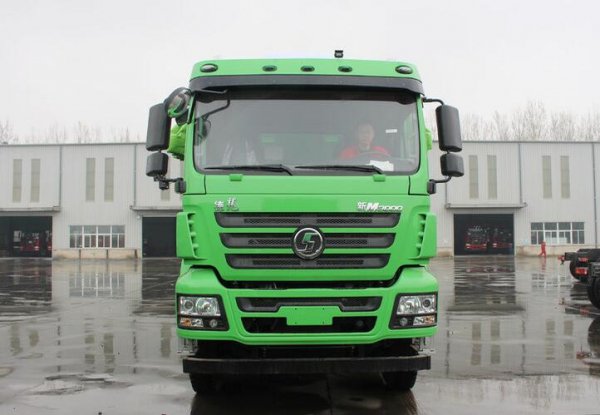

SHACMAN New M3000 Light Kerb Mass 8x4 Tipper Truck

No.:

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9783

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details

SHACMAN New M3000 Light Kerb Mass 8x4 Tipper Truck


--Truck body from 15cbm~20cbm, for sand and clinkers transportation in the city

--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Green (Other color is optional)


Traction type: 8x4

Drive System: LHD(RHD is optional)

Cabin:New M3000 Flat Cabin, one sleeper, Air Conditioner

Engine Brand:WEICHAI

Model: WP10.380E32  EuroII  Rated power :380hp (340hp is optional)

Engine displacement: 9.726 liters

Gearbox: FAST 9 Speeds (9JS119)

Clutch: Ф430 Diaphragm type

Steering: ZF technology

Axle: Front 7.5 Ton MAN axle; Rear 16 Ton MAN double reduction axle, ratio:5.262

Max. running speed (km/h): 85

Tire: 12.00R20, 12R22.5

Fuel tank: 400L(Aluminum)

Kerb weight (kg): 14000

Payload (kg): 40000

Wheel base (mm): 1800+3775+1400

Dimensions(L*W*H)(mm): 10029x2500x3450


Dump body

7600x2300x1500mm,  Steel thickness (mm) :Bottom 8 , side 4.

Hydraulic lifting system: Front lifting
