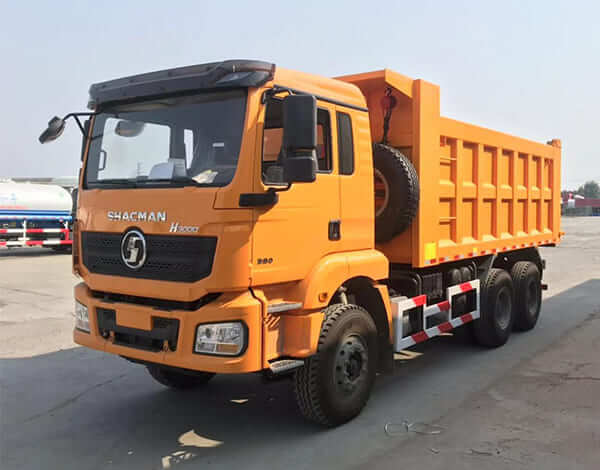

SHACMAN M3000 light kerb weight 6x4 dump truck for clinker transportation in city

No.:

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Cel: 0086 176 6971 7515

Whatsapp: 8617669717515

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details

SHACMAN M3000 light kerb weight 6x4 dump truck for clinker transportation in city


--Truck body from 15cbm~20cbm, for sand and clinkers transportation in the city

--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Green (Other color is optional)


Traction type: 6x4

Drive System: LHD(RHD is optional)

Cabin:New M3000 Flat Cabin, one sleeper, Air Conditioner

Engine Brand:WEICHAI

Model: WP10.290E32  EuroII  Rated power :290hp (340hp is optional)

Engine displacement: 9.726 liters

Gearbox: FAST 9 Speeds (9JS119)

Clutch: Ф430 Diaphragm type

Steering: ZF technology

Axle: Front 7.5 Ton MAN axle; Rear 16 Ton MAN double reduction axle, ratio:5.262

Max. running speed (km/h): 85

Tire: 12.00R20, 12R22.5

Fuel tank: 400L(Aluminum)

Kerb weight (kg): 11400(8040kg for chassis only)

Payload (kg): 25000

Wheel base (mm): 3775+1400

Dimensions(L*W*H)(mm): 8229x2500x3450


Dump body

5400x2300x1500mm,  Steel thickness (mm) :Bottom 8 , side 4.

Hydraulic lifting system: Middle F/T lifting


FREE Inquiry Now

If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
