New ZOOMLION 47M Concrete Pump Truck 47X-5RZ with SITRAK chassis
No.: zoomlion
Vehicle Type: Concrete Pump Truck
Brand Name: ZOOMLION
Person in charge: Lynn Zhang
Cel: 86 13370593216
Whatsapp: 86 13370593216
E-mail: sales6@chinatruck.cc
FREE GET QUOTE
Details
WHY YOU CHOOSE IT?
1. High - efficiency: Its powerful pumping system ensures fast and stable concrete delivery, greatly boosting construction efficiency for large projects.
2. Good maneuverability: With an advanced design, it can access various sites easily, even in tight spaces. The flexible boom enables precise concrete placement.
3. Durable & low - maintenance: Made of high - quality materials, it withstands long - term heavy use. Its modular design cuts maintenance time and costs, ensuring cost - effective operation.

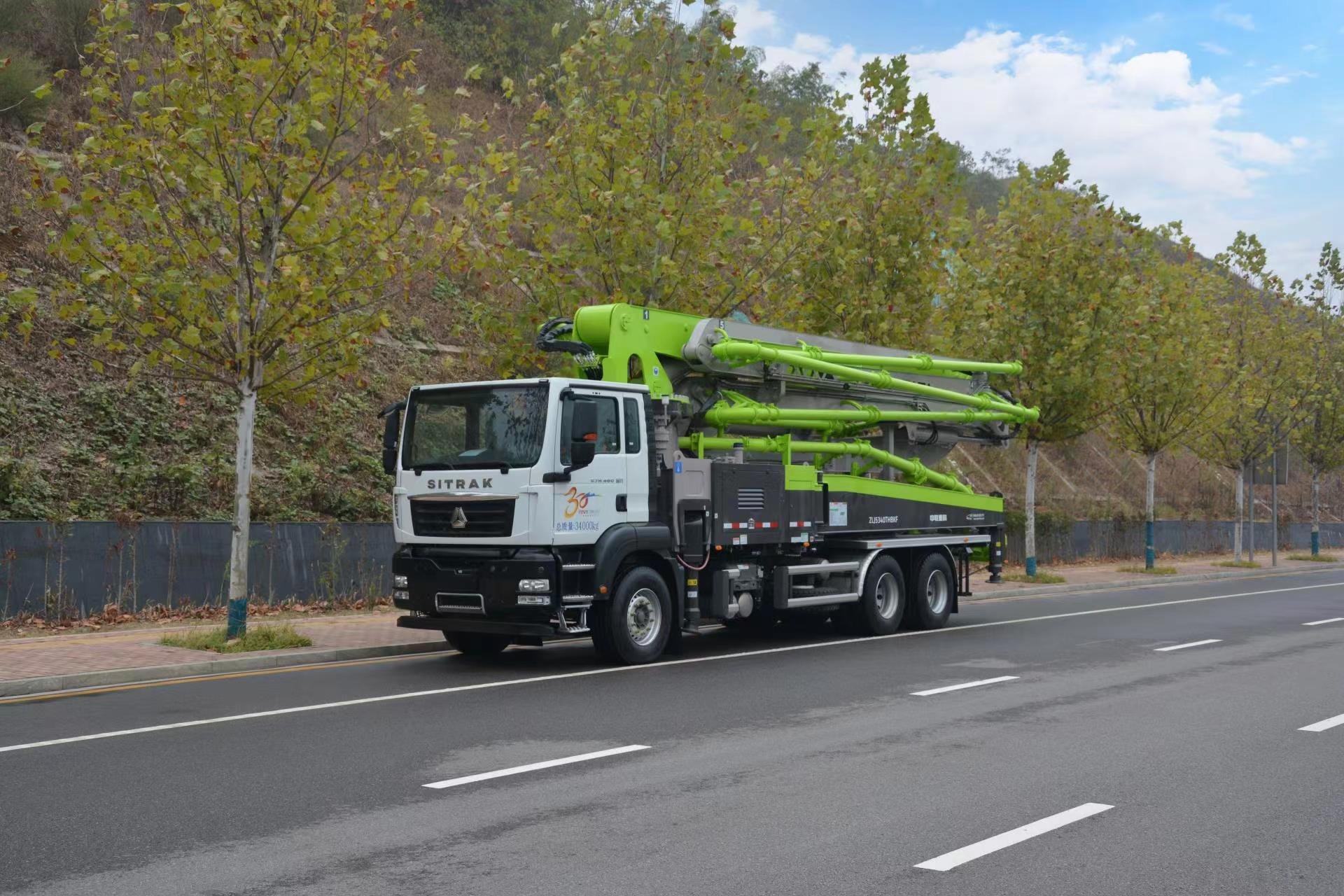

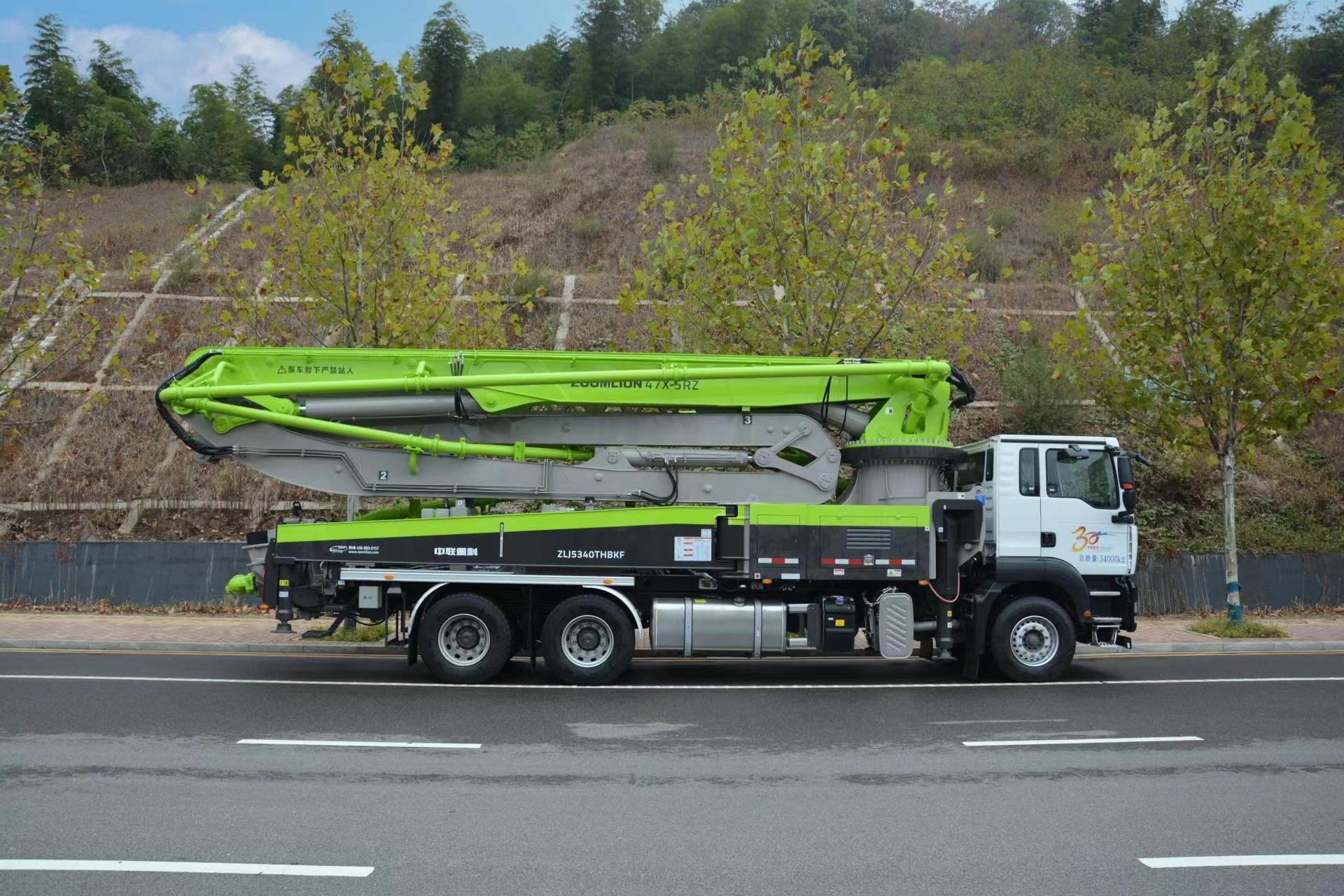

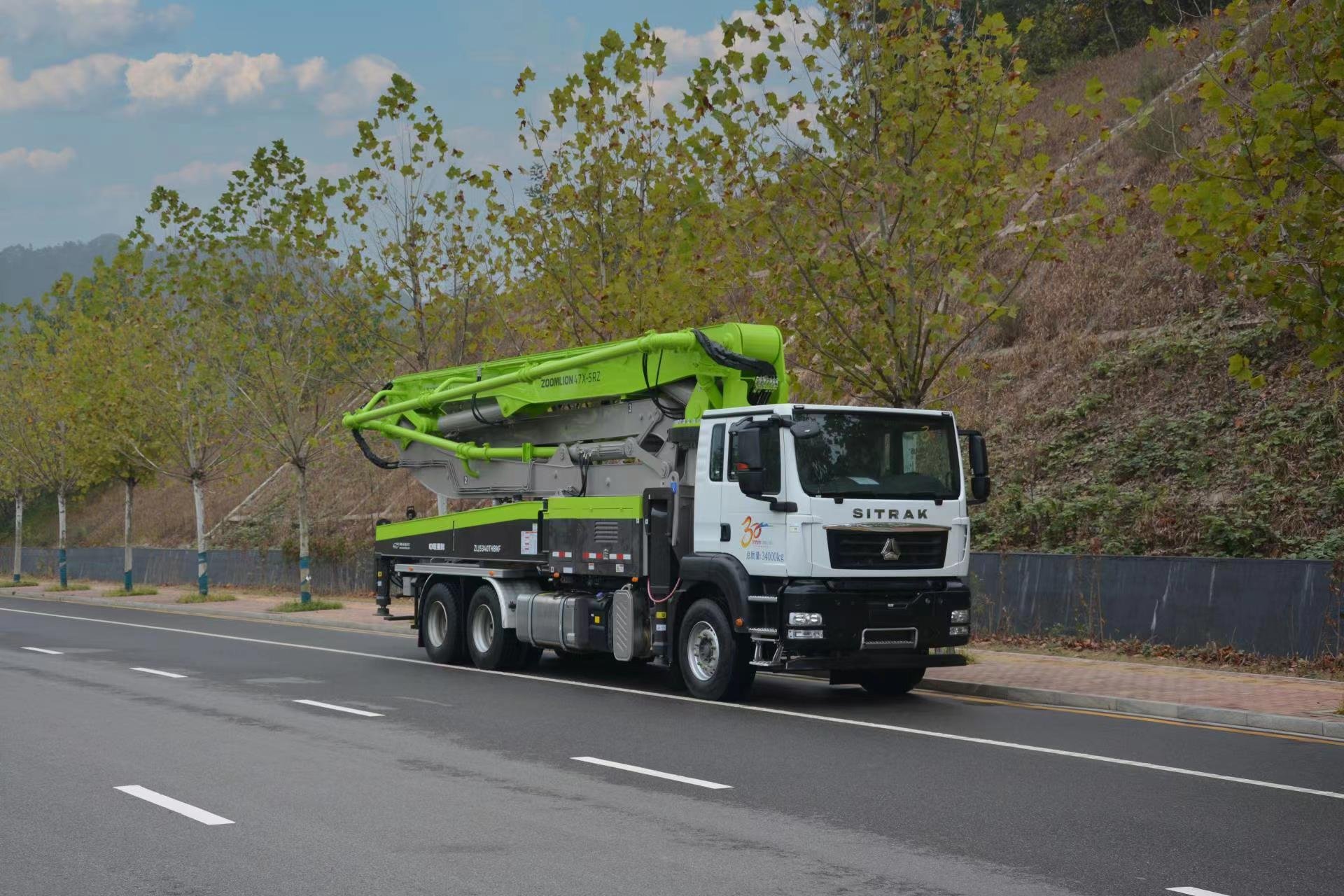

APPEARANCE
CONFIGURATION
| Structural form | 47X-5RZ |
| Maximum fabric height | 46.1m |
| Maximum fabric radius | 41.8m |
| Maximum fabric depth | 32.2m |
| Swivel angle | 360° |
| Number of jib sections | 5 |
| Boom section length | 9380/8130/7940/8915/8500mm |
| Arm angle | 90°/180°/180°/240°/195° |
| Delivery pipe diameter | 125mm |
| End hose length | 3000mm |
| The minimum opening height of the boom | 9440mm |
| Outrigger span (front × rear × longitudinal) | 9310x9280x9400mm |
