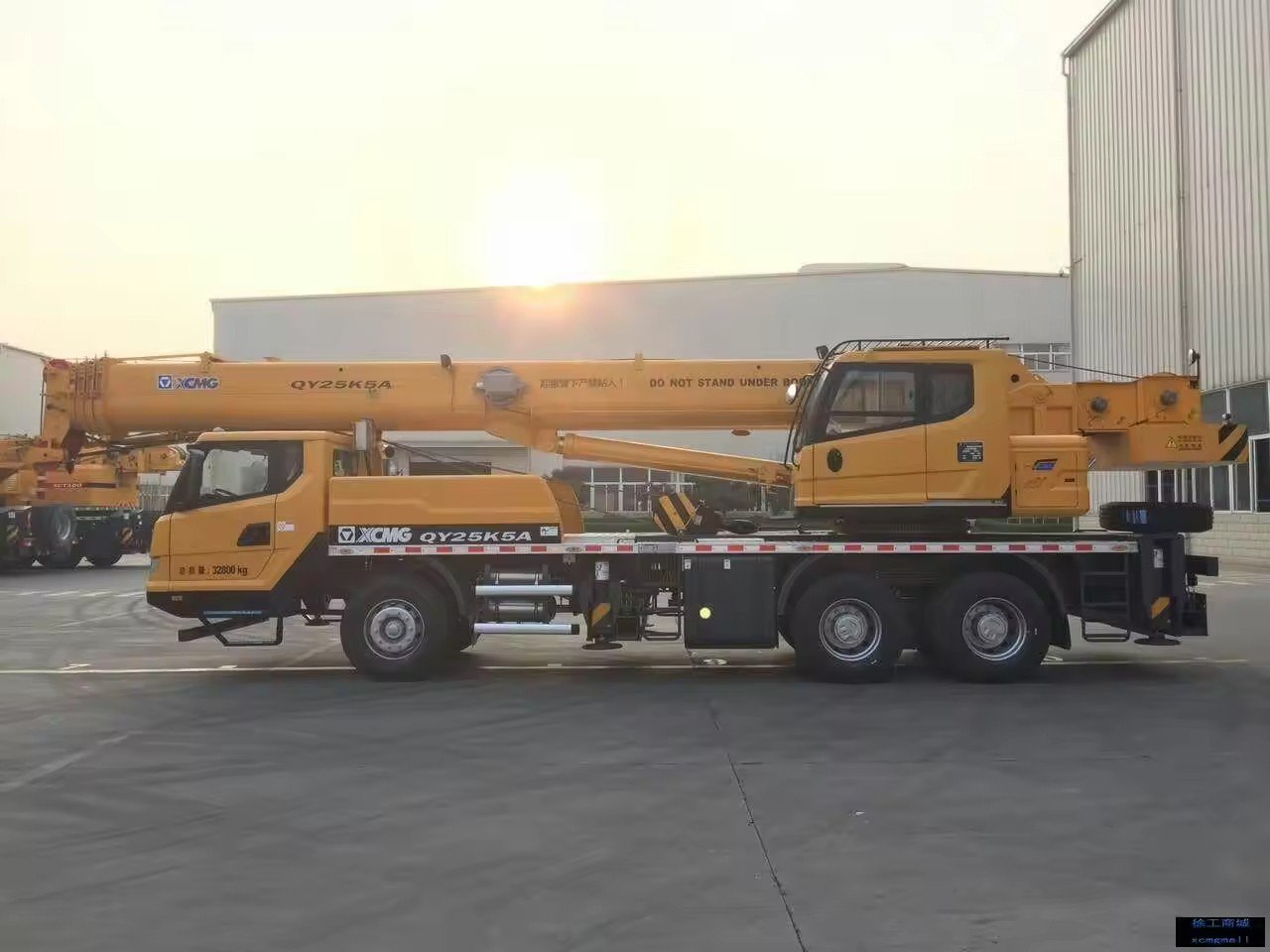

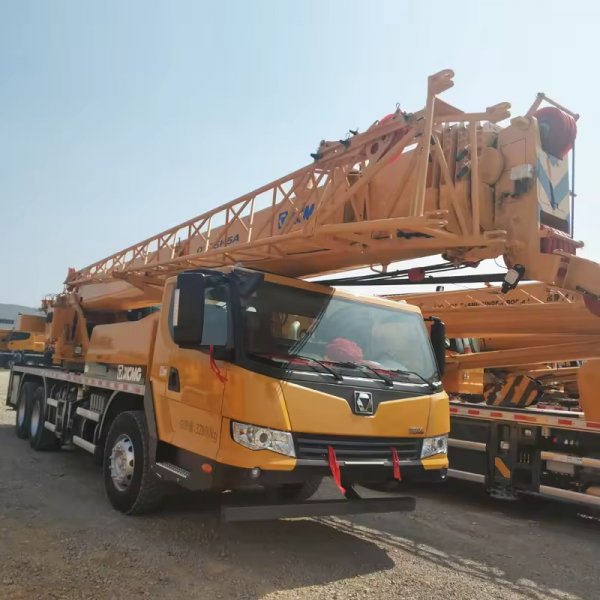

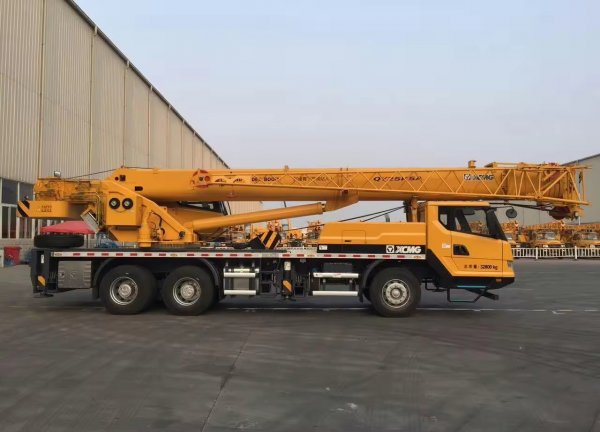

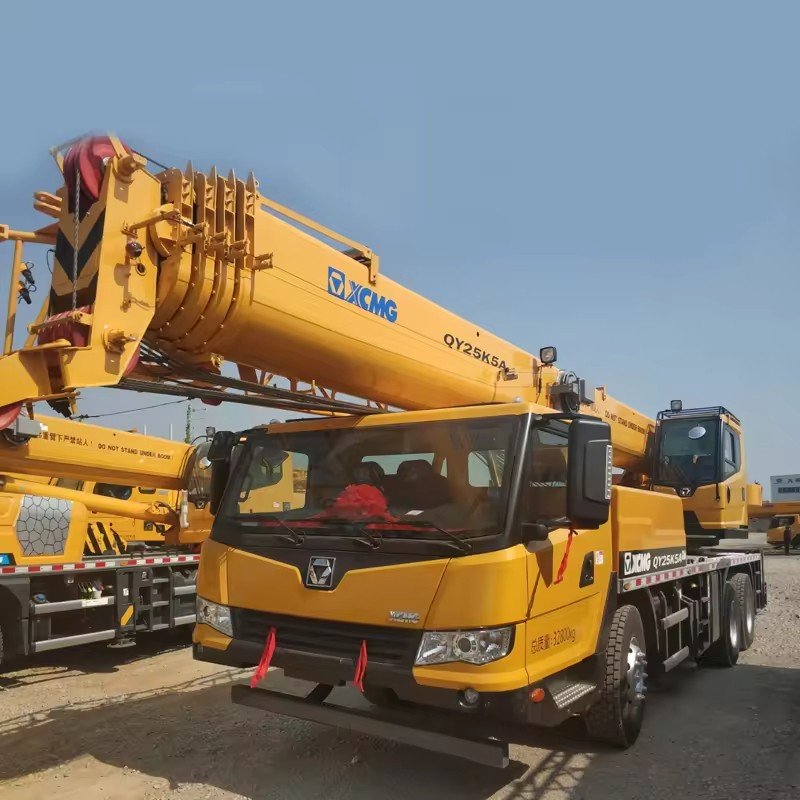

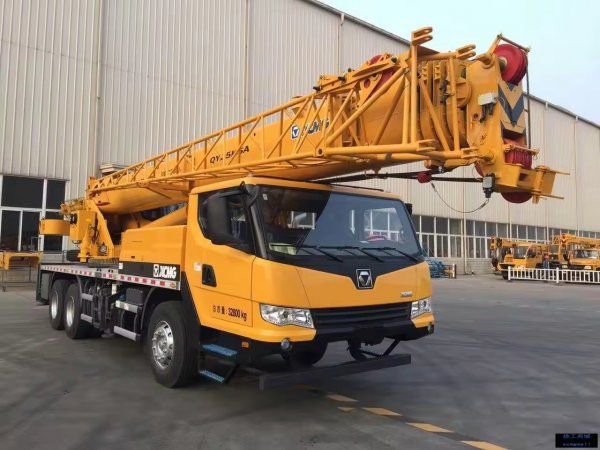

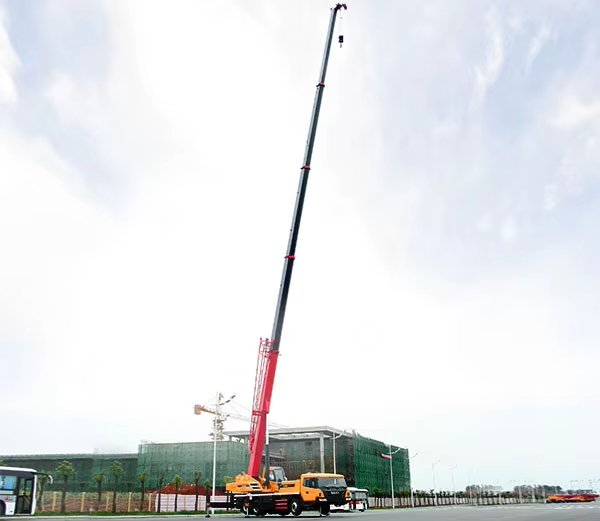

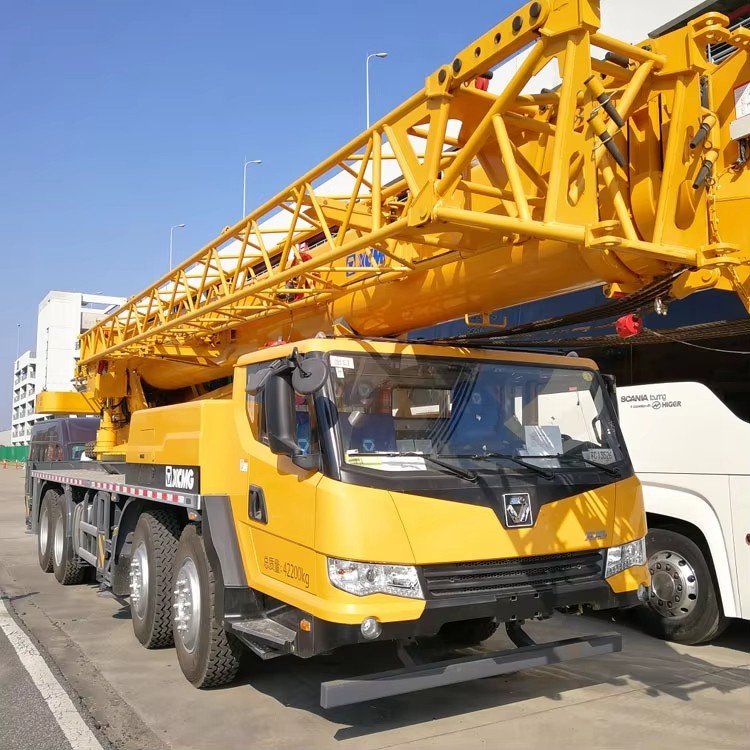

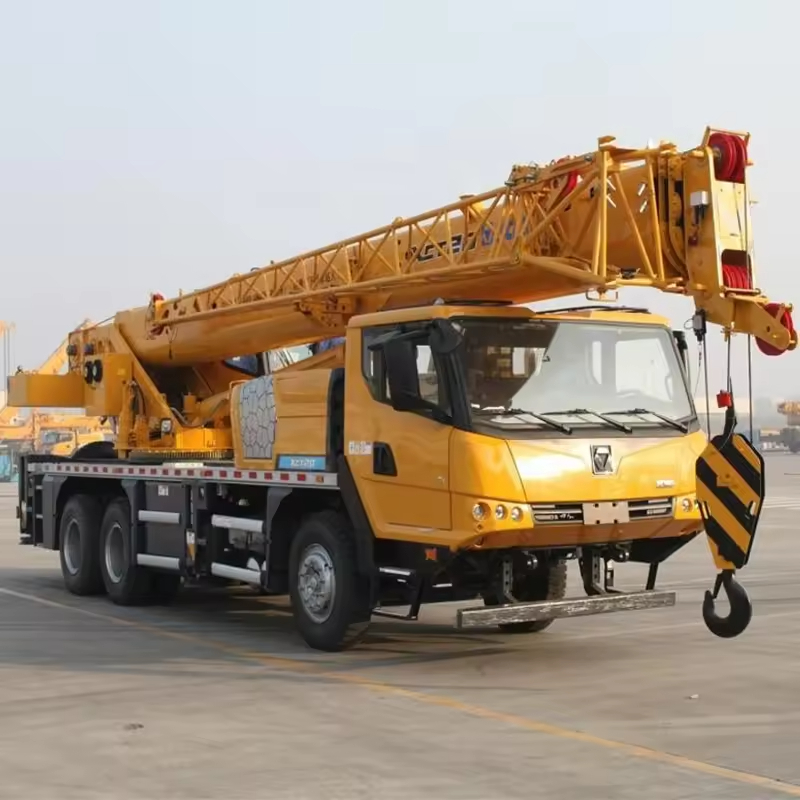

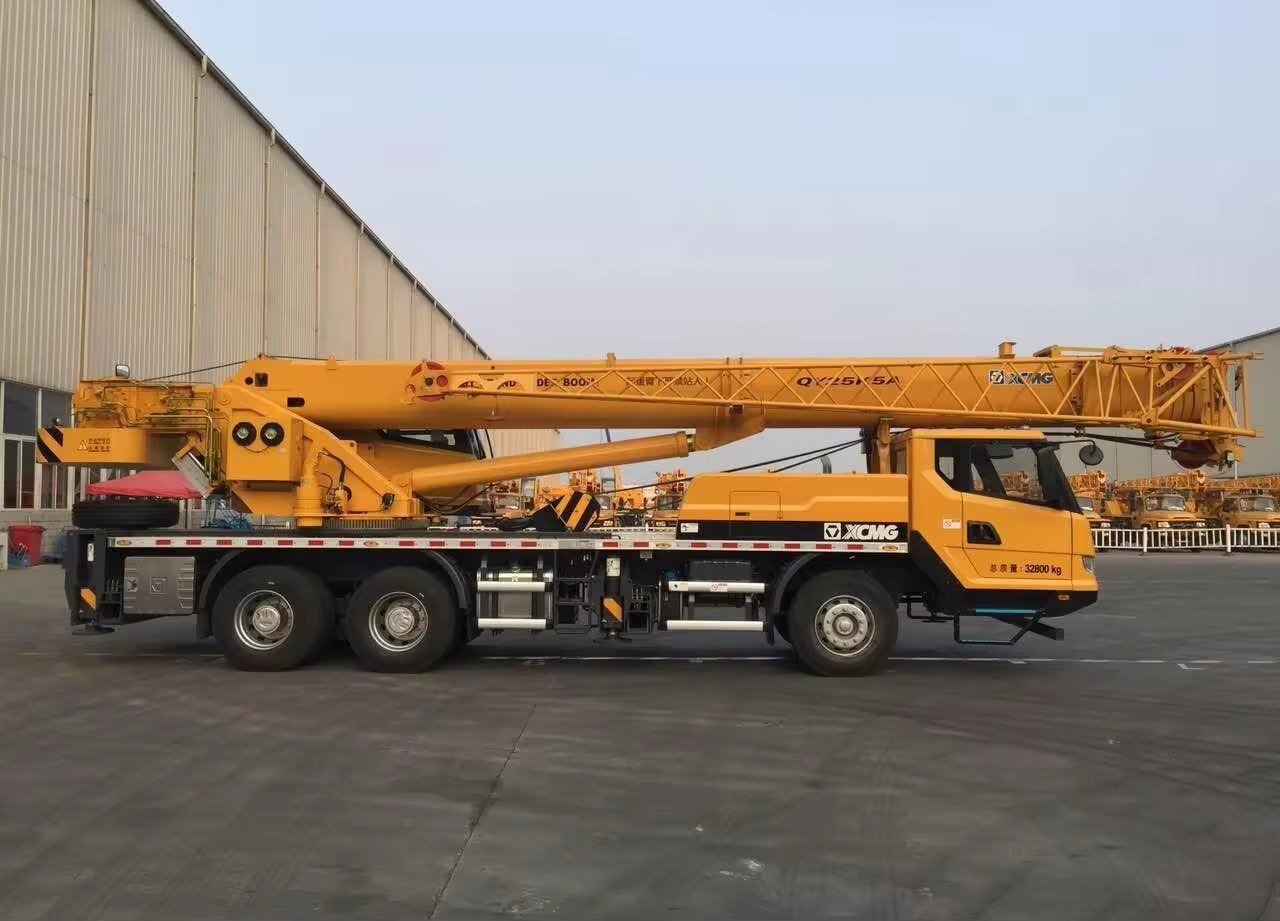

Product Description: XCMG Zoomlion Hydraulic Mobile Truck Cranes
The XCMG Zoomlion hydraulic mobile truck cranes are top-tier machines designed for heavy lifting and efficient operations. Available in 25 ton, 50 ton, 55 ton, and 100 ton capacities, these cranes offer leading lifting performance and driving capabilities, making them ideal for various industrial applications.
Product Highlights
Leading Lifting Performance: Industry-leading lifting, hoisting, and telescopic efficiency.
Mature Dual-Pump Confluence Technology: Ensures reliable and efficient operation.
Enhanced Safety: Improved radiation and power system reliability for safer lifting and driving operations.

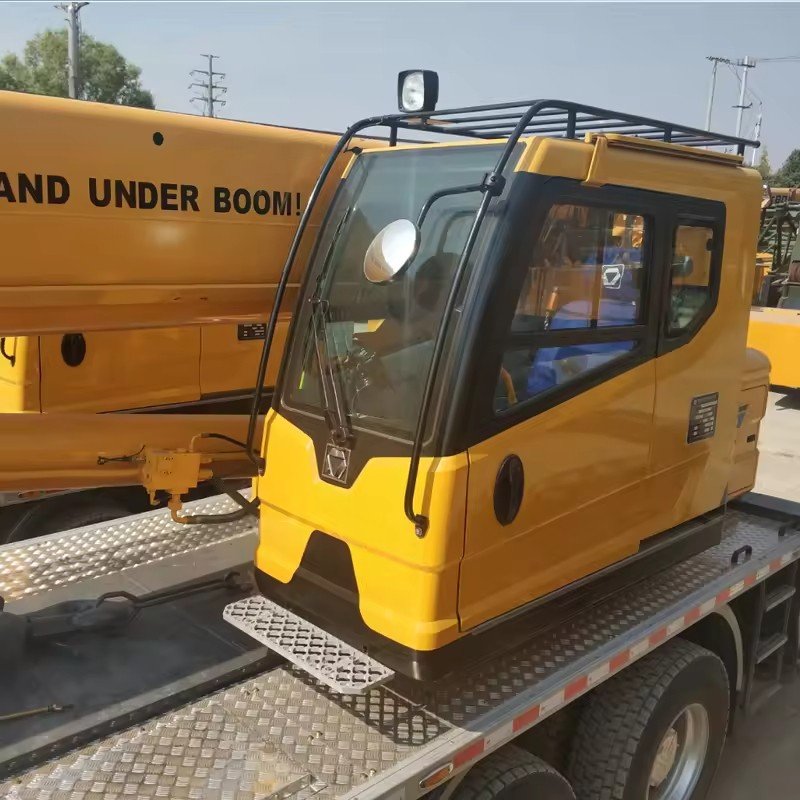

Comfortable Operation: Air-assisted shift gears for smoother control.
Modern Design: Upgraded outline and humanized design for enhanced comfort and usability.
Main Parameters
| Description | Unit | Parameter Value |
|---|---|---|
| Total Length | mm | 13930 |
| Total Width | mm | 2780 |
| Overall Height | mm | 3630 |
| Wheelbase | mm | 2304+2075 |
| Front Overhang/Rear Overhang | mm | 2389/2064 or 2376/2064 |
| Front Extension/Rear Extension | mm | 2131/226 or 2144/226 |
| Gross Vehicle Mass | kg | 42200 |
| Shaft Load (Front Axle) | kg | 16200 |
| Shaft Load (Rear Axle) | kg | 26000 |
| Engine Model | WD615.338 | |
| Engine Rated Power | kW/(r/min) | 276/2200 |
| Engine Rated Torque | nm/(r/min) | 1500/1300-1600 |
| Maximum Driving Speed | km/h | 85 |
| Minimum Stable Driving Speed | km/h | 2~3 |
| Minimum Turning Diameter | m | 24 |
| Minimum Ground Clearance | mm | 327 |
| Highest Level Ability | % | 42 |
| Approach Angle | ° | 19 |
| Departure Angle | ° | 15 |
| Braking Distance (30 km/h, Fully Loaded) | m | ≤10 |
| Fuel Consumption (per 100 km) | L | 40 |
| Exterior Noise Level (Acceleration) | dB (A) | ≤88 |
| Noise Levels at Seating Positions | dB (A) | ≤90 |

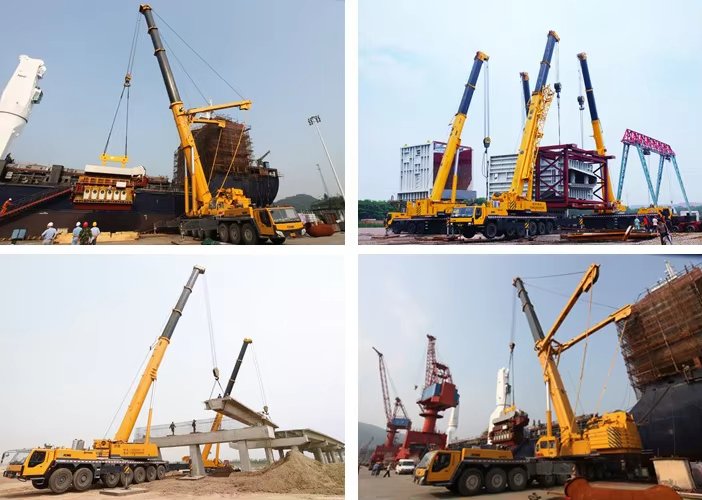

Applications
Construction sites
Heavy lifting operations
Infrastructure projects
Industrial use
