3 FUWA axles 60t loading capacity low bed trailer
3 FUWA axles 60t loading capacity low bed trailer is a heavy-duty transportation solution designed for hauling oversized and heavy-weight cargo. With its robust construction and reliable components, this trailer is built to meet the demanding requirements of various industries that deal with large-scale equipment and machinery transportation.
Key features:
✔ High Load-Bearing Capacity
✔ Sturdy Frame Structure
✔ Reliable Suspension System
✔ Versatile Design Elements

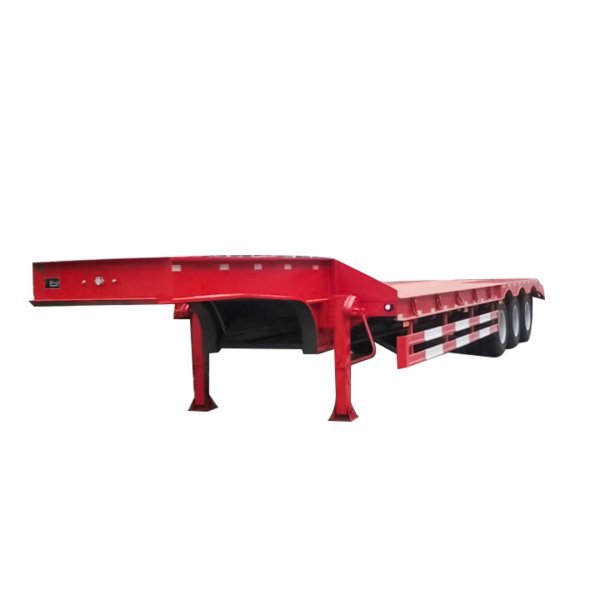

3 FUWA axles 60t loading capacity low bed trailer

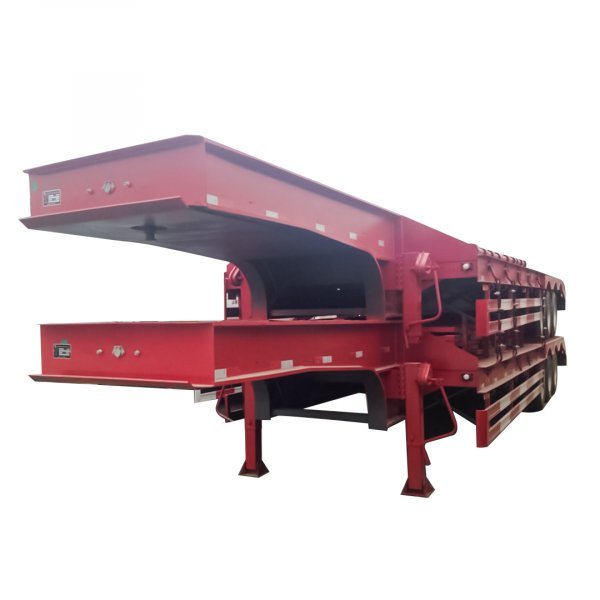

3 FUWA axles 60t loading capacity low bed trailer
Specification:
Overall Dimension | 13000x3000x2980mm | ||
Tare Weight | 9500kg | Pay Load | 50ton |
King Pin Setting | 1240mm | Rear Overhang | 1690mm |
Track | 1840mm | Wheel base(mm) | 6800+1305+1305 |
Running Gear | |||
Suspension | Tri-axle 10-pcs leaf spring suspension 90*16mm with equalizer beam | ||
Tires | 12R22.5, 9.00*22.5wheel rim, 12sets. | ||
Axles | 3axles, 13T capacity, FUWA | ||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | ||
Under Frame | |||
Main Beam | “I” shape, mild Alloy by automatic submerged arc welding. Top flange:20mm, middle:12mm, rear flange:20mm. | ||
Side Beam | 250# U steel, bending parts | ||
King Pin | Size: 90# (3.5’’); Type: welded or assembled | ||
Landing Gear | Single side operation, Static capacity 30Ton | ||
Twist Locks | NO | ||
Flatbed Floor | Checkered sheet, thickness 4mm | ||
Toolbox | 1 tool box, length 1.5m. (As company standard, installed at the middle part of vehicle) | ||
Mud fender | Rubber mud fender, installed at the top of wheel
| ||
Side protection | Installed at the both sides of vehicle | ||
Rear fender guard | Installed at the rear of vehicle | ||
Electrical & Paint | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Wiring | 24V, 6 lines | ||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
Paint | •Sand blasting treatment •Silver powder paint cover varnish •Color upon request | ||
Application:
✔ Long-distance Freight Transportation
✔ Container Transportation
✔ Heavy-Equipment Hauling
