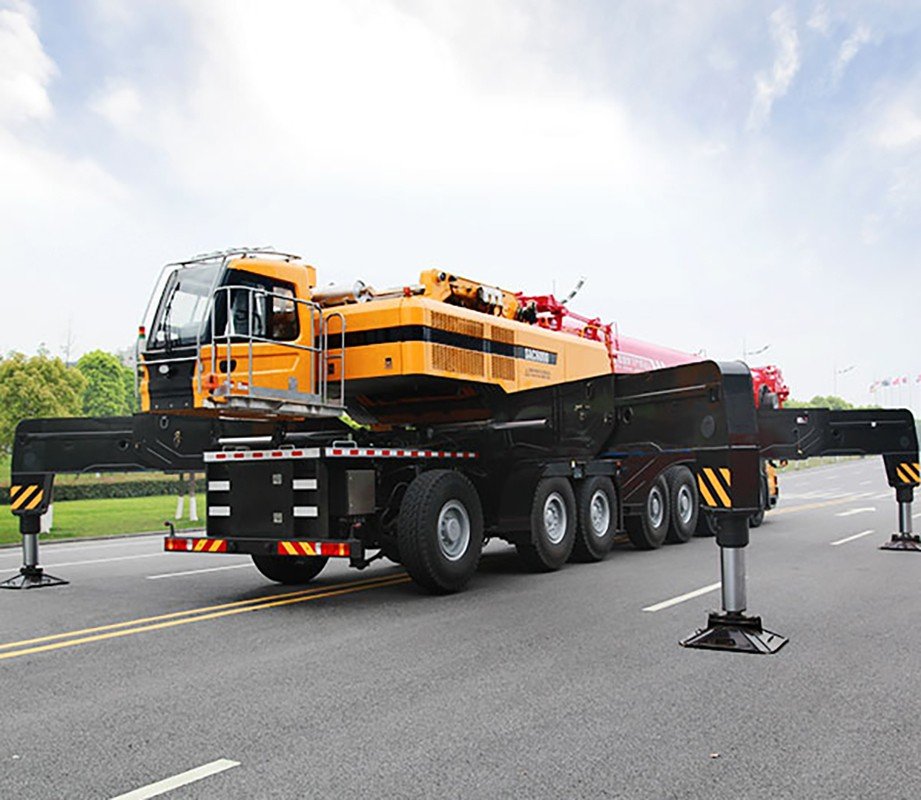

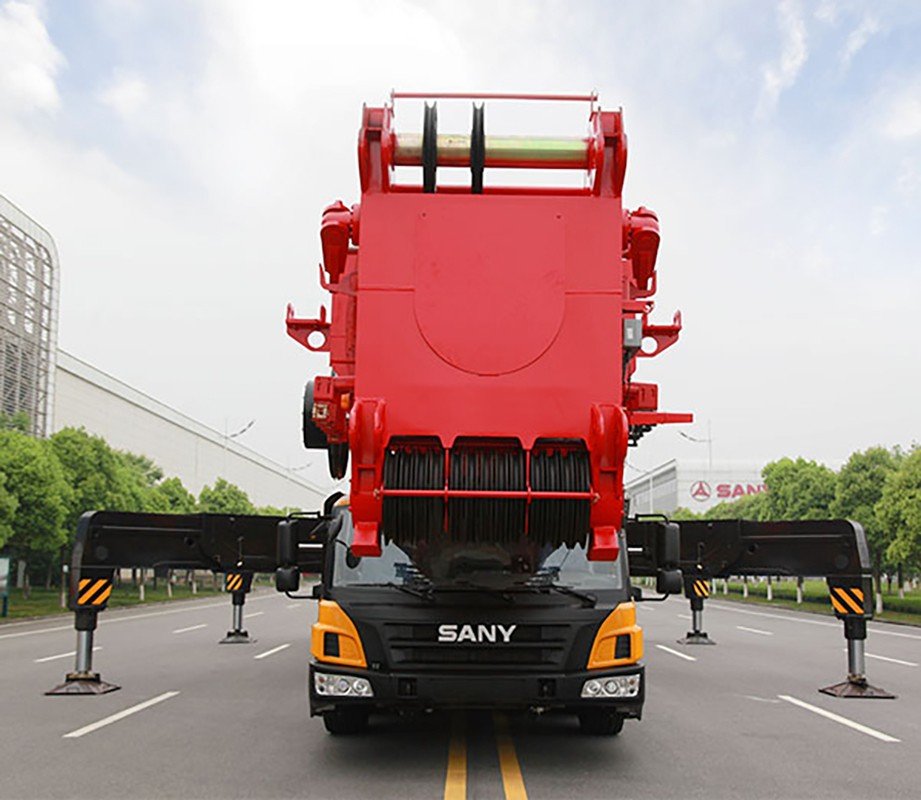

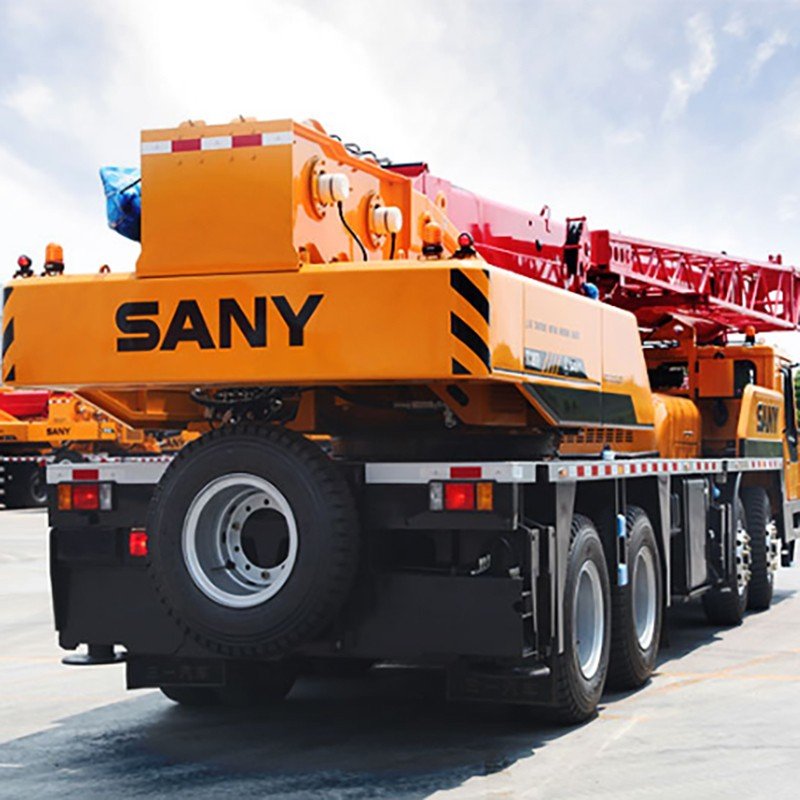

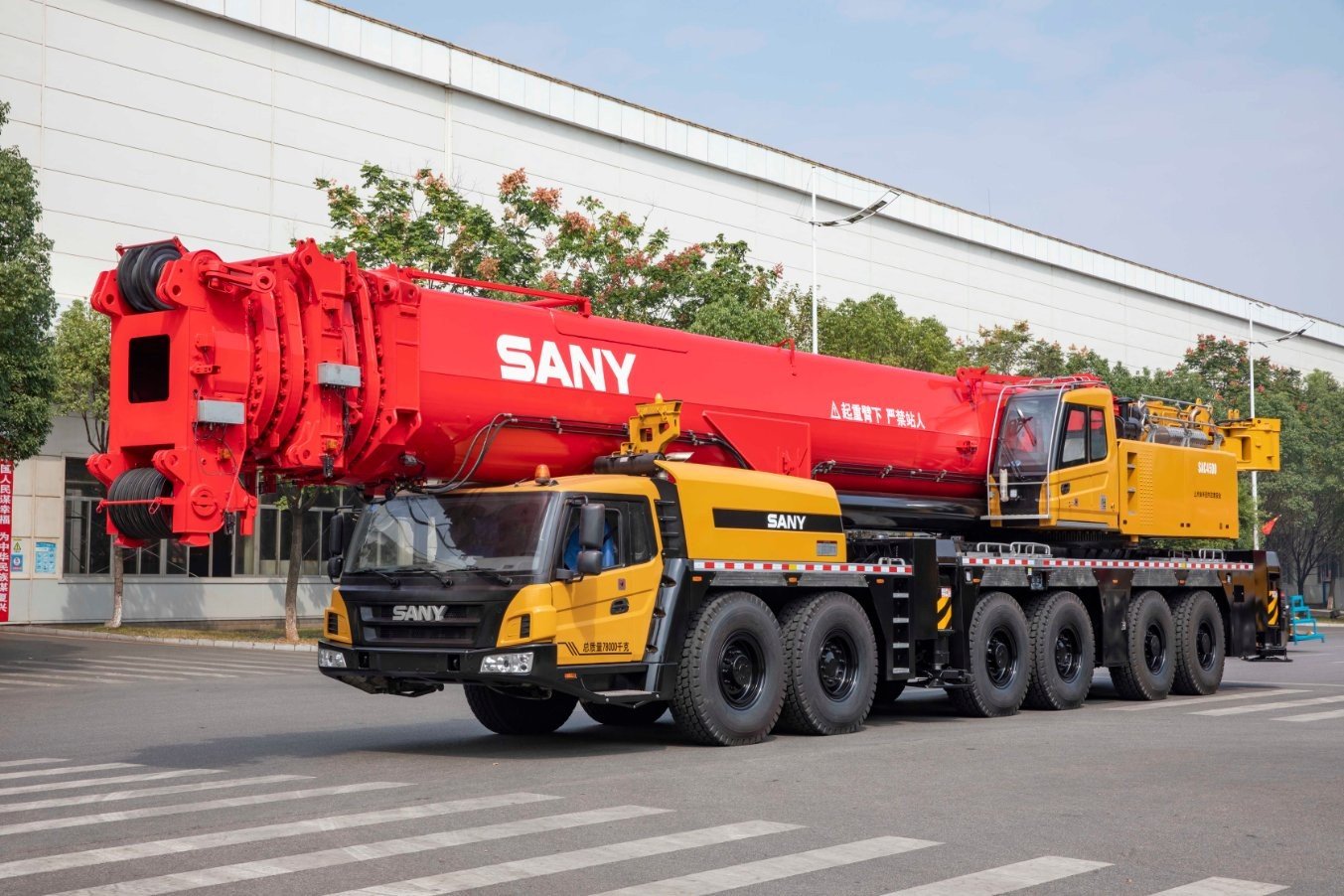

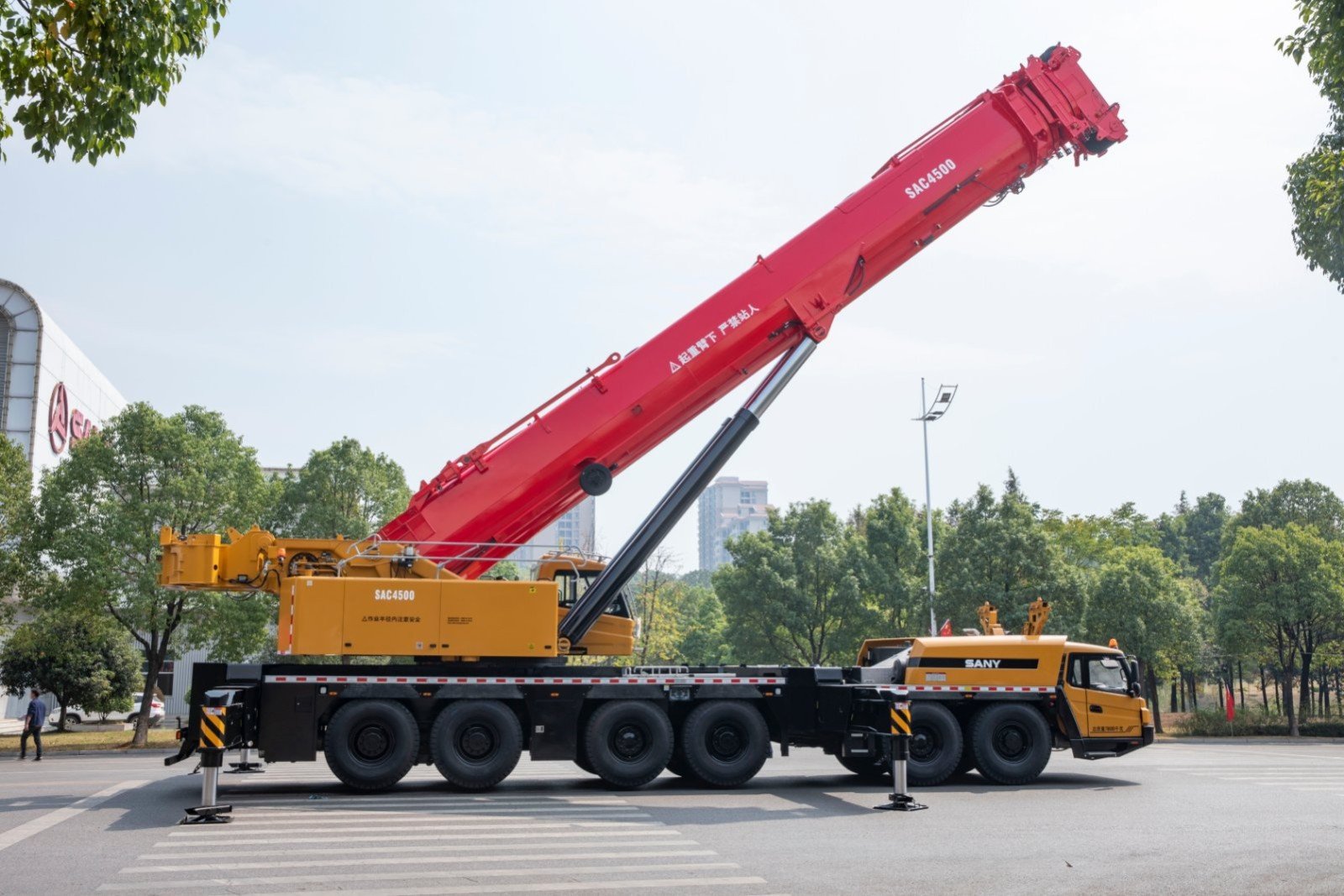

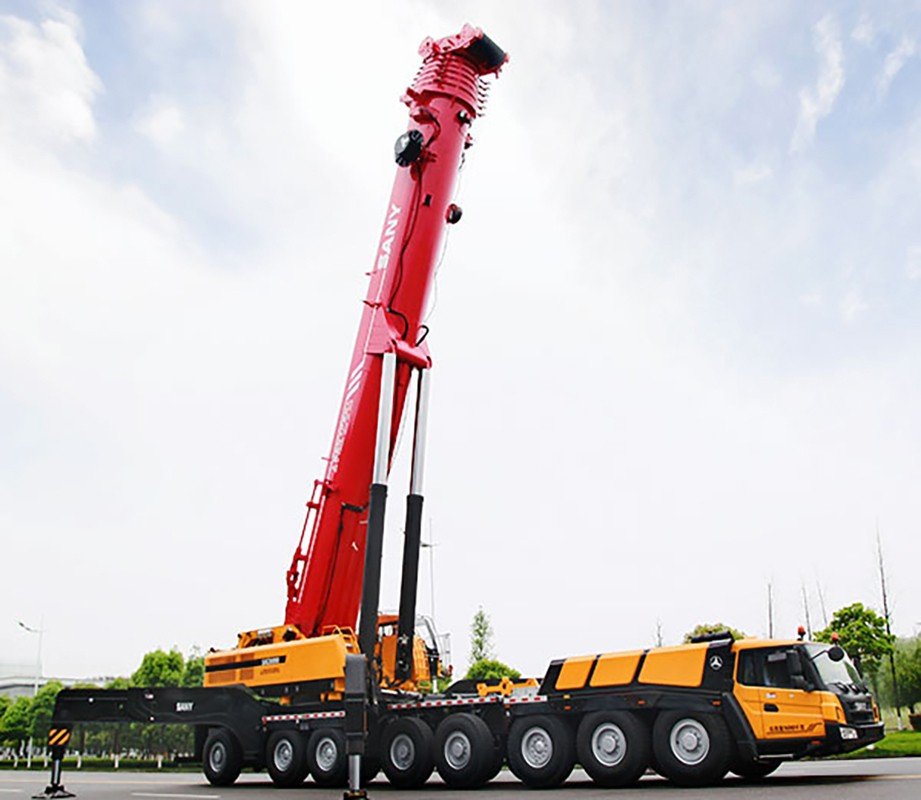

STC160 Truck-Mounted Crane

The STC160 Truck-Mounted Crane is a high-capacity lifting machine designed for heavy-duty operations in construction, infrastructure development, and industrial applications. With its powerful engine and advanced lifting capabilities, this crane offers exceptional performance and reliability, making it suitable for large-scale projects.

Product Highlights

• The STC160 features a four-section U-shaped boom with a maximum lifting capacity of 160 tons.

• The crane is equipped with a 6×4 drivetrain, providing excellent mobility and stability on various terrains.

• The maximum lifting moment reaches up to 962 kN·m on the base boom, and 341 kN·m when fully extended with a jib.

• The crane offers a wide working range with a maximum boom length of 41.5 meters (with jib).

• The crane is designed for high efficiency, with fast boom extension/retraction and lifting speeds.

Product Parameters

• Capacity

• Max. lifting capacity: 160 t

• Dimensions

• Overall length: 14750 mm

• Overall width: 2750 mm

• Overall height: 3850 mm

• Axles

• Number of axles: 3

• Axle distance-1,2: 4325 mm

• Axle distance-2,3: 1350 mm

• Weight

• Overall weight: 46000 kg

• Front axle load: 6500 kg

• Rear axle load: 23500 kg

• Engine

• Model: Not specified

• Rated power: 213 kW/2100 rpm

• Rated torque: 1050 N·m/1200~1400 rpm

• Emission standard: Euro 3

• Traveling

• Max. traveling speed: 80 km/h

• Min. turning radius: 10 m

• Min. turning radius of boom head: 12 m

• Drive train: 6×4

• Min. ground clearance: 220 mm

• Approach angle: 17°

• Departure angle: 12°

• Max. gradeability: 38%

• Fuel consumption per 100 km: ≤ 37L

• Main Performance

• Temperature range: -30ºC to +60ºC

• Min. lifting radius: 3 m

• Tail swing radius of superstructure: 3.37 m

• Boom Section

• Boom shape: U-shaped

• Length-Base boom: 10.65 m

• Length-Full-extend boom: 33.5 m

• Length-Full-extend boom+jib: 41.5 m

• Outrigger span (Longitudinal/Transversal): 5.3 m × 6.2 m

• Jib offset: 0°, 15°, 30°

• Lifting Moment

• Max. lifting moment-Base boom: 962 kN·m

• Max. lifting moment-Full-extend boom: 544 kN·m

• Max. lifting moment-Full-extend boom+jib: 341 kN·m

• Working Speed

• Max. single rope lifting speed of main winch (no load): ≥120 m/min

• Max. single rope lifting speed of auxiliary winch (no load): ≥120 m/min

• Full extend/retract time of boom: 70/50 s

• Full raise/lower time of boom: 70/55 s

• Swing speed: 0~2 r/min

Applications

• Construction Sites: Ideal for lifting heavy materials and equipment in high-rise building construction.

• Infrastructure Development: Suitable for bridge construction, road building, and other large-scale projects.

• Industrial Plants: Efficient for lifting and moving heavy machinery and components.

• Logistics and Warehousing: Provides powerful lifting support for loading and unloading heavy cargo.
