SINOTRUK HOWO 4x2 YN27CRE10 116HP 5T Wing Open Stage Show Truck with 6-Speed Overdrive Transmission 2.5T Axle for Sale
No.:
Vehicle Type: Advertising Truck
Brand Name: SINOTRUK
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
SINOTRUK HOWO 4x2 YN27CRE10 116HP 5T Wing Open Stage Show Truck with 6-Speed Overdrive Transmission 2.5T Axle for Sale
Key Features：

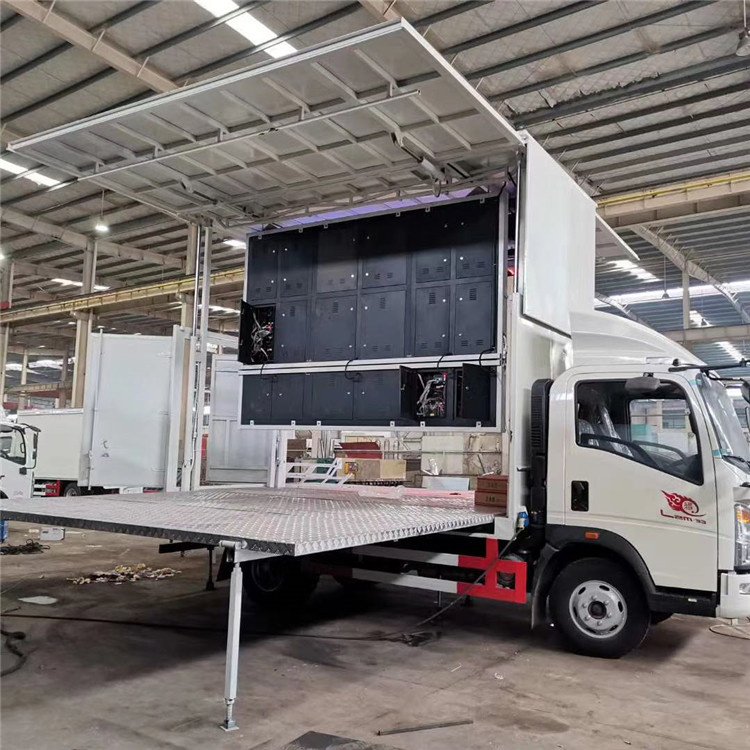

Variety of stage design options: one side stage hydraulically open, both sides hydraulically open, three sides stage hydraulic open, van roof hydraulically raised with stage open.
Special anti-slip stage floor for safety.

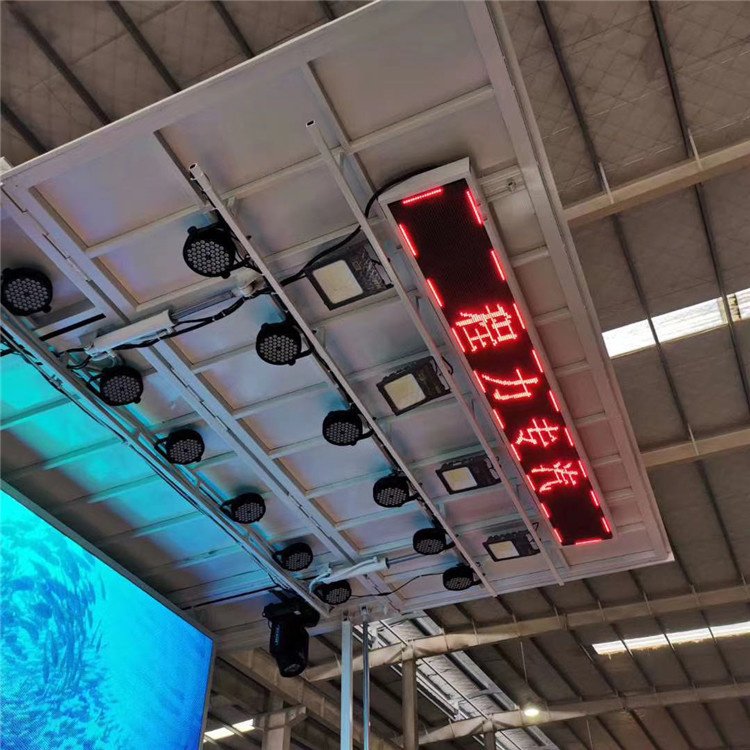

Equipped with sound, light truss, stepladder, and other customizable features such as LED billboard and extra extension stage.
Suitable for corporate events, product demonstrations, festivals, concerts, fashion parades, schools, and parties.
Specifications：
| Item | Unit | Parameter |
|---|---|---|
| Vehicle model | SINOTRUCK HOWO 4x2 LHD mobile stage truck | |
| Chassis model | ZZ1047F3315E145 | |
| Overall dimensions | mm | 5995×2220×2950 |
| Body internal dimensions | mm | 4000×2050×2050 |
| Actual load | kg | 5000 |
| Mass in working order | kg | Appro×2600 |
| Wheel base | mm | 3280 |
| F/R track base | mm | 1520/1490 |
| Approach/departure angle | ° | 19/17 |
| Exhaust/kw | ml/kw | 2672/85 |
| Max speed | km/h | 95 |
| Fuel type | Diesel | |
| Engine | YN27CRE10 | |
| Number of axles | 2 | |
| Traction system | 4x2 | |
| Number of tires | 6+1 | |
| Tire specification | 7.00R16 | |
| Transmission | 6-speed with overdrive | |
| Operation control system | Electrically hydraulic control | |
| Electric system | v | 24v |
| Pax allowed in cab | 2 | |
| Configuration | 1> The top and 2 sides of van box can open and hydraulic lift to form the top stage | |
| Engine | Kunming Yunnei diesel engine, 116hp | |
| Production cycle | days | 20 working days after deposit |
| Color & logo | Per customer requirement |

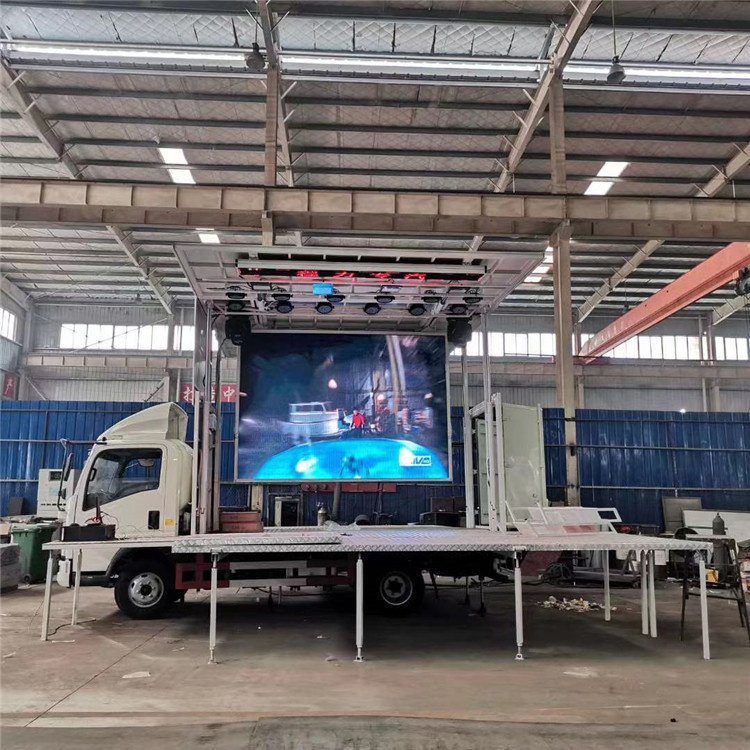

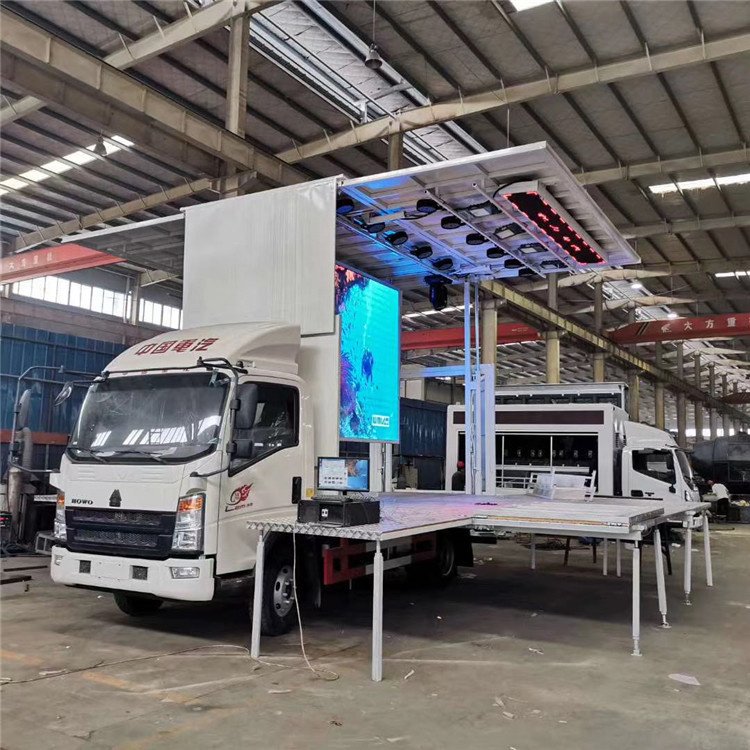

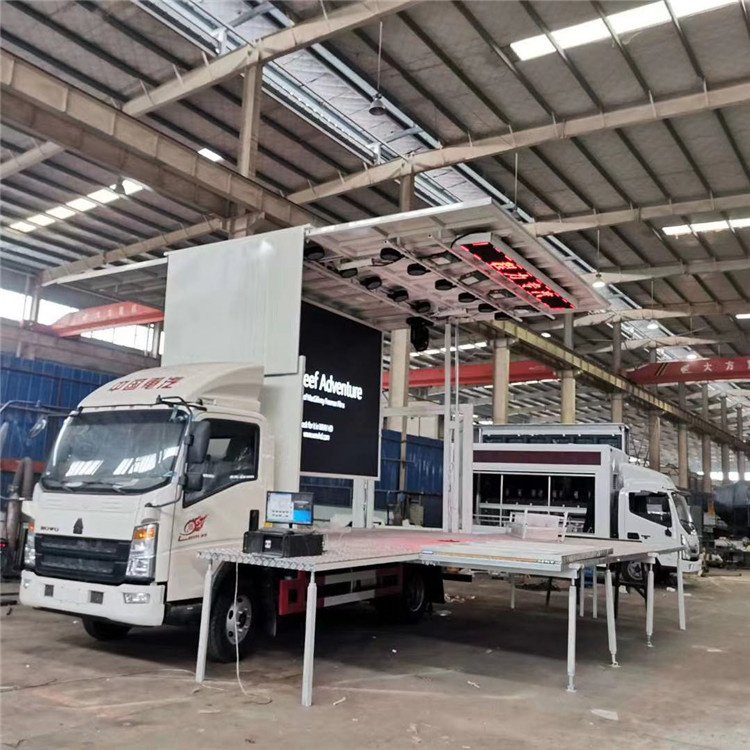

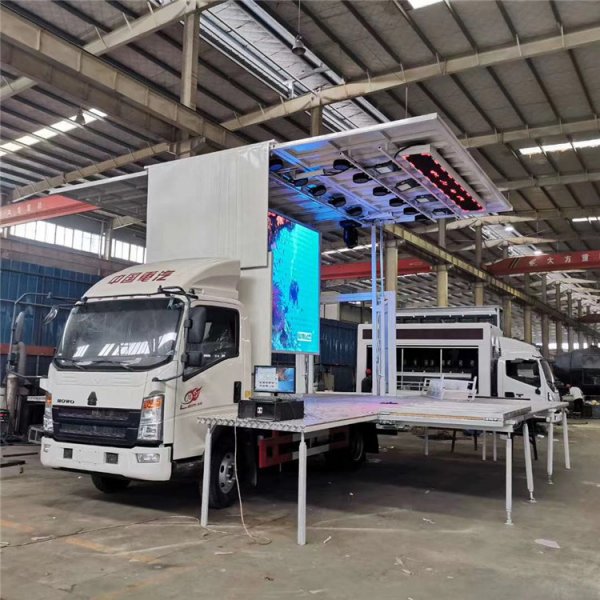

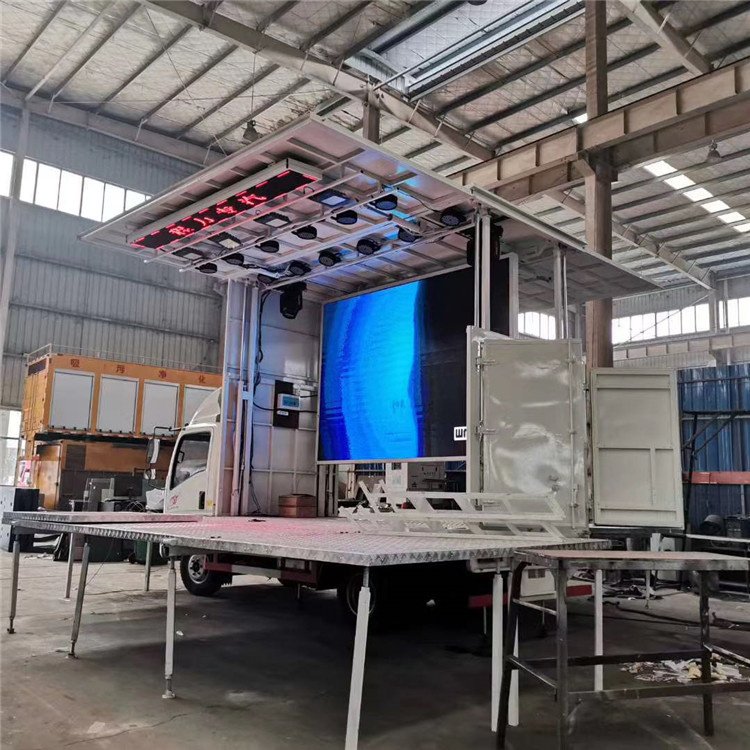

This mobile stage truck is designed to provide instant stage solutions for various events. It features hydraulic stage openings, a foldable stage, and an LED screen, making it ideal for corporate events, concerts, and festivals. The truck offers customizable options to fit your specific needs.
Contact us for pricing and configuration options！
Contact: william
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
