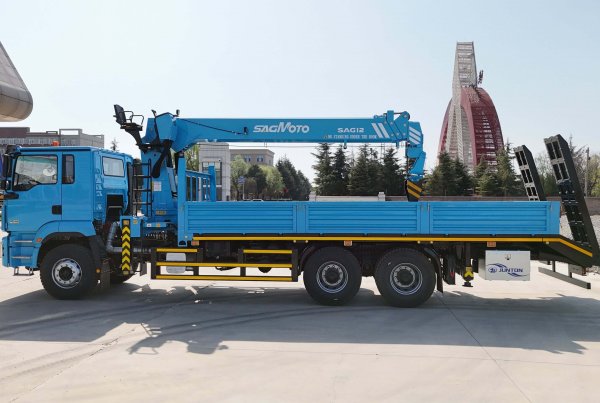

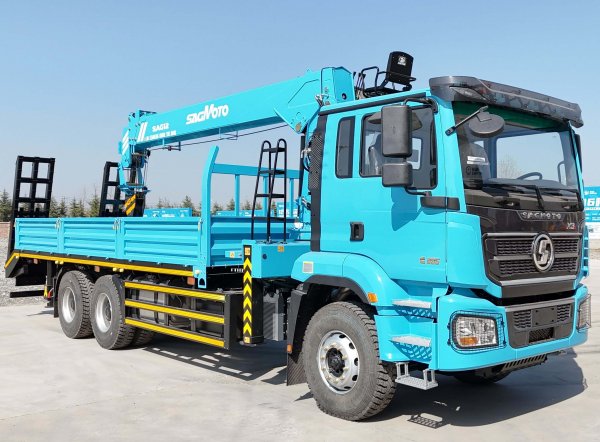

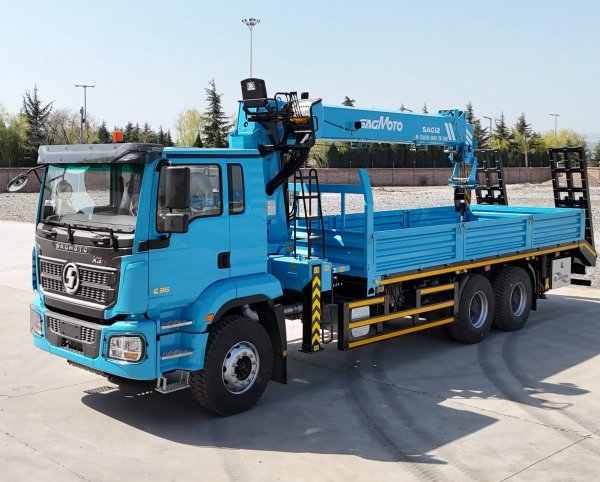

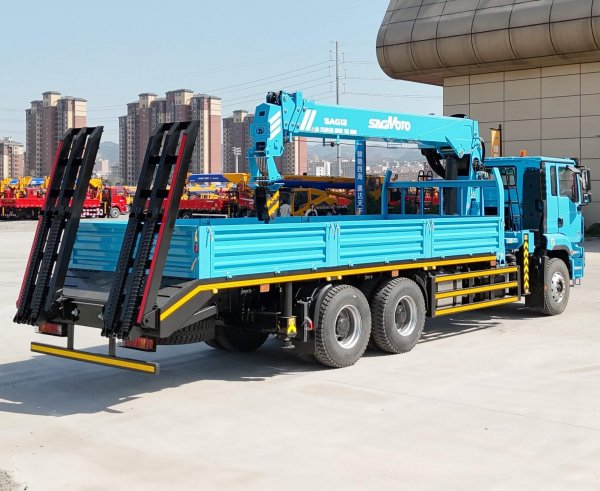

SHACMAN SAGMOTO X3s 6X4 420HP Truck Mounted-Crane
No.: Cynthia74
Vehicle Type: Mounted Crane Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: Cynthia Sun
Cel: 8617669717525
Whatsapp: 8613396363431
E-mail: sales2@chinatruck.cc
FREE GET QUOTE
Details

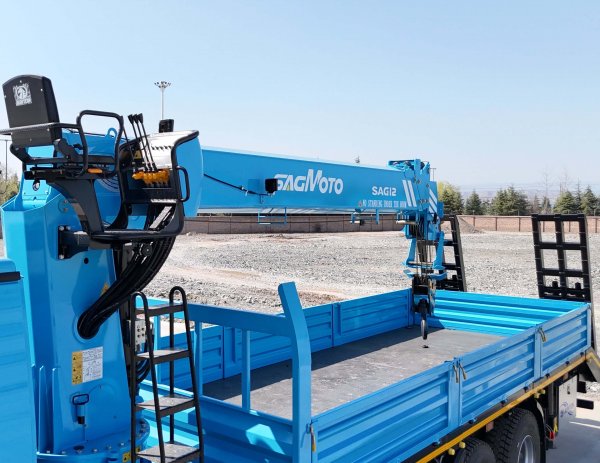

| Crane Performance | |
| Item | JSQ3005GF-II |
| LXWxH | 10800X2550x3920mm |
| Cargo body | 7000x2450x600mm |
| Curb weight | 19460 kg |
| Crane Weight | 4850 kg |
| Max. Rated Lifting Weight | 12000 kg |
| Basic Boom Length | 5.65 m |
| Full-extension Boom Length | 19.3 m |
| Max. Lifting Height | 20.3 m |
| Maximum Lifting Torque of Basic Boom | 330 KN.m |
| Boom Sections | 5 |
| Boom Structure | stacked hexagon |
| Expansion type | Double telescopic cylinder |
| Max outrigger span (front cross) | 7.6 m |
| Max.Winch Speed | 80m/min |
| Max slewing speed | 2 r/min |
| Full Extension Time of Boom | 27s |
| Lift Time of Boom | 22s |
| Chassis performance | |
| Type | X3s 6x4 |
| Model | SX5255JSQM3M42J5240 |
| GVW | ≤40T |
| Wheelbase | 5175+1400mm |
| Engine model | ISM11E5 420 |
| Engine emission | Euro 5 |
| Engine displacement | 10.8L |
| Gearbox | 12JSD200T-B+QH50 |
| Front axle | HDZ 7.5t |
| Rear axle | HDZ 16T Double stage dual axle/4.262 |
| suspension | Front and rear multiple leaf springs, four main springs +four U-bolts |
| Frame | 850X300/8+5+8 Three Layers |
| Fuel tank | 400L AI |
| Wheels and tires | 315/80R22.5 |
Cab | X3s dedicated cab, airbag cushion-absorbing driver seat,four-point mechanical suspension, LED headlights,daytime running lights, multi- Cab function steering wheel, air conditioner, power windows,5-inch LCD combined instrument, bluetooth player (with 5-inch screen), manual flip, central lock (1 central key +2 mechanical keys) |
Others | Fleetguard air filter,ABS,180Ah battery,32T jack, 8Kg fire extinguisher, circular curtain,radiator protective grid, oil pan protective grid, Others headlight protective grid, rear taillight protective grid |
