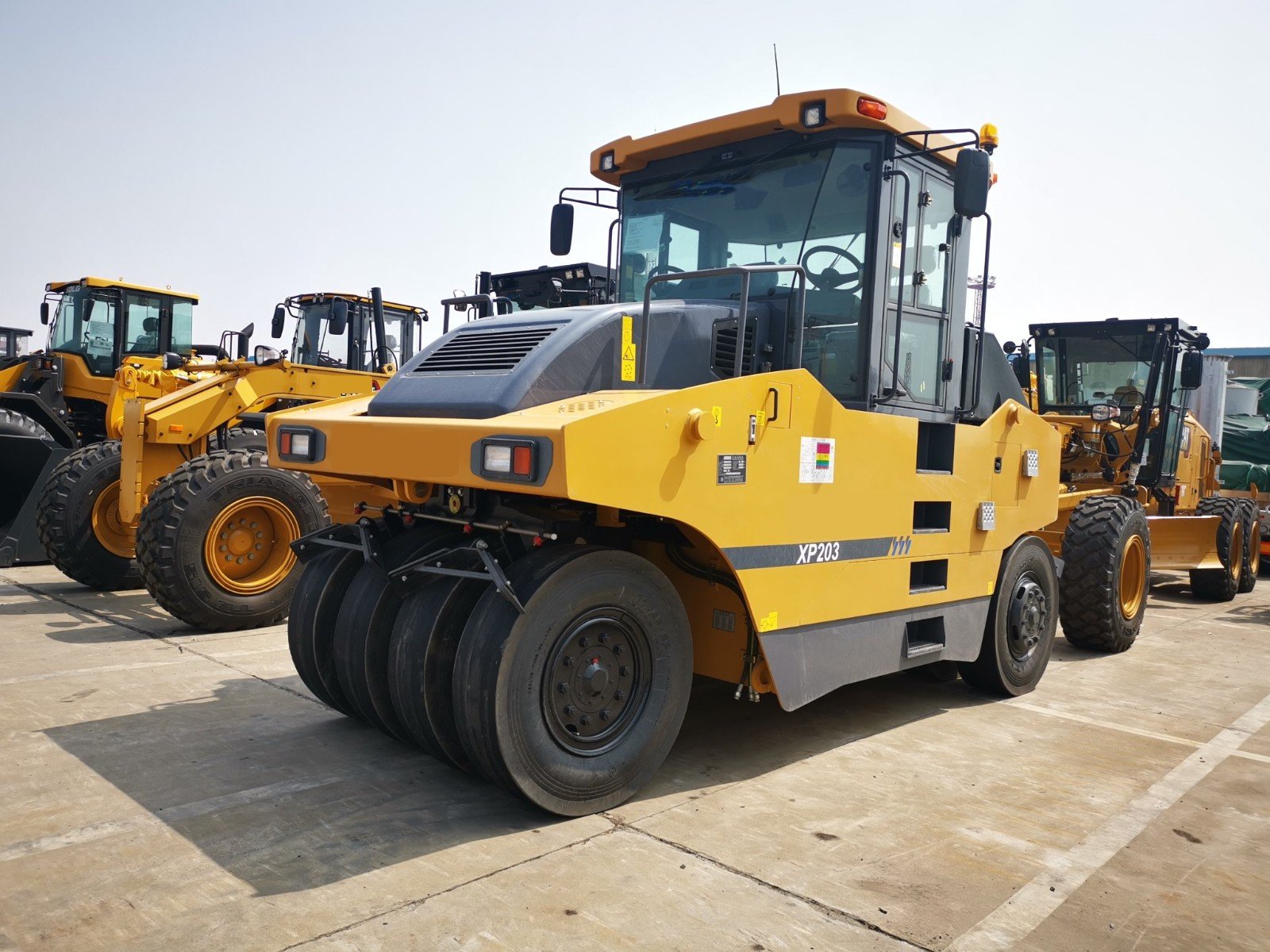

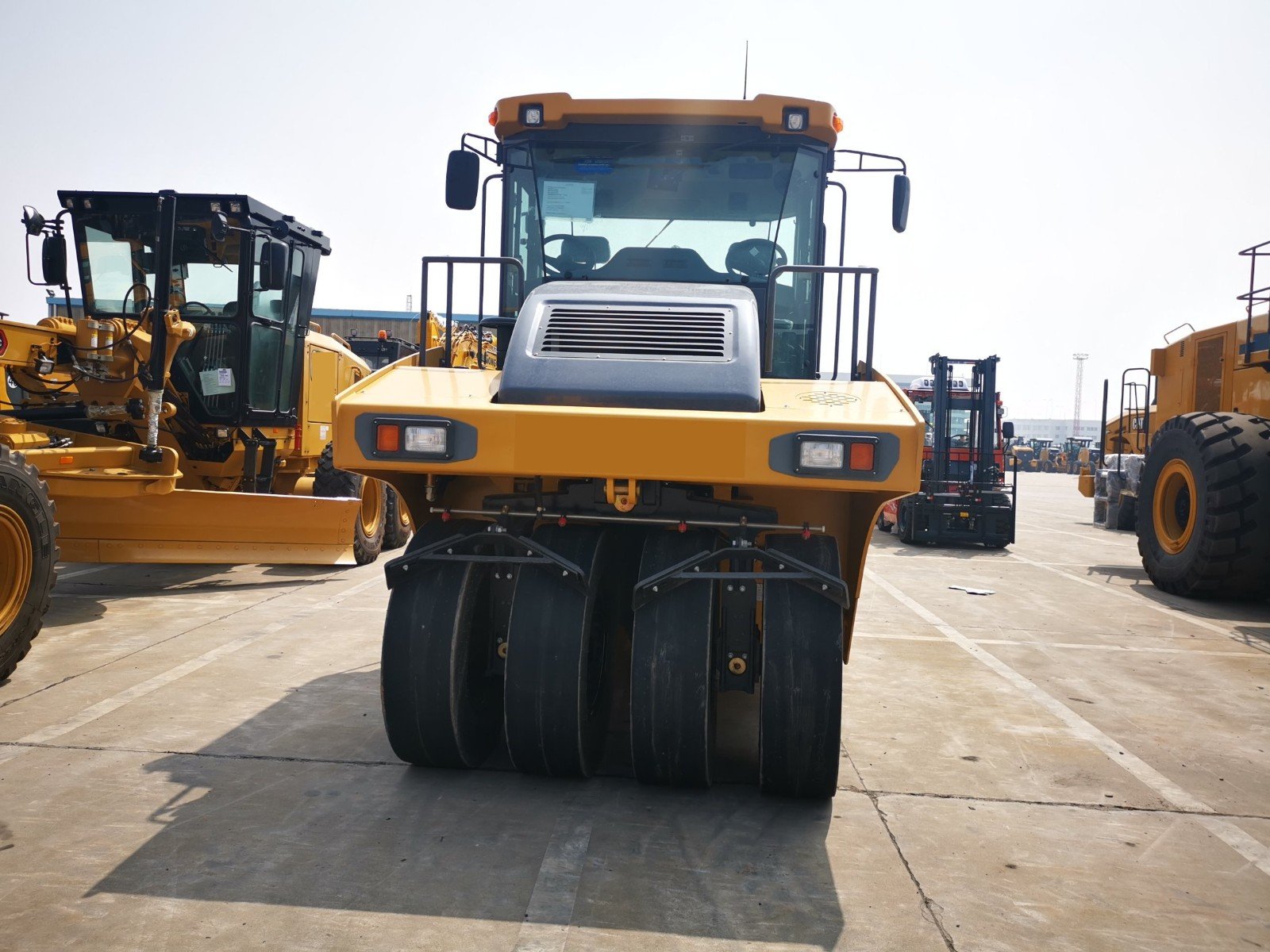

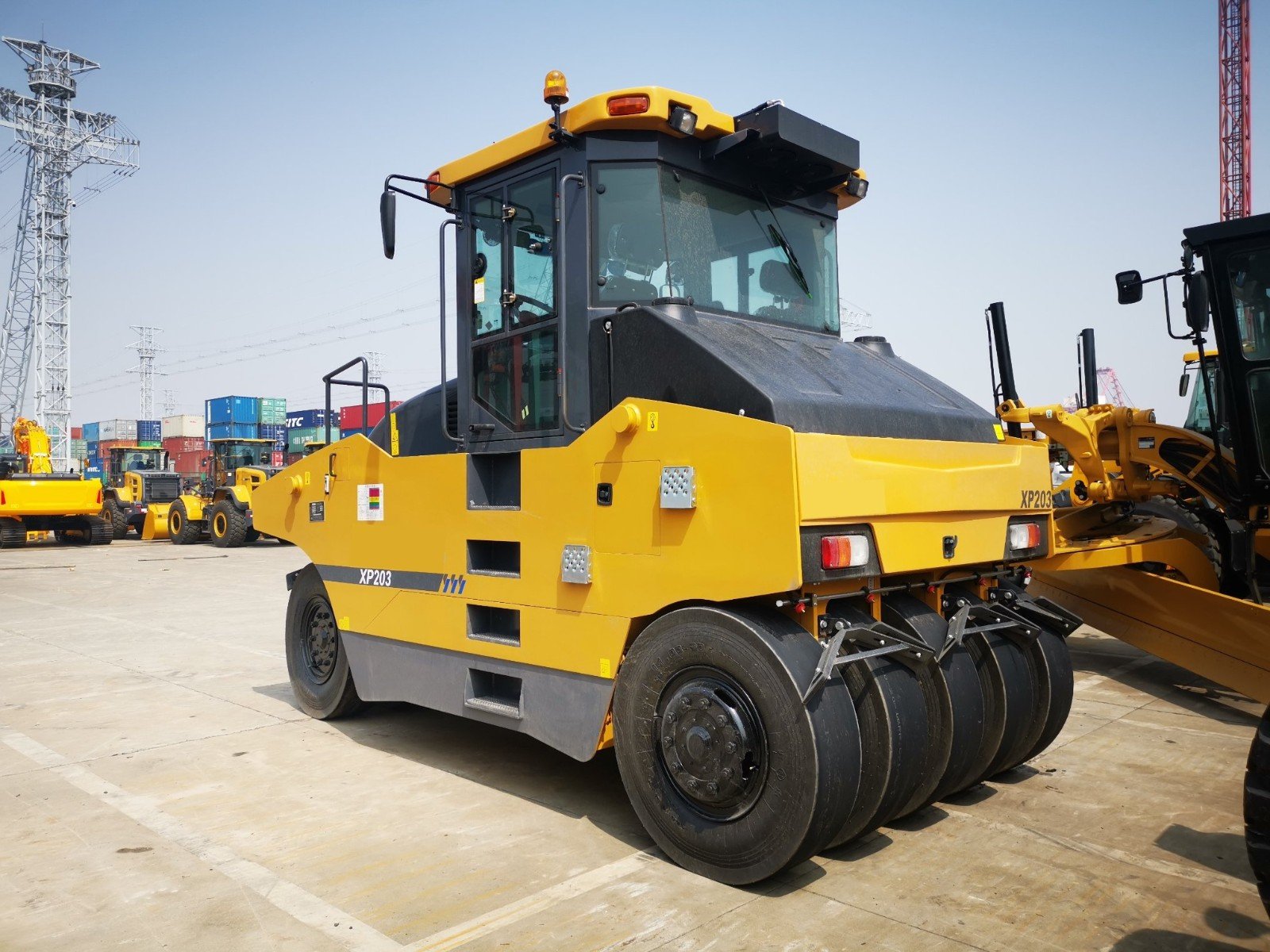

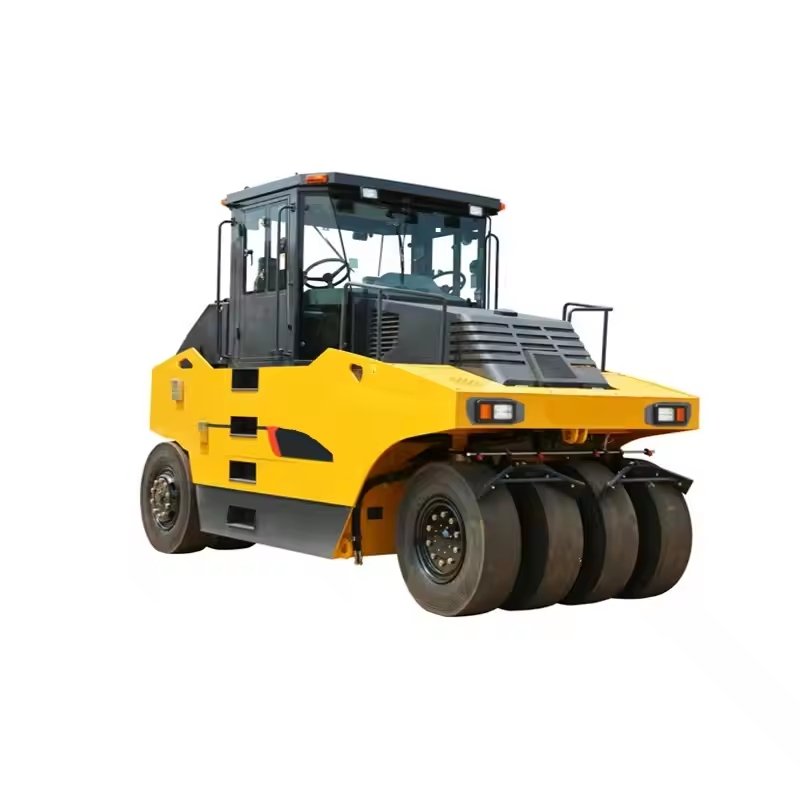

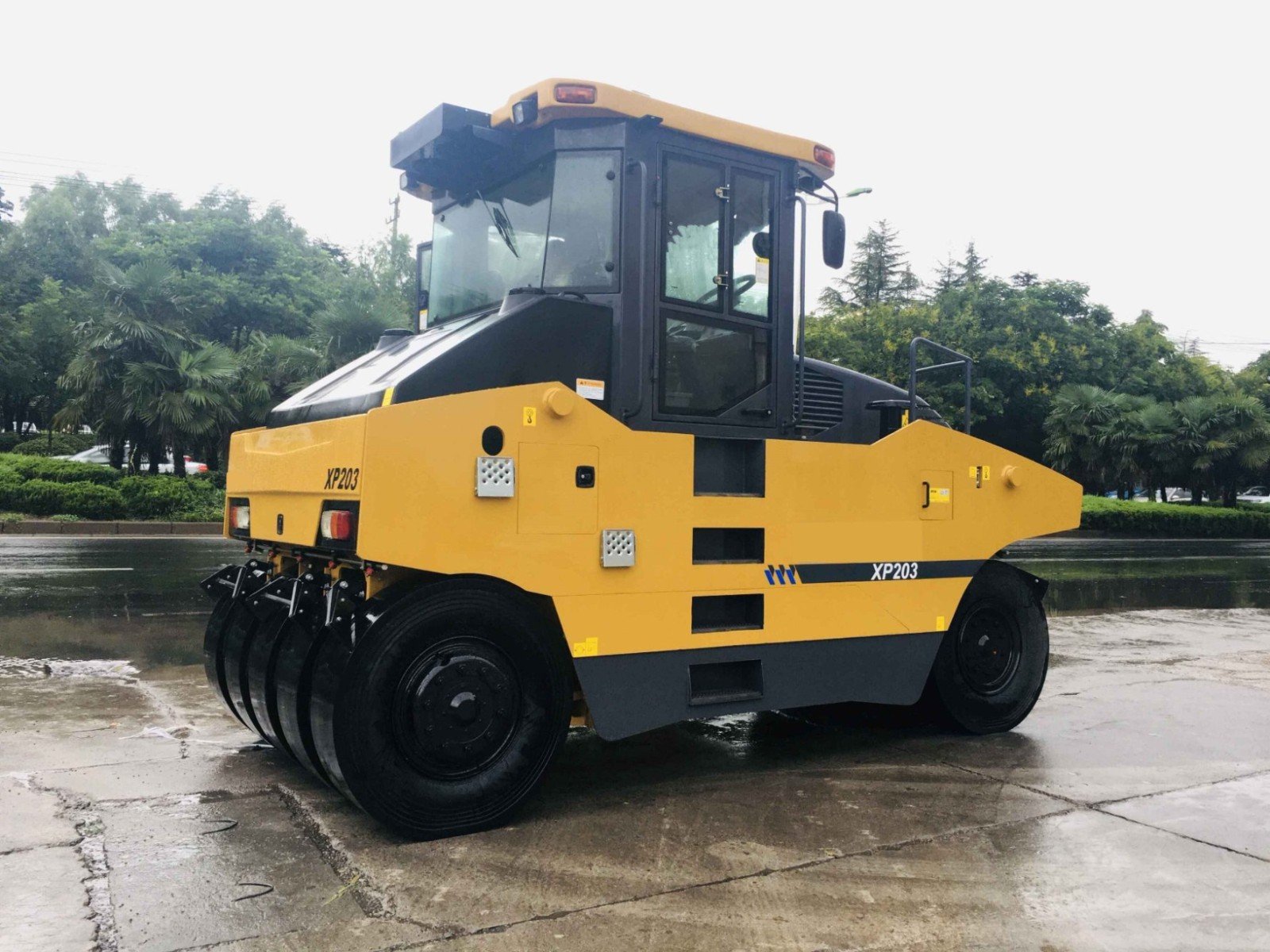

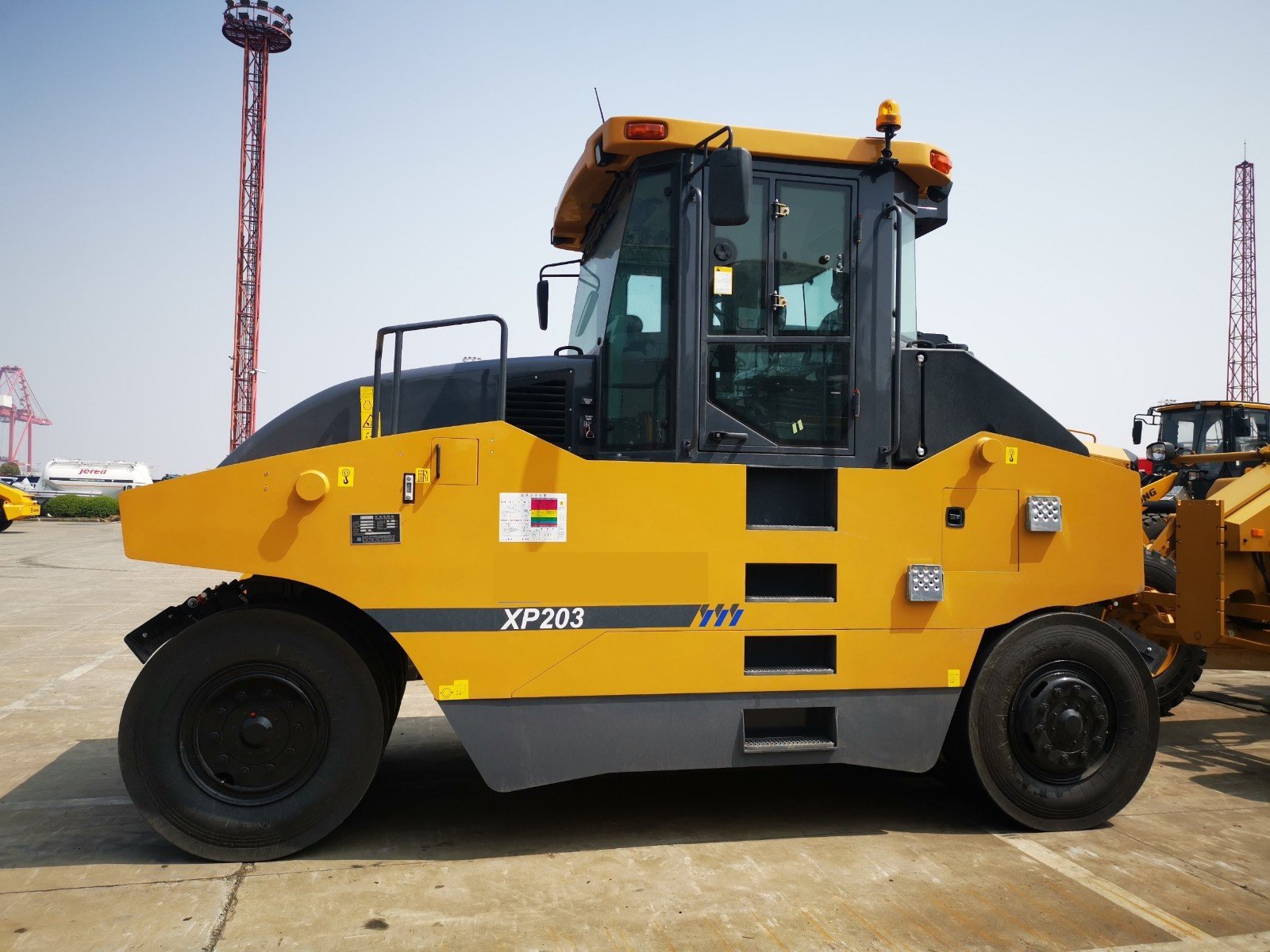

Road Construction Machine XP203 Static Pneumatic Hydraulic Vibratory Tire Road Roller Compactor Specifications

The XP203 Road Roller Compactor is a high-performance machine designed for road construction, compaction, and maintenance tasks. It offers robust performance, versatility, and reliability, making it ideal for various infrastructure projects.

Key Specifications

• Model: XP203

• Min. Working Weight: 11740 kg

• Max. Working Weight: 20000 kg

• Ground Pressure: kPa (varies with weight distribution)

• Travel Speed: 200-400 m/min

• Speed I: 4.2 km/h

• Speed II: 8.2 km/h

• Speed III: 17.4 km/h

• Reverse Speed I: 4.17 km/h

• Reverse Speed II: 8.2 km/h

• Theoretical Gradeability: 20%

• Min. Turning External Radius: 7330 mm

• Min. Ground Clearance: 250 mm

• Compaction Width: 2250 mm

• Roller Overlap Amount: 45 mm

• Tyre Specification: 11.00-20-16PR

• Tyre Amount: Front 4, Rear 5

Engine Specifications

• Engine Model: YC4A125Z

• Type: Water cooling, pressurizing

• Rated Power: 92 kW @ 2200 r/min

• Engine Oil Consumption: ≤230 g.kW/h

Fluid Capacities

• Hydraulic Oil Tank Capacity: 60 L

• Diesel Oil Tank Capacity: 150 L

Dimensions

• Overall Length: 4770 mm

• Overall Width: 2250 mm

• Overall Height: 3285 mm




•

•

•

•

•

•

•

•

Applications

• Road Construction: Ideal for compacting road bases and surfaces.

• Infrastructure Projects: Efficient in compaction tasks for highways, airports, and other large-scale projects.

• Landscaping: Suitable for compacting soil and gravel in landscaping projects.

Contact Us

Interested in this model? Contact us for pricing and configuration options.
