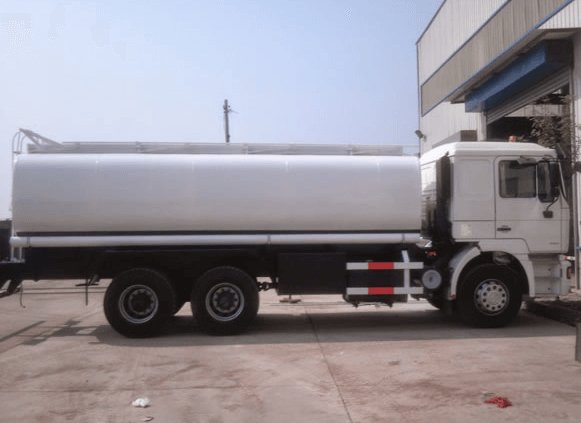

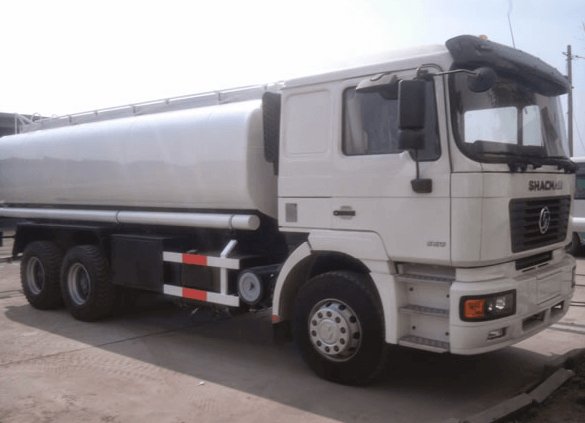

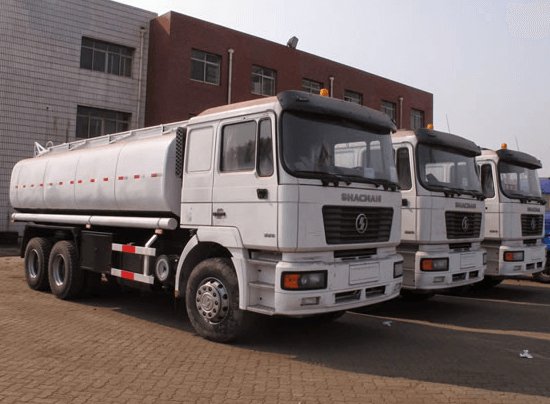

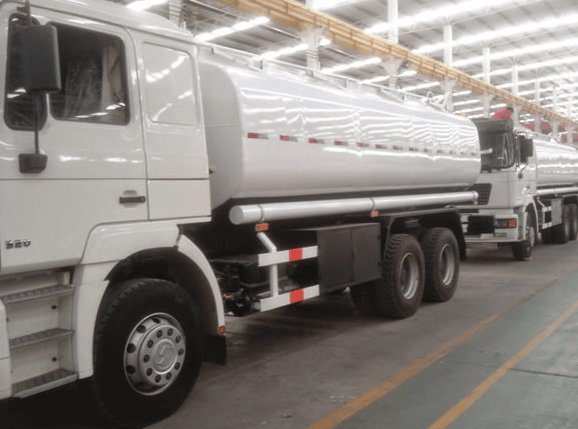

Hot sale SHACMAN 6X4 340HP 20m3 Fuel Tank Truck
No.: Cynthia76
Vehicle Type: Fuel Tank Truck
Brand Name: SHACMAN SAGMOTO
Person in charge: Cynthia Sun
Cel: 8617669717525
Whatsapp: 8613396363431
E-mail: sales2@chinatruck.cc
FREE GET QUOTE
Details
| Max. Speed (km/h) | 92 |
| Drive System | 6 × 4 |
| Overall Dimensions | 9719 × 2500 × 3400 |
| Tanker Capacity | 20 CBM |
| Tanker Form | single warehouse, or at buyer’s option |
| Others | end socket: 6 mm; barrel: 6 mm-Q235, with pump |
| Tank Port Number | one or two |
| Curb Weight (kg) | 11500 |
| Total Mass (kg) | 25000 |
| Wheel Base (mm) | 4325 plus 1350 |
| Wheel Track (mm) (F/R) | 1939 / 1800 |
| Overhang (mm) (F/R) | 1525 / 2519 |
| Approach / Departure Angle (°) | 16 / 17 |
| Engine | WD615.34 (WEICHAI, Euro II) |
| Horsepower | 340 HP |
| Gearbox | 12JSD160T (FAST GEAR) |
| Clutch | Ф 430 diaphragm type |
| Steering Engine | ZF technology |
| Cab | MAN F2000 lengthened flat roof cabin with A/C and sleeper |
| Front axle | 7.5 tons |
| Rear axle | 2 * 13 ton STR hub reduction axle, final ratio: 5.73 |
| Tire | 11.00R20 / 12.00R20 / 12R22.5 / 315 / 80R22.5 (10+1) |
| Fuel Tank (L) | 380 |
