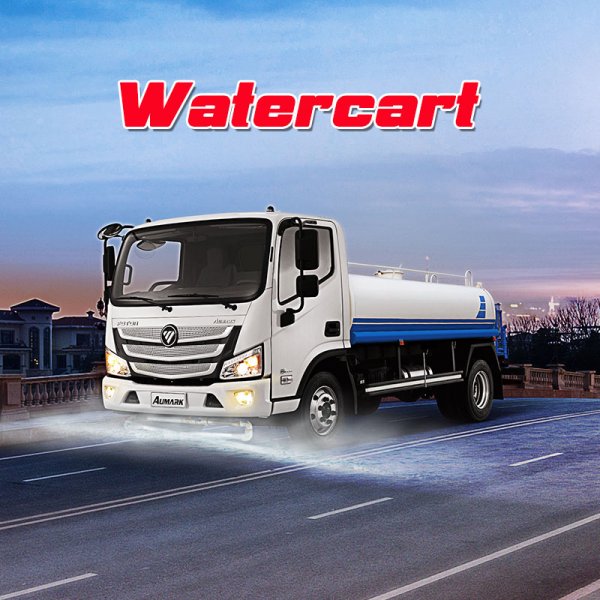

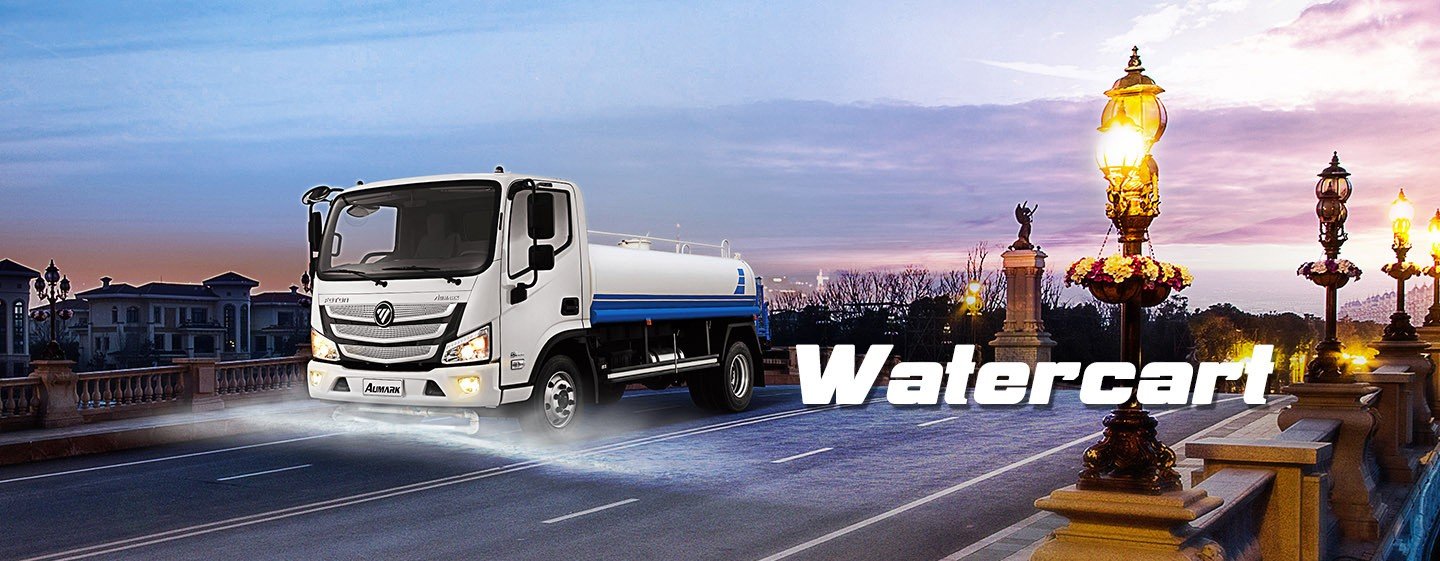

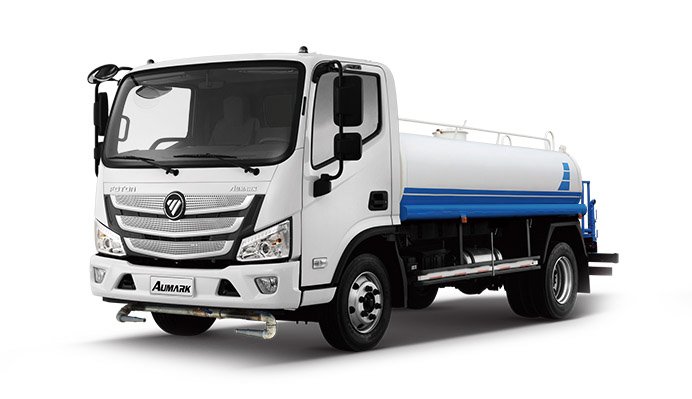

Foton Water Tank Truck 6m³ Capacity Q235 Steel Tank Epoxy Anticorrosion High-Pressure Pump
No.:
Vehicle Type: Water Tank Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
Technical Specifications
Category | Specification |
|---|---|
Tank Volume | 4m³ / 5m³ / 6m³ (configurable) |
Tank Material | Q235 Carbon Steel |
Thickness | 4mm |
Anticorrosion Coating | Epoxy Resin Paint (ISO 12944) |
Water Pump | 65QZ-40/145N |
Flow Rate | 40m³/h @ 1450rpm |
Max Pressure | 0.5MPa |
Working Parts | Front/Rear/Side Sprinklers + Water Cannon |
Key Features
Feature | Functionality |
|---|---|
Epoxy-Coated Tank | Resists chemical corrosion & rust |
High-Pressure Pump | Rapid water deployment (40m³/h) |
Multi-Directional Sprinklers | 360° coverage (front/rear/side) |
Water Cannon | 35m range for firefighting |
Rear Working Platform | Safe access for maintenance |
Standard Equipment
Component | Quantity |
|---|---|
Front Sprinkler Nozzles | 3 |
Rear Sprinkler Nozzles | 2 |
Side Sprinkler Bars | 2 (left/right) |
Water Cannon | 1 (manual control) |
Control Valves | 4 (independent zones) |
Performance Metrics
Parameter | Value |
|---|---|
Tank Filling Time | <10 mins (6m³) |
Sprinkling Width | ≥14m |
Water Cannon Range | ≥35m |
Suction Depth | >7m |
Applications
Industry | Use Case |
|---|---|
Municipal Services | Street cleaning, tree irrigation |
Construction Sites | Dust suppression |
Firefighting Support | Auxiliary water supply |
Agriculture | Crop irrigation |
After-Sales Support
Service | Terms |
|---|---|
Warranty | 5-year tank coating / 3-year chassis |
Global Service Centers | 120+ certified workshops |
Spare Parts | 24-hour global dispatch |
Contact Sales
Role | Contact Details |
|---|---|
Global Sales Manager | William |
Phone/WhatsApp | +86 186 6977 8647 |
Sales22@chinatruck.cc |
