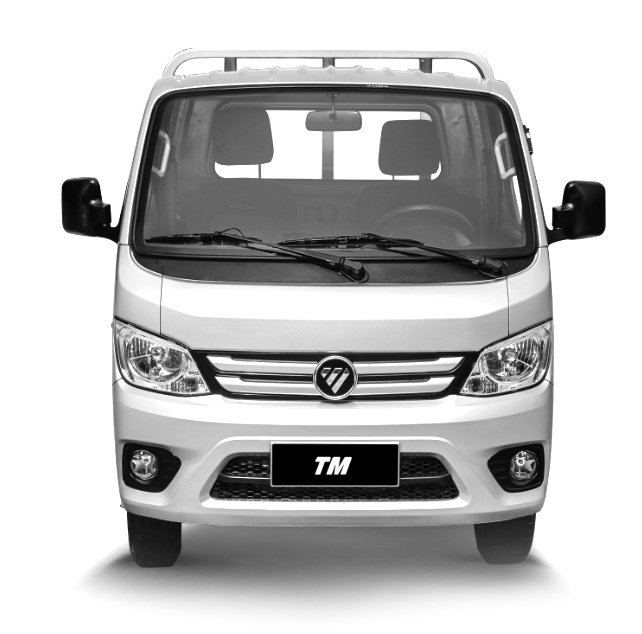

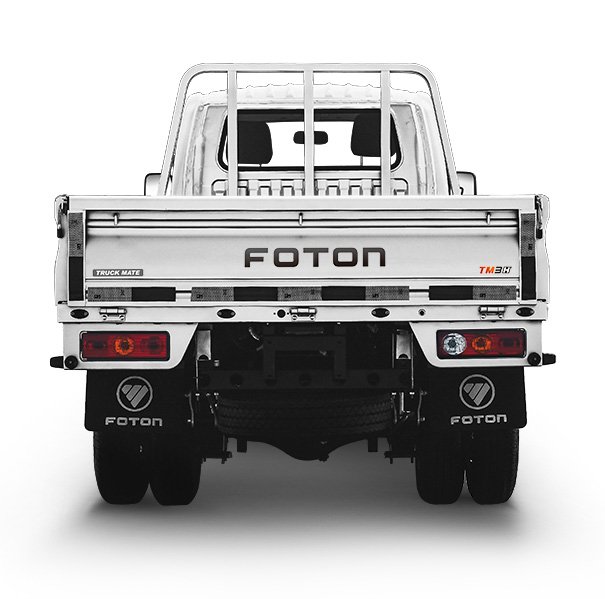

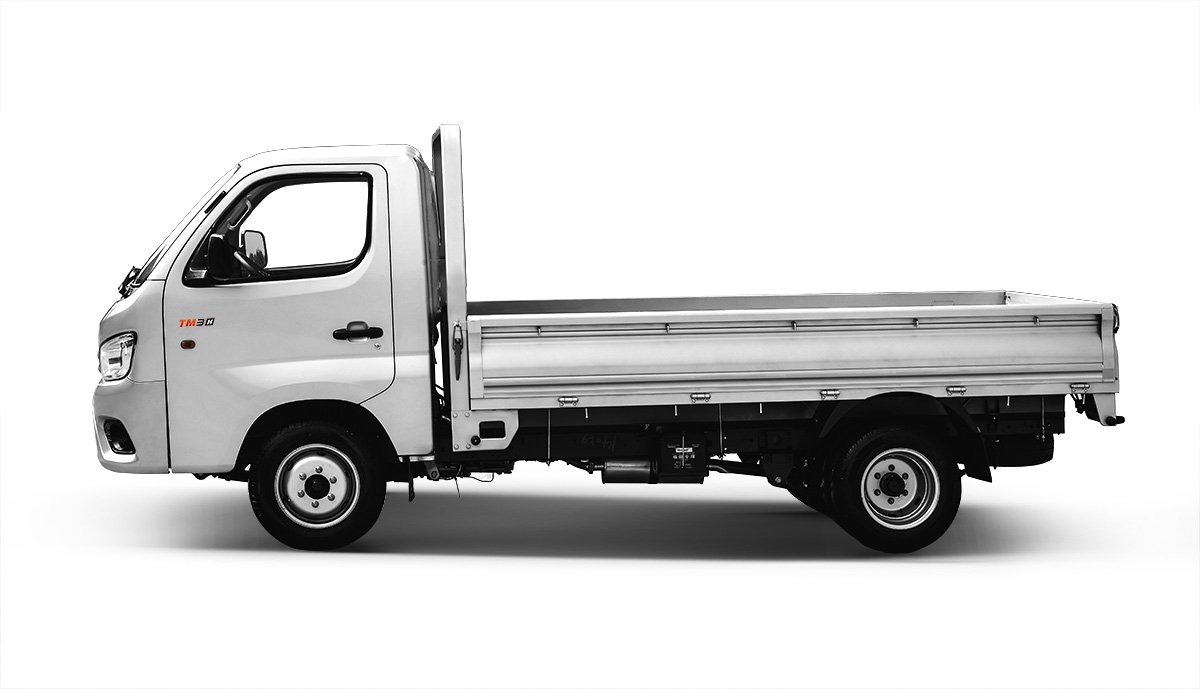

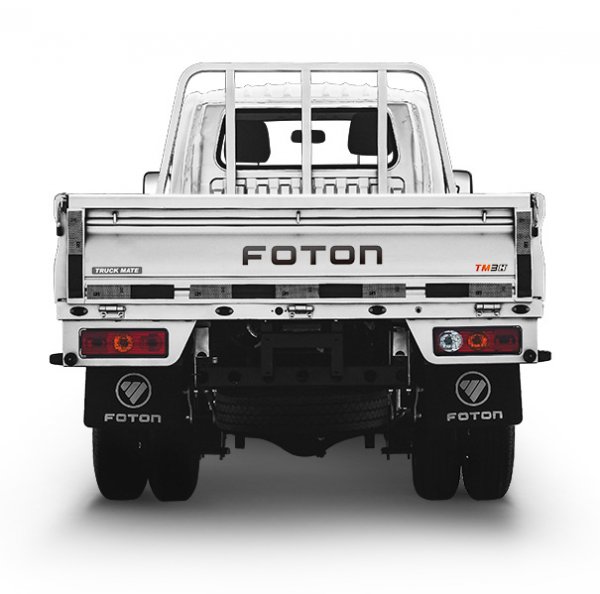

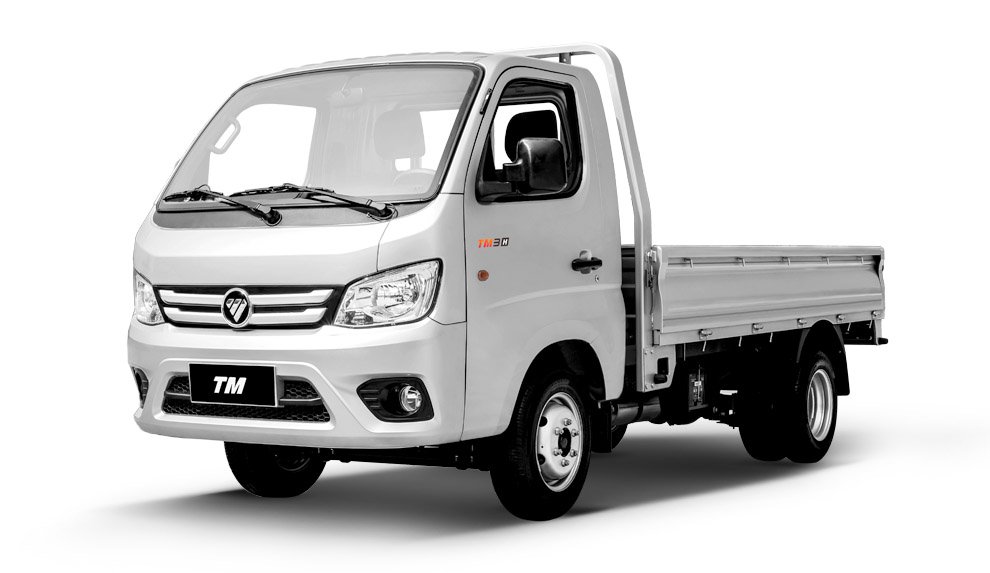

FOTON TM3 SIMPLE CABIN TRUCK 15L ENGINE 25-3T PAYLOAD
No.:
Vehicle Type: mini flat truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
The Foton TM3 simple cabin truck delivers 82kW power from its 1.5L engine with 142Nm torque, supporting 2.5-3T payloads. The 1520mm wide cab (tiltable) and 3050×1560×360mm cargo area make it ideal for last-mile deliveries. Features include ABS brakes, electric power steering, and 175/R14 tires.
Technical Specifications
Category | Specifications |
|---|---|
Engine | DAM15L 1.5L Diesel |
Power | 82kW @ 3600rpm |
Torque | 142Nm @ 1800rpm |
Transmission | DAT18R 5-speed Manual |
GVW | 3,330kg (1,800kg payload) |
Cabin Width | 1,520mm (Single/Double row) |
Cargo Area | 3,050×1,560×360mm |
Brakes | Hydraulic + ABS |
Tires | 175/R14 (4+1) |
Fuel Tank | 50L |
Key Features
Compact Design
1,520mm narrow cab for city maneuverability
3,050mm cargo length
Performance
110km/h maximum speed
≥25% gradeability
Electric power steering
Versatility
Single/Double row cab options
Left/Right hand drive available
Tiltable cab for easy maintenance
Standard Equipment
ABS braking system
12V electrical system
100Ah battery
Central drum parking brake
