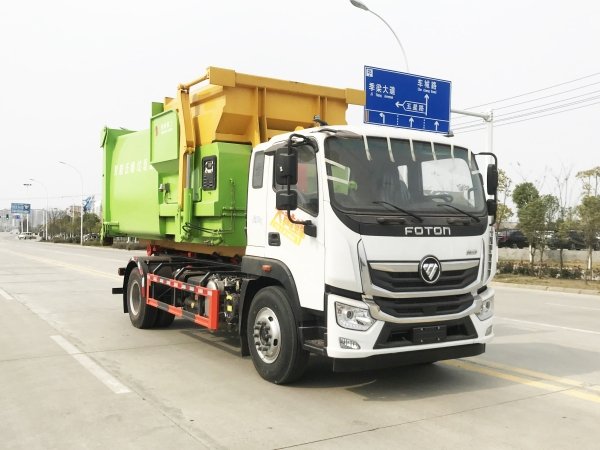

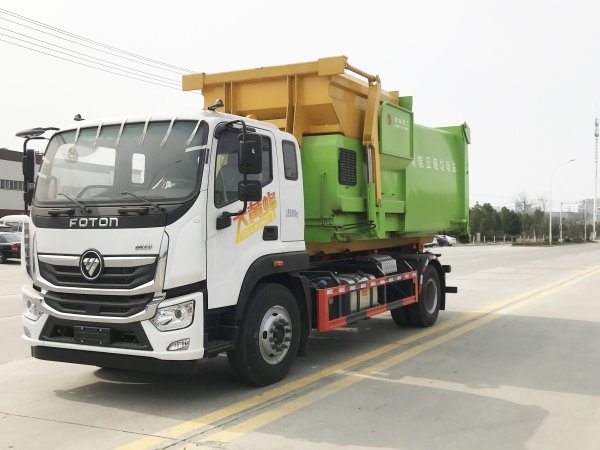

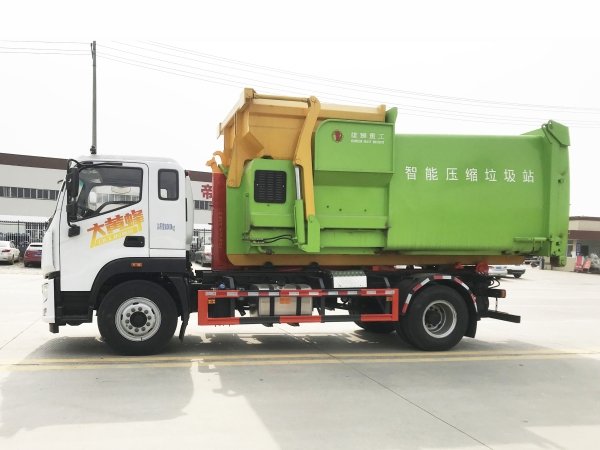

FOTON 4x2 240 HP 16-ton Hydraulic Hook Lift Recycling Garbage Truck with 18 m³ Bin for Sale
No.:
Vehicle Type: Water Tank Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
FOTON 4x2 240 HP 16-ton Hydraulic Hook Lift Recycling Garbage Truck with 18 m³ Bin for Sale
Key Features

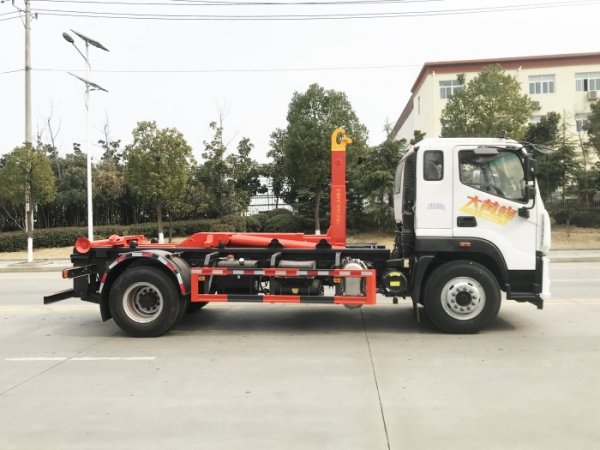

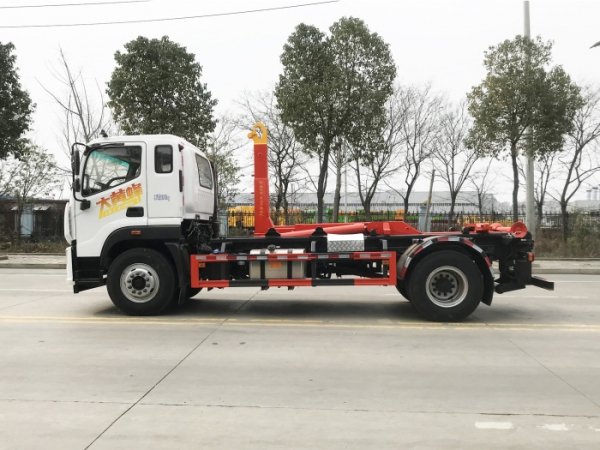

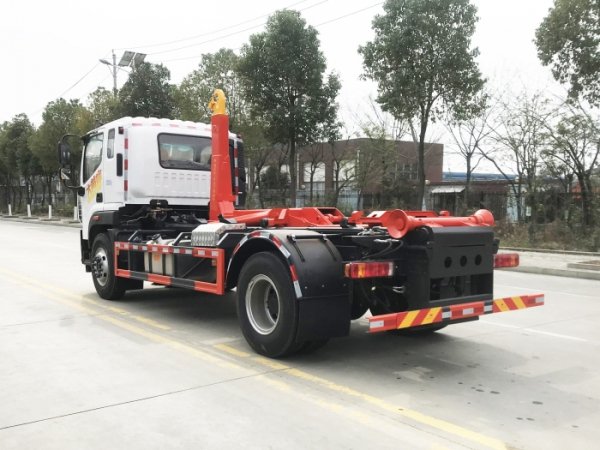

16-ton rated hook-lift system lifts 18 m³ containers in <30 s with wireless remote and cab joystick.
Reinforced high-strength steel subframe, dual-acting cylinders and anti-tilt stabilizers for safe heavy loads.
240 HP Euro III diesel + 9-speed manual, 4×2 drive for urban agility and 90 km/h highway speeds.
Dual-safety interlocks: hydraulic + mechanical locks, over-load & over-pressure relief valves, emergency stop.
Custom paint, container type and branding; ISO9000 & CCC certified.
Global spare-parts network, 1-year/100 000 km warranty on engine, gearbox and axles.
Specifications
| Item | Specification |
|---|---|
| Chassis | FOTON 4×2 |
| Engine | 240 HP Euro III diesel, 7.1 L |
| Transmission | 9-speed manual |
| Rated Hook-Lift Capacity | 16 000 kg |
| Garbage Container Volume | 18 m³ (detachable) |
| Hook Arm Cycle Time | ≤30 s |
| Max Lifting Angle | 50° |
| GVW | 25 000 kg |
| Curb Weight | 9 200 kg |
| Wheelbase | 5 300 mm |
| Tires | 11.00R20 (6+1) |
| Approach / Departure | 18° / 12° |
| Fuel Tank | 300 L aluminum |
| Controls | Manual joystick + wireless remote |
| Warranty | 1 year / 100 000 km |
| Production Capacity | 50 units/month |
Contact us for pricing and configuration options！
