Foton 12 000 L 170 HP Euro-5 Water Bowser Tanker Truck – Drinking Water Delivery & Road-Sweeping for Sale Product Summary
No.:
Vehicle Type: Water Tank Truck
Brand Name: FOTON
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details

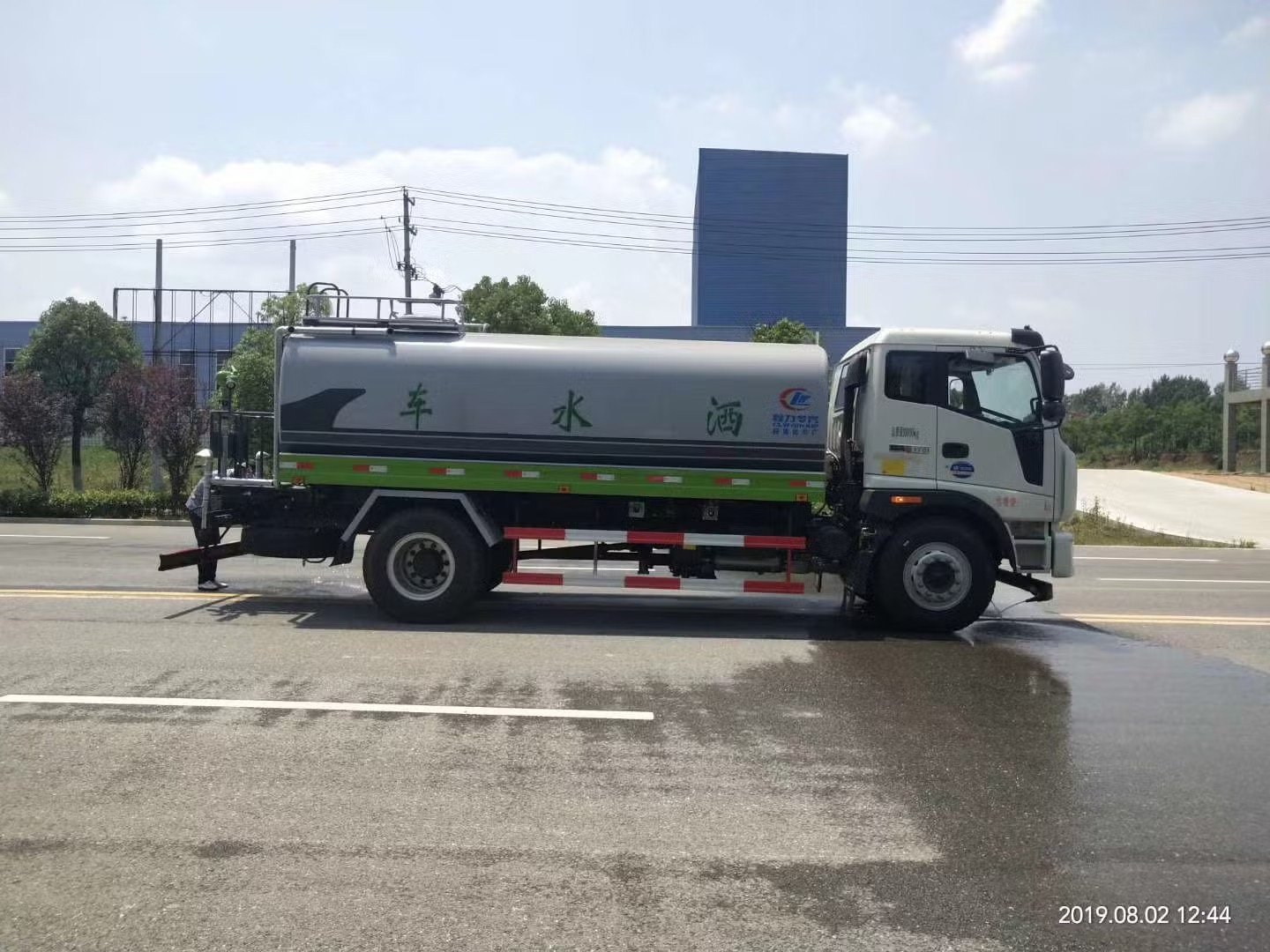

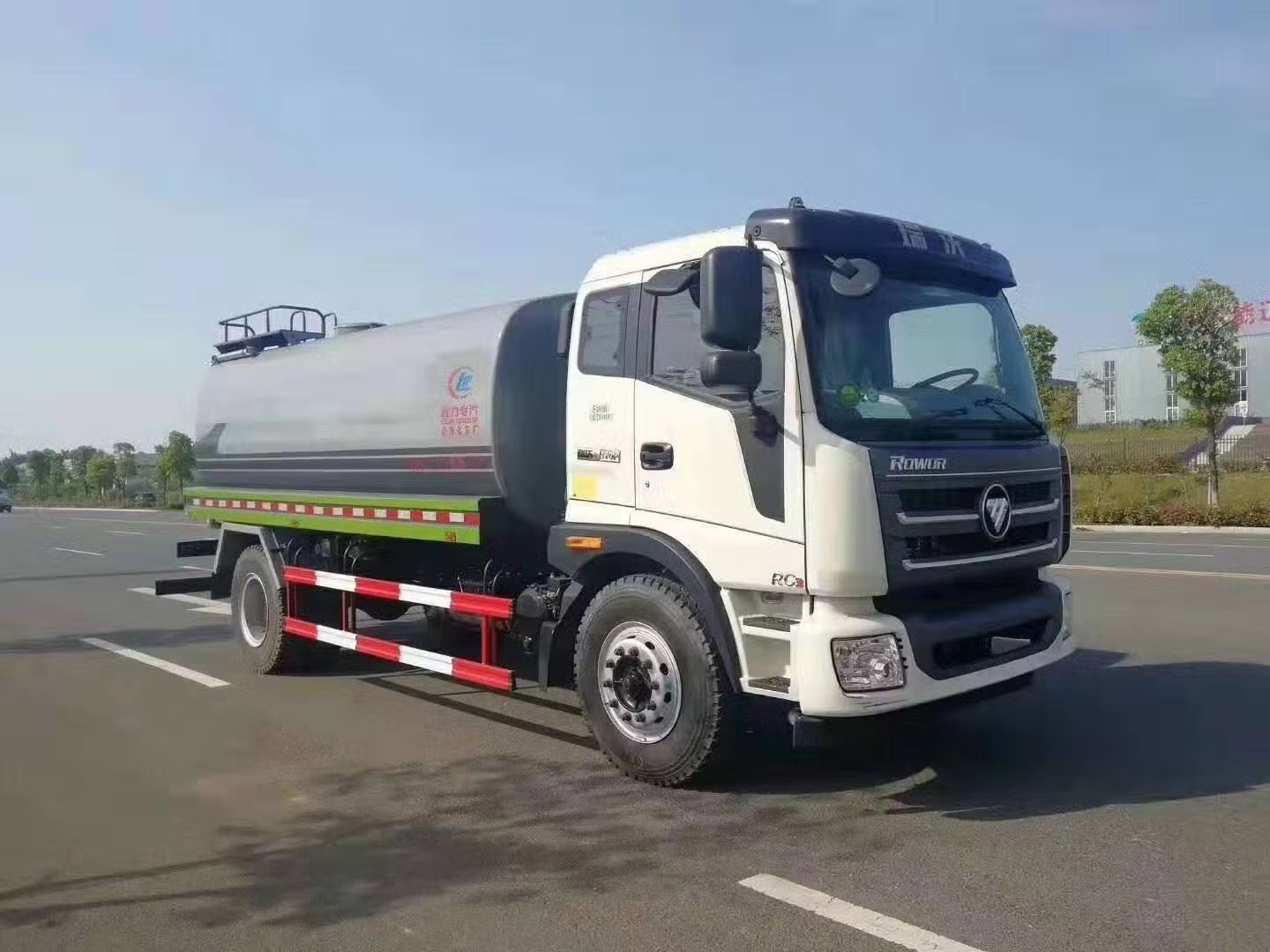

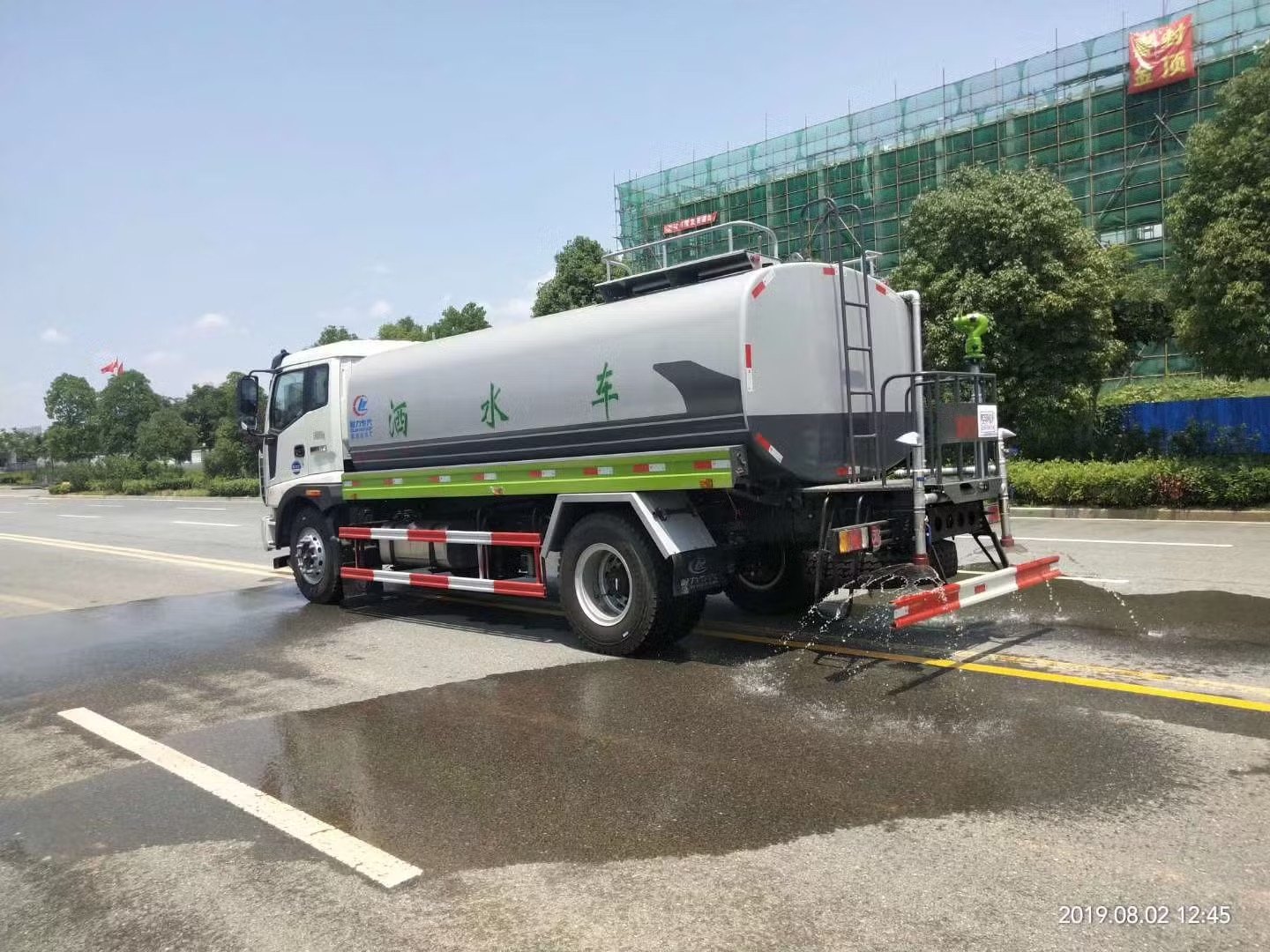

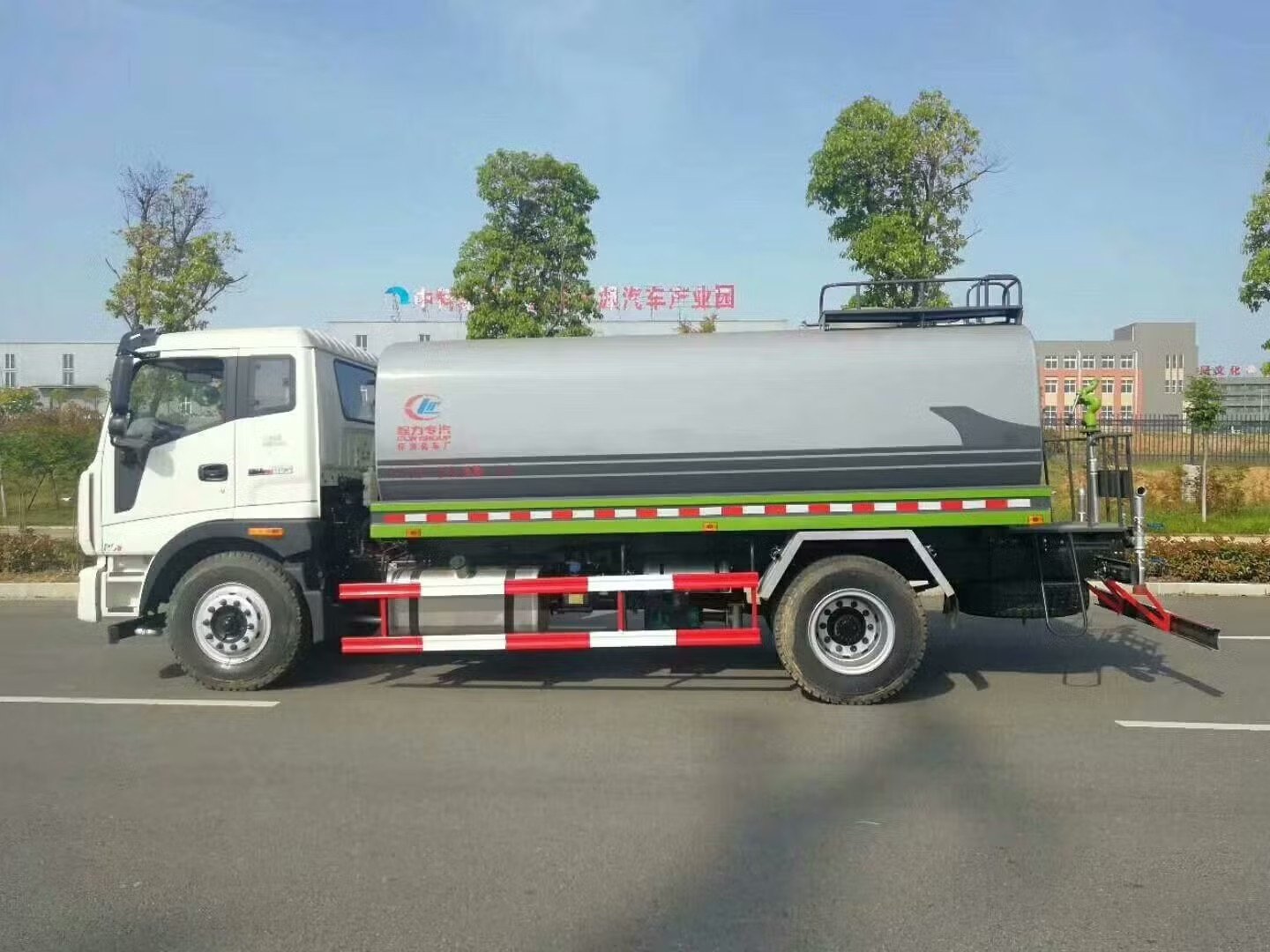

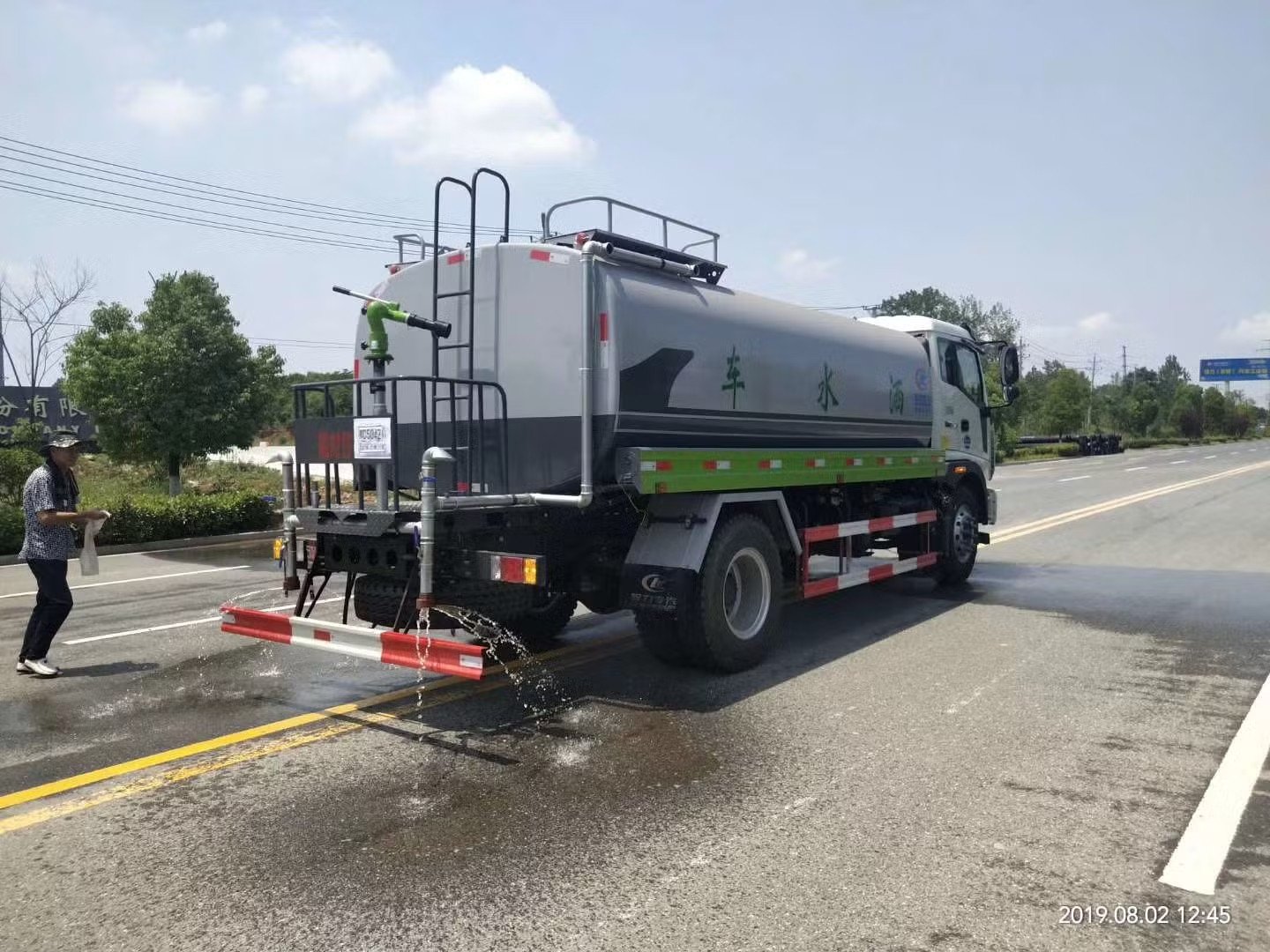

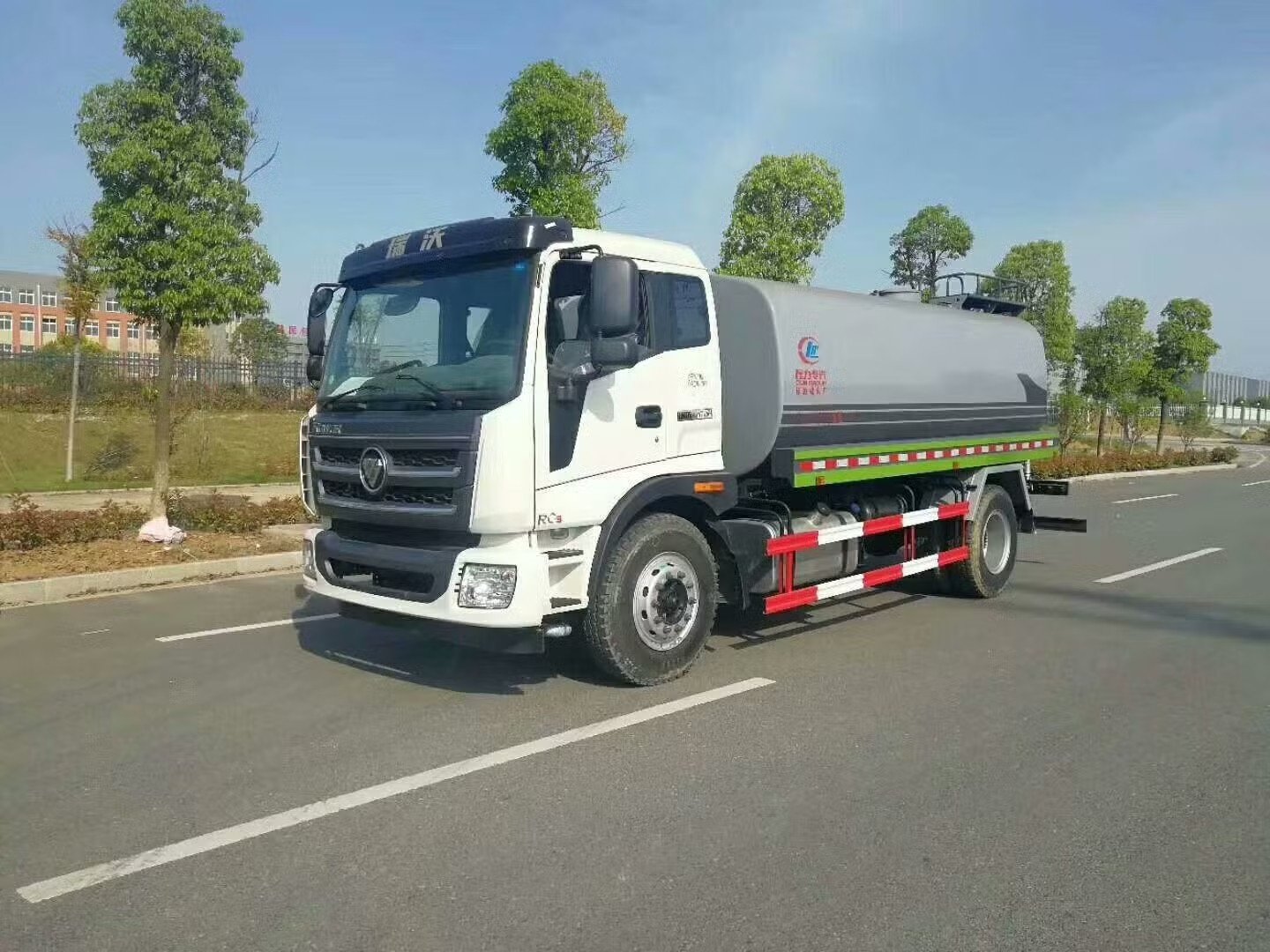

Foton 12 000 L 170 HP Euro-5 Water Bowser Tanker Truck – Drinking Water Delivery & Road-Sweeping for Sale
Key Features
• Large-Capacity Tank – 12 000 L (12 m³) 5 mm Q235 carbon steel, internal food-grade epoxy coating (optional 304 stainless steel)
• Powerful Performance – 170 HP Cummins Euro-5 diesel, 6-speed manual, top speed 90 km/h
• High-Pressure System – 28 m cannon range, 360° rotation, rear work platform with safety rail
• Wide Sprinkle – Front, side & rear nozzles ≥14 m width, quick-swap brass nozzles
• Reliable Pump – China top-brand self-priming, 7 m suction, <15 min fill time
• Robust Chassis – Foton 4×2, 11 t G.V.W., 4.7 m wheelbase, 3 T front / 8 T rear axles, air brakes
• Operator Comfort – One-and-a-half row cab, A/C, radio, left-hand drive
Specifications
复制
| Item | Parameter |
|---|---|
| Overall Dimension | 8 600 × 2 500 × 3 200 mm |
| Wheelbase | 4 700 mm |
| Curb Weight | 6 950 kg |
| Payload (water) | 8 650 kg (≈ 12 000 L) |
| Gross Vehicle Weight | 11 000 kg |
| Front / Rear Axle Load | 3 T / 8 T |
| Engine | Cummins 170 HP (125 kW), Euro-5, 4-cyl diesel |
| Gearbox | 6 fwd + 1 rev |
| Brakes | Air brake, dual circuit, exhaust-valve auxiliary |
| Steering | Power assisted |
| Tyres | 9.00R20, 10 + 1 spare |
| Max Speed | 90 km/h |
| Water Tank | 12 000 L, 5 mm Q235B, food-grade epoxy |
| Tank Dimensions | 4 300 × 2 100 × 1 400 mm (L×W×H) |
| Pump | Local brand, self-priming |
| Suction Height | >7 m |
| Filling Time | <15 min (empty) |
| Sprinkle Width | ≥14 m (front, side, rear) |
| Cannon Range | ≥28 m horizontal |
| Cannon Elevation | –15° to +45° |
| Extras | Self-flow valve, fire coupling, 2 × 20 m hoses |
Optional Upgrades
• 304 stainless-steel potable-water tank
• High-pressure washer (100 bar)
• Rear spray-bar for dust suppression
• Remote-controlled water cannon
• Fog cannon or mist bar
• GPS fleet management & camera system
Typical Applications
• Municipal street & pavement washing
• Drinking water delivery to communities & events
• Construction site dust control
• Industrial plant and quarry water supply
Contact us for pricing and configuration options!
