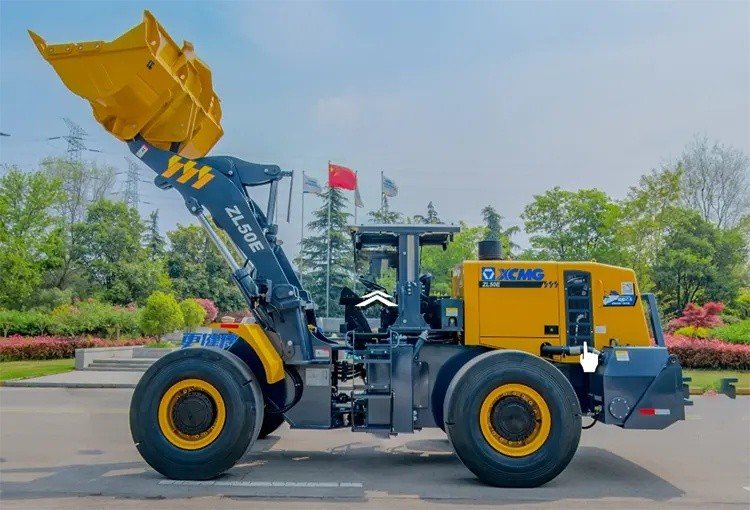

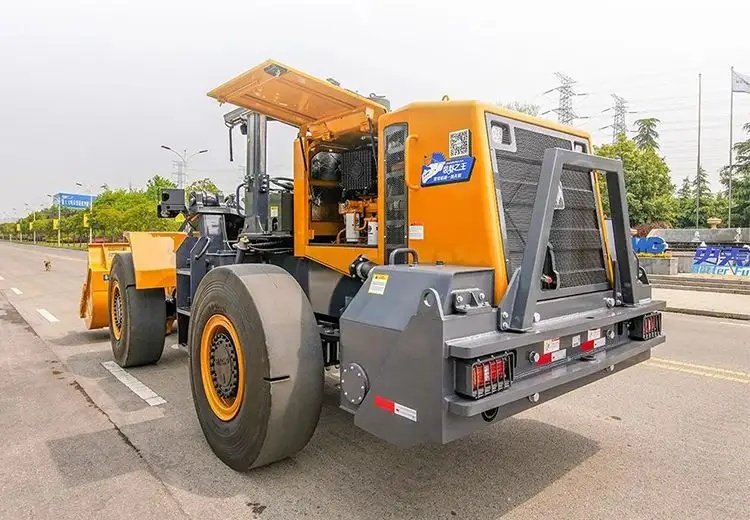

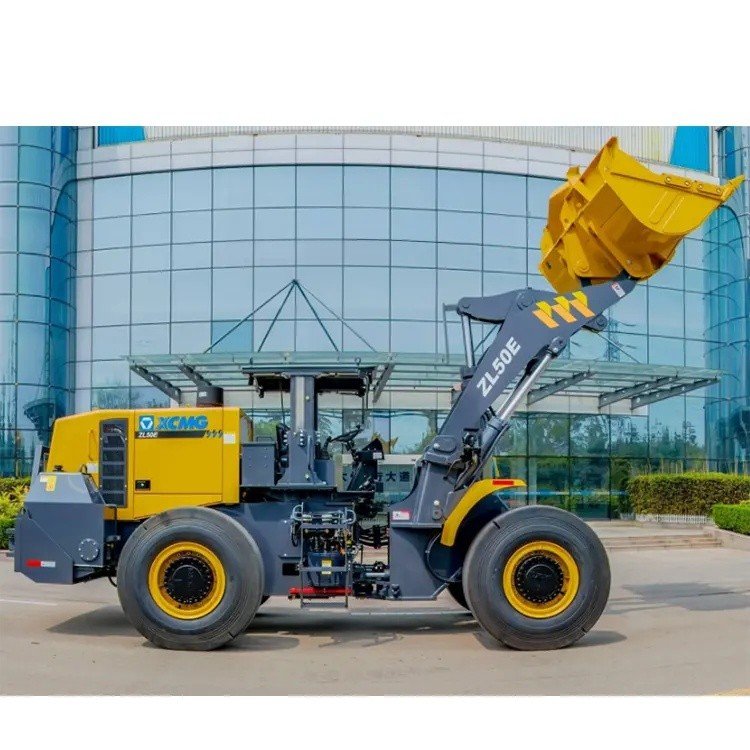

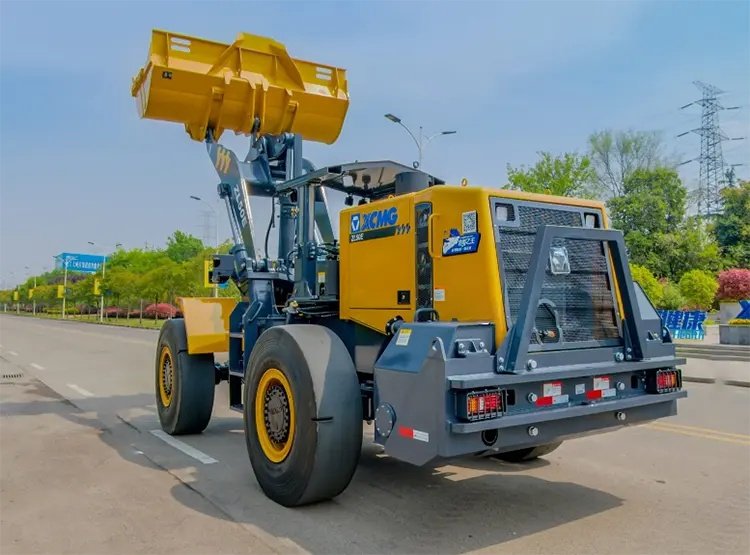

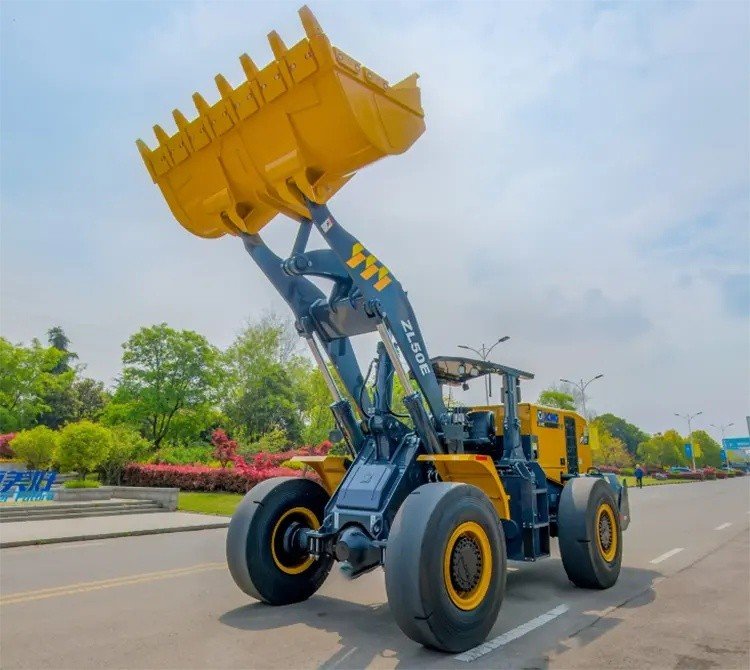

Factory Price ZL50E 162kw Large Wheel Loader Specifications

The ZL50E 162kw Large Wheel Loader is a durable and high-performance machine designed for heavy-duty applications in mines, ports, and terminals. This Chinese-made loader offers robust performance, reliability, and efficiency, making it ideal for demanding environments.

Key Specifications

Description

Unit

Parameter value

Rated operating load

kg

5000

Bucket capacity

2.5~4.5

Machine weight

kg

17500±300

Dump clearance at maximum lift

mm

3100~3780

Reach at maximum lift

mm

1100~1220

Wheel base

mm

3300

Tread

mm

2250

Max.breakout force

kN

175±5

Max.horse power

kN

160±5

Hydraulic cycle time-raise

s

≤6

Total hydraulic cycle time

s

≤10.5

Min. turning radius over tyres

mm

5925±50

Articulation angle

°

38

Gradeability

°

30

Tyre size


23.5-25-16PR

Overall machine dimension L×W×H

mm

8225×3016×3515

Model


WD10G220E21

Rated Power

kW

162

Travel Speed

Ⅰ-gear(F/R)

km/h

13/17

Ⅱ-gear(F)

km/h

41


  • Model: ZL50E

  • Rated Power: 162 kW

  • Engine: Chinese brand, typically a 6-cylinder diesel engine

  • Bucket Capacity: 2.5 - 3.0 m³

  • Rated Load: 5000 kg

  • Operating Weight: 17300 - 18500 kg

Dimensions and Mobility

  • Overall Dimensions (LxWxH): 7740 - 8390 mm x 2845 - 3000 mm x 3015 - 3410 mm

  • Transport Length: 8390 mm

  • Transport Width: 3000 mm

  • Transport Height: 2700 mm

  • Turning Radius (Outside): 6086 mm

  • Ground Clearance: 430 mm

  • Wheelbase: 3230 mm

Performance

  • Maximum Travel Speed: 36 km/h (high speed), 11.5 km/h (low speed)

  • Reverse Speed: 16 km/h

  • Maximum Gradeability: 30°

  • Bucket Breakout Force: 145 - 168 kN

  • Tipping Load (Full Turn): 11100 kg

Hydraulic System

  • Hydraulic Pump: Chinese brand

  • Working System Pressure: 16 MPa

Fuel and Lubrication

  • Fuel Tank Capacity: 280 L

  • Engine Oil Capacity: 24 L

  • Hydraulic Oil Capacity: 110 L

  • Coolant Capacity: 50 L



Applications

  • Mining Operations: Efficient material handling and loading

  • Port and Terminal Operations: Heavy-duty loading and unloading

  • Construction Sites: Earthmoving and material handling
