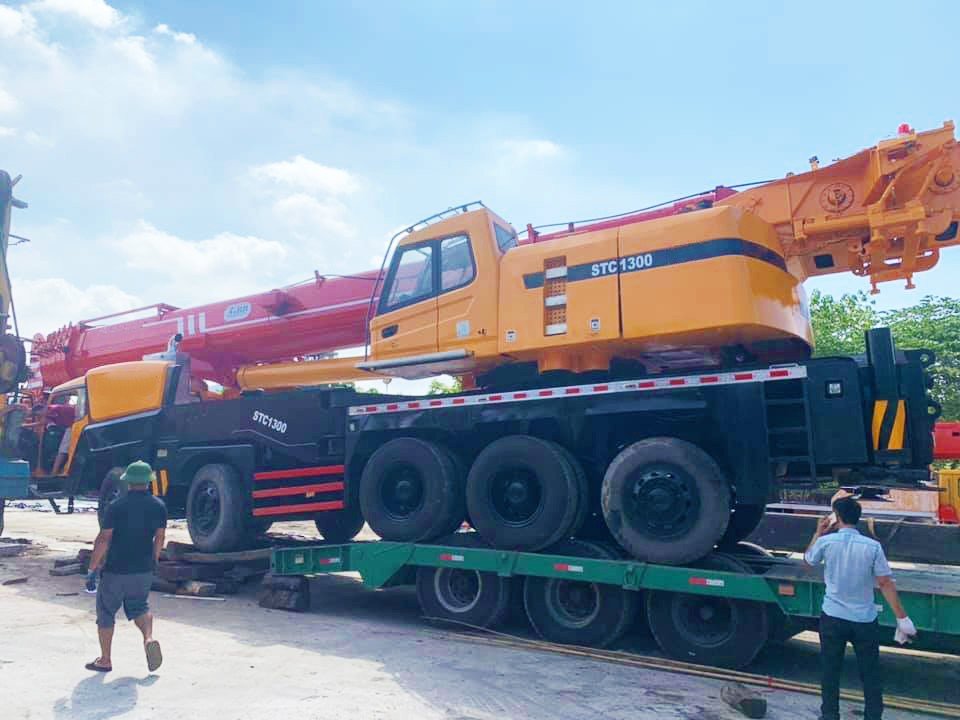

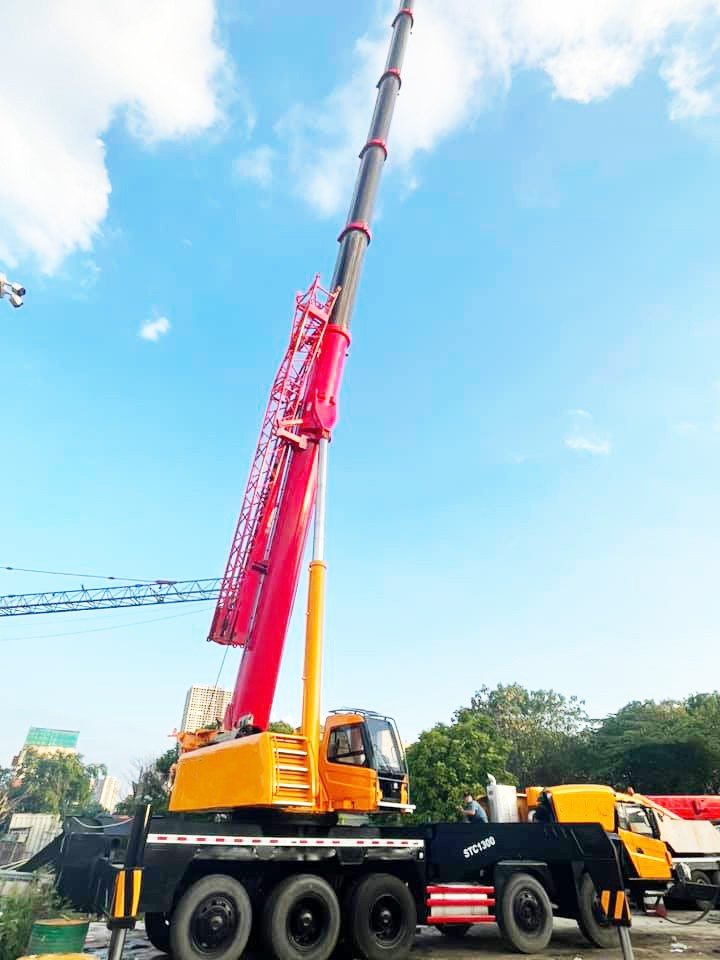

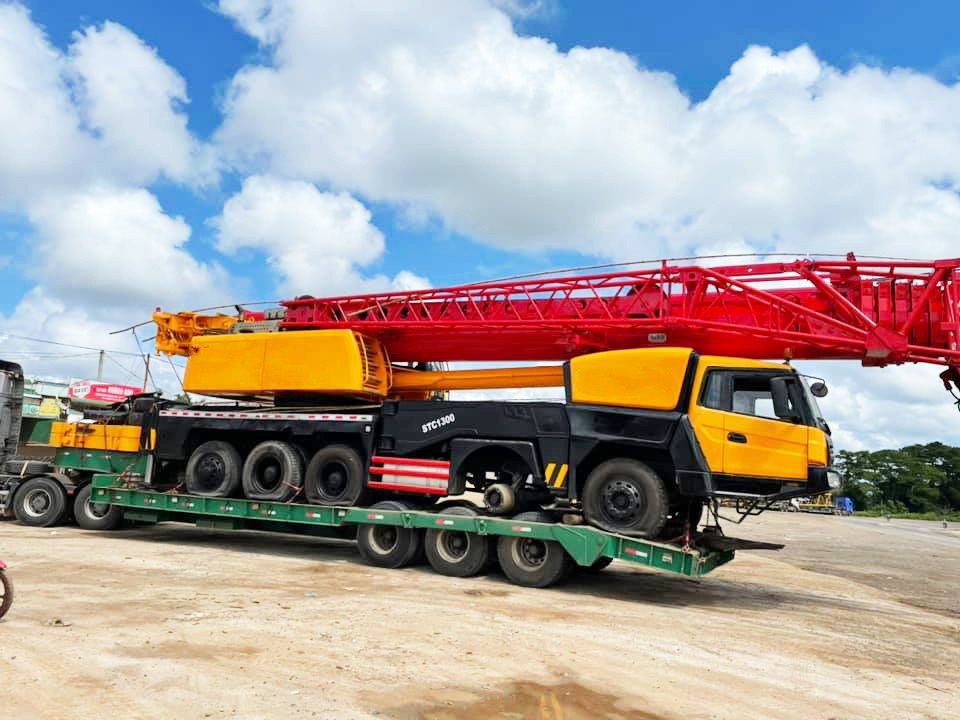

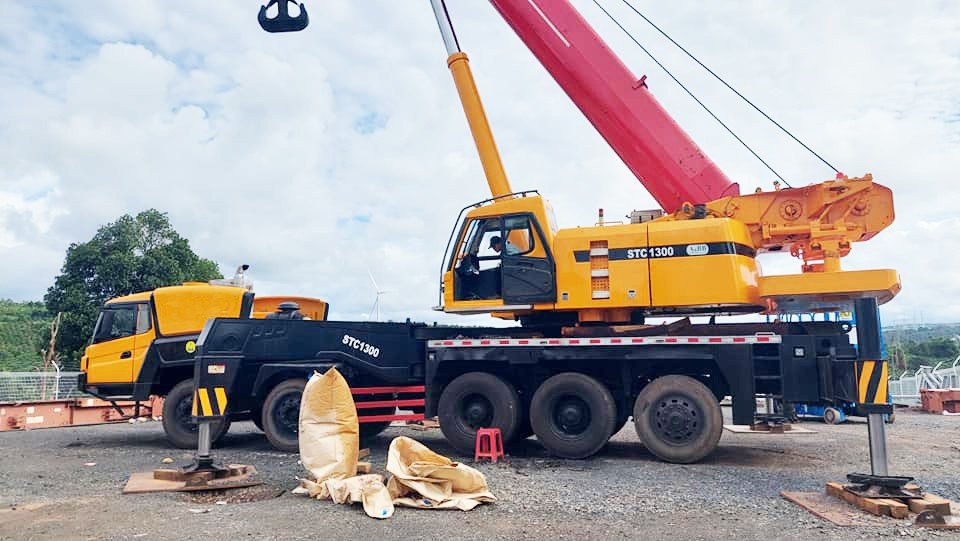

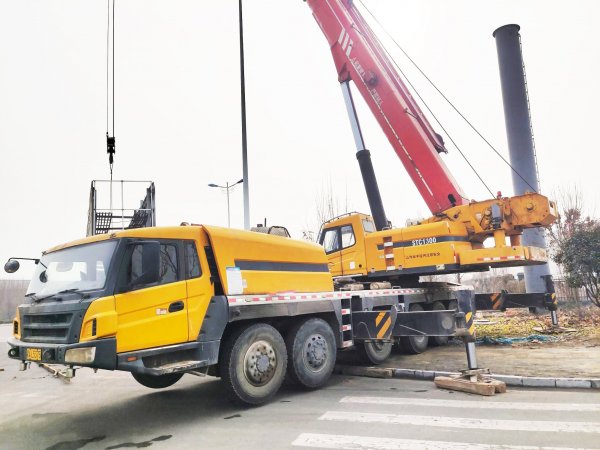

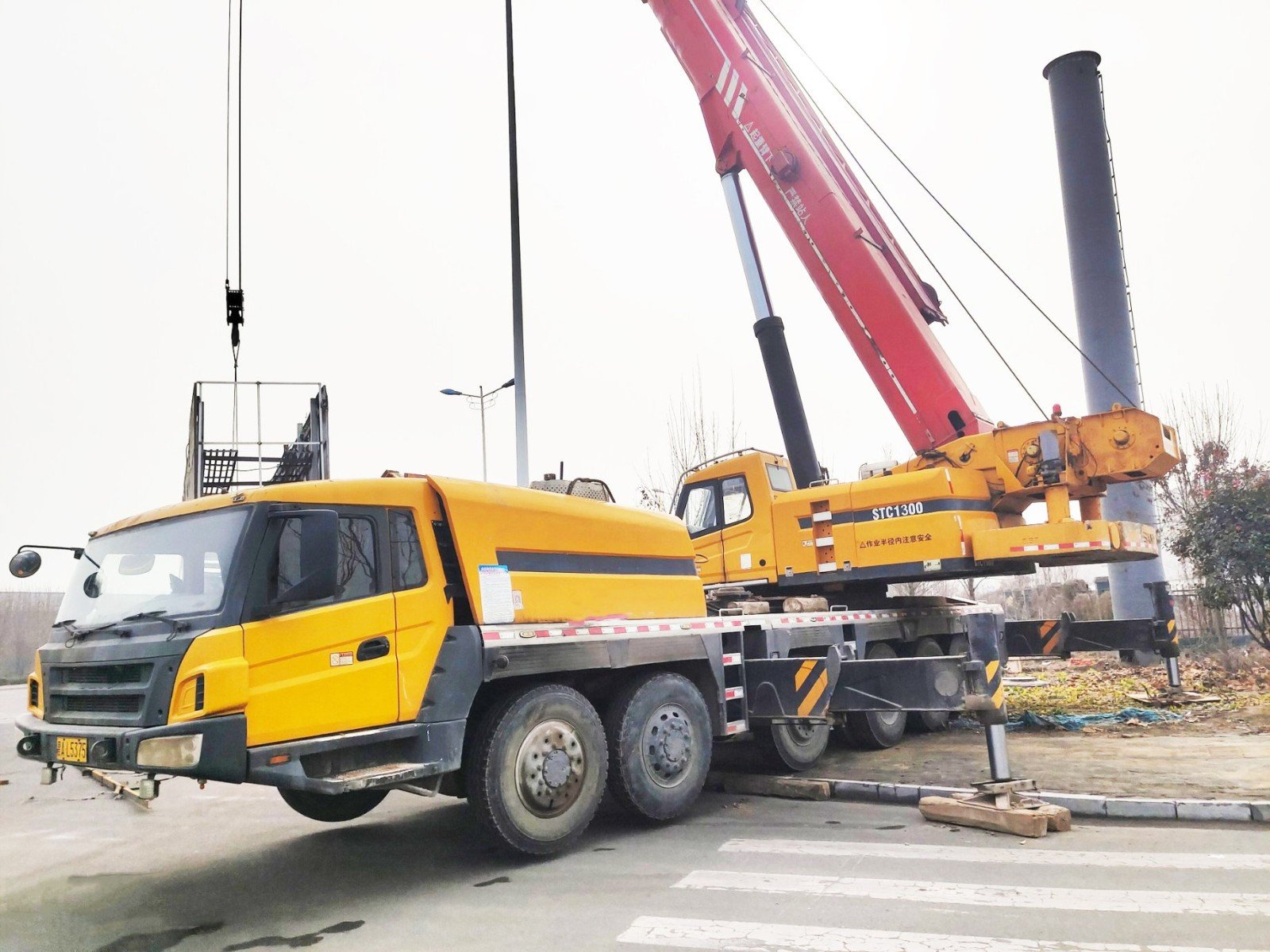

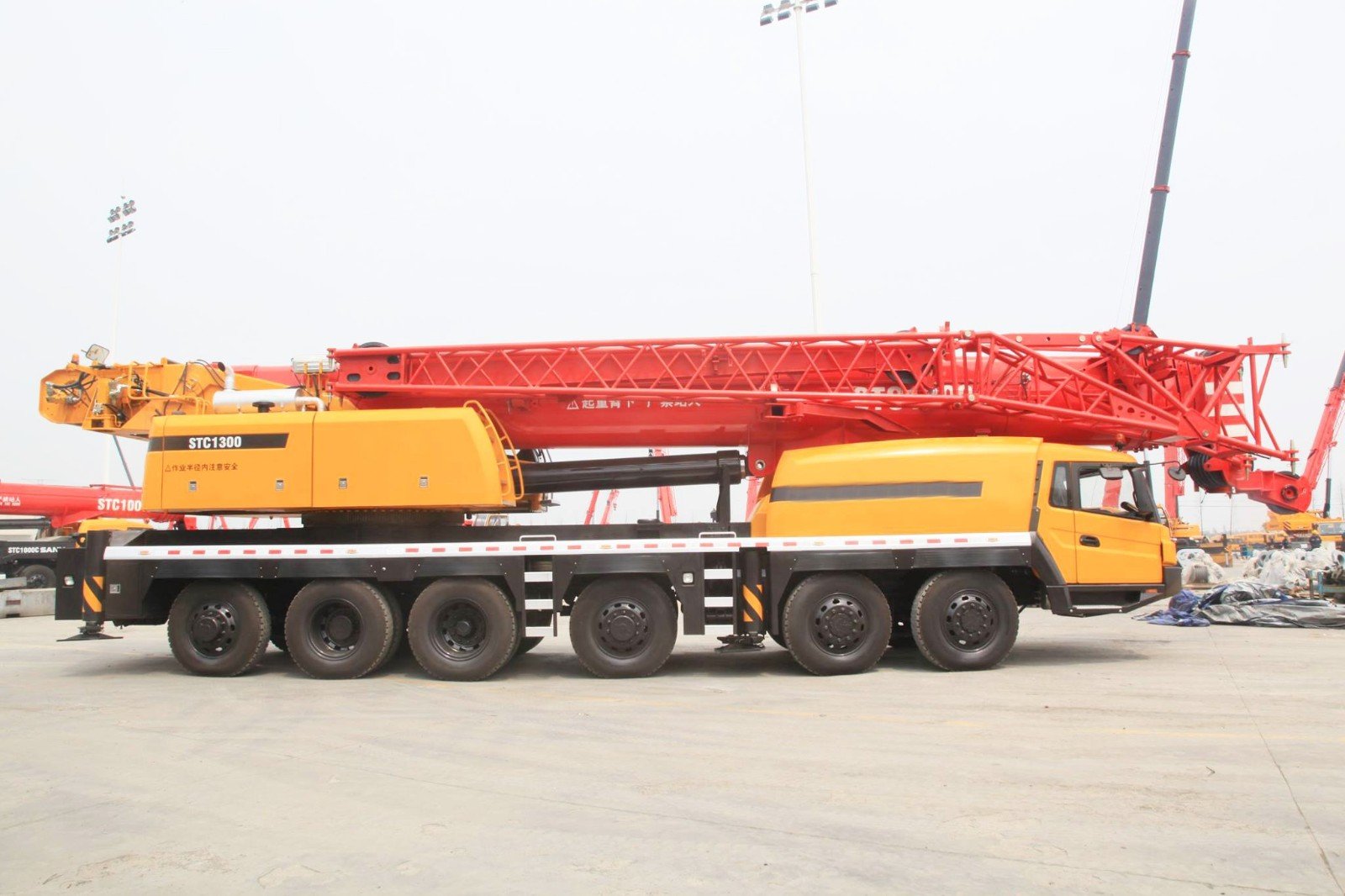

Brand New China STC1300 Mobile Hydraulic Truck Cranes

The STC1300 Mobile Hydraulic Truck Crane is designed for heavy-duty lifting applications, offering robust performance and reliability. With its powerful engine, durable transmission, and advanced hydraulic system, this crane is ideal for construction, industrial projects, and infrastructure development.

Key Features

Model: STC1300S

Full Counterweight: 42T
Max Lifting Capacity: 130T
Max Boom Length: 65.6m
Max Jib Length: 35.5m
Max Lifting Height: 100m
Max Lifting Moment: 4920kN·m

Traveling:

• Available Districts: Uzbekistan & Philippines

• Engine Model (Emission Standard): WEICHAI WP12.460E50 (China V)

• Max Gradeability: 45%

• Max Traveling Speed: 85km/h

• Wheel Formula: 10 * 6 * 8

Tank Capacity:

• Fuel Tank: N/A

Performance:

• Max Lifting Capacity: 130T

• Max Boom Length: 65.6m

• Max Jib Length: 35.5m

• Max Lifting Height: 100m

• Max Lifting Moment: 4920kN·m




• Model	STC600S	STC700T	STC800S	STC900T	STC1000S	STC1300S
  Operation
  Full Counterweight	7.6T	10.5T	13T	16.1T	23.5T	42T
  Max Lifting Capacity	60T	70T	80T	90T	90T	130T
  Max Boom Length	43.5m	46m	47m	50m	56m	65.6m
  Max Jib Length	16m	16m	17.5m	27m	21.5m	35.5m
  Max Lifting Height	60m	62.5m	64.7m	77.5m	77.5m	100m
  Max Lifting Moment	2009kN·m	2107kN·m	2958kN·m	3293kN·m	3300kN·m	4920kN·m
  Traveling
  Available Districts	LHD & RHD countries	LHD countries	LHD & RHD countries	LHD countries	Outside Europe & USA	Uzbekistan & Philippines
  Engine Model  (Emission Standard)	Euro 3	ISLe375 30  ( Euro 3)	Euro 3	ISLe375 30  (Euro 3)	ISLe375 30 (Euro 3)	WEICHAI WP12.460E50 (China V)
  Max Gradeability	42%	46%	40%	≥40%	40%	45%
  Max Traveling Speed	85km/h	90km/h	82km/h	85km/h	80km/h	85km/h
  Wheel Formula	8 * 4 * 4	8 * 4 * 4	8 * 4 * 4 8 * 4 * 8	8 * 4 * 4	8 * 4 * 8	10 * 6 * 8

Applications

• Construction Sites: Ideal for lifting heavy materials and equipment.

• Industrial Projects: Suitable for manufacturing and heavy industry applications.

• Infrastructure Development: Efficient for bridge construction and large-scale projects.

Contact Us

Interested in this model? Contact us for pricing and configuration options.

Contact: William
Phone/WhatsApp/Wechat: +86 18669778647
Email: Sales22@chinatruck.cc
