Beiben NG80 6x6 Off-road Truck Chassis, 2626/2629 290HP, Heavy Duty All-wheel Drive for Mining & Logistics
No.:
Vehicle Type: Cargo Truck
Brand Name: BEIBEN
Person in charge: Aria Dong
Cel: 8617667810120
Whatsapp: 86153364889276
E-mail: sales12@chinatruck.cc
FREE GET QUOTE
Details

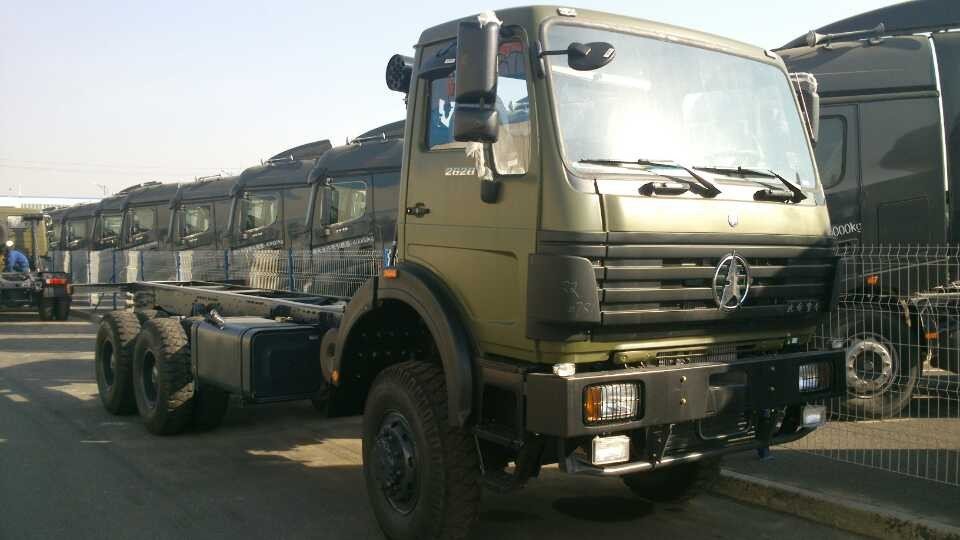

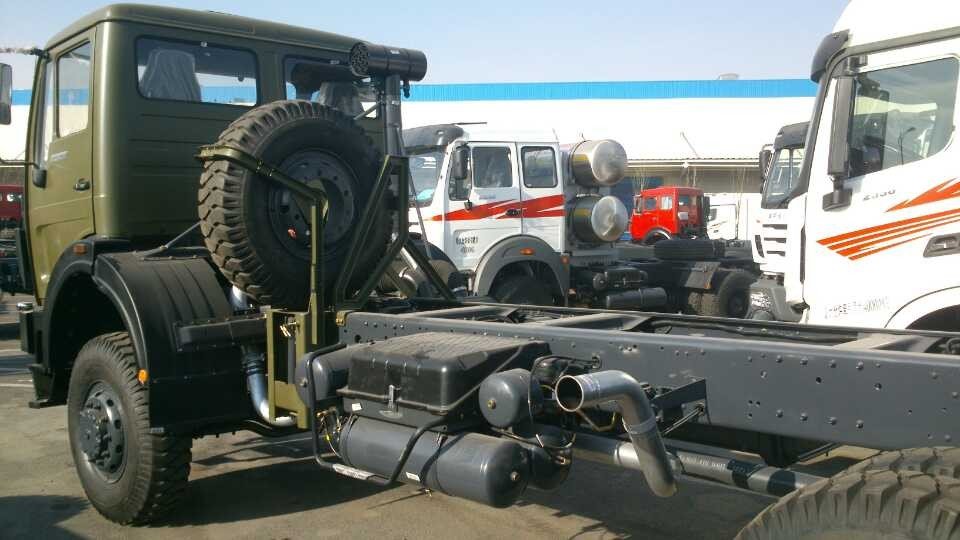

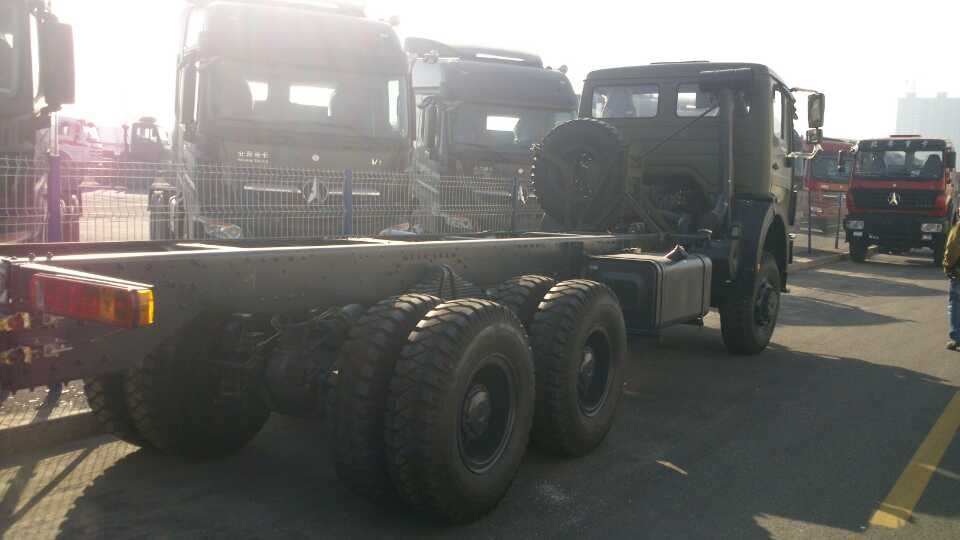

The Beiben NG80 6x6 off-road truck chassis (2626/2629 series) is built on the proven Mercedes-Benz NG80 platform, featuring a 290HP Weichai engine, 6x6 all-wheel drive with differential locks, and heavy-duty hub-reduction axles. Designed for extreme off-road conditions, it excels in mining, construction, and remote logistics operations worldwide.
| Item | Specification |
|---|---|
| Model | Beiben NG80 6×6 Off-road Truck Chassis (ND2160/ND2260 series, also known as 2626/2629) |
| Drive Type | 6×6 All-wheel Drive, with inter-axle & inter-wheel differential locks |
| GVW / Kerb Weight | 26,000 kg / Approx. 11,000 kg |
| Engine Model | Weichai WP10.270 / WP10.290 In-line 6-cylinder Diesel Engine |
| Max Power | 270 HP / 290 HP (199 kW / 213 kW) |
| Max Torque | 920 N·m / 1000 N·m @ 1200–1600 rpm |
| Emission Standard | Euro 2 / Euro 3 (customizable for export markets) |
| Transmission | Fast 9JS119 9-speed Manual Transmission |
| Axles | Beiben Hub-reduction Axles (front steer, middle & rear drive) |
| Tire Size | 12.00R20 / 13R22.5 Off-road Tread Tires |
| Wheelbase | 3800 + 1400 mm (adjustable for modification) |
| Max Speed | 85 km/h |
| Max Gradeability | ≥ 35% |
| Wading Depth | Approx. 800 mm (upgradable to 1000 mm) |
| Applications | Cargo truck, tanker, shelter carrier, engineering vehicle, etc. |
