Wheelbase

3800 1450mm

Overall length

9.405 m

Overall width

2.5 m

Overall height

3.98 m

Curb weight

13785kg

Rated contained mass

11020kg

Track

Front track: 1995    Rear track: 1800/1800mm

Front / rear overhang

1515/2640(mm)

The total mass

25000kg

Place of Origin

Baotou

Approach angle

23 degrees

Departure angle

30 degrees

Engine

Engine Model:Weichai WP10.340E32,

Number of cylinders:6,

Fuel type:Diesel fuel

Displacement:9.726L

Emission standards:Country, three/Europe

Horsepower:340hp

Maximum output power:250KW

Torque:1250N · m

Maximum torque speed:1400-1600

Engine Type:Water-cooled, four-stroke with the exhaust valve brake,

direct injection, turbocharged and intercooled

Transmission

Transmission Type:9T-160

Chassis

Axle load: 7000/18000 (and biaxial loading)

Number of axes: 3

spring: 10/13

Tire

Number of tires:10+1(spare tire)

Tire Size:12.00-20

Tank

Fuel tank capacity:300L

Tank Material: aluminum

Remarks

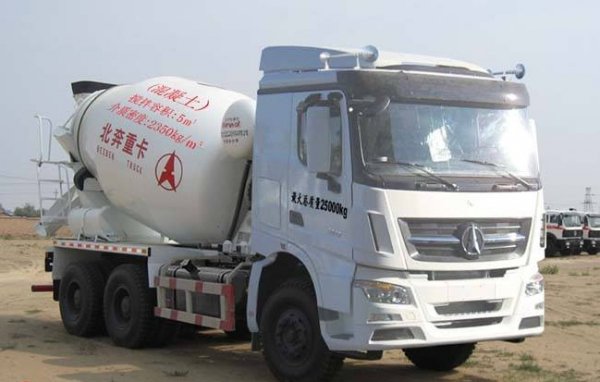

The flat cab, dome is optional. Mixing volume: 8 m3
