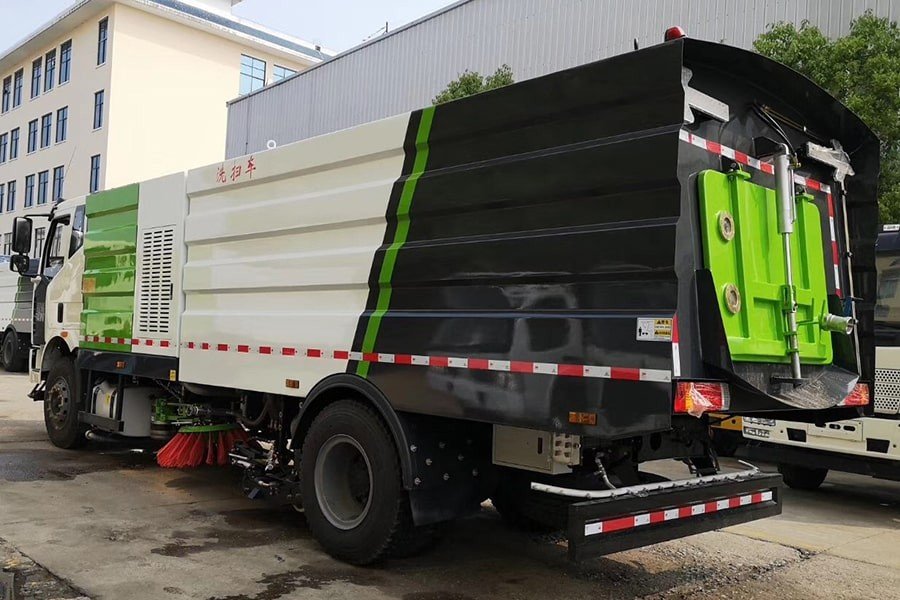

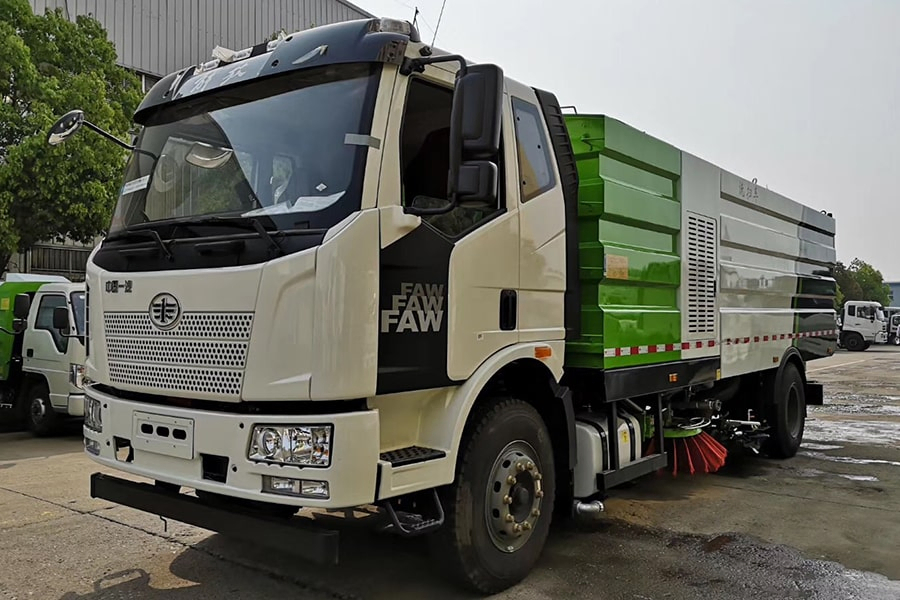

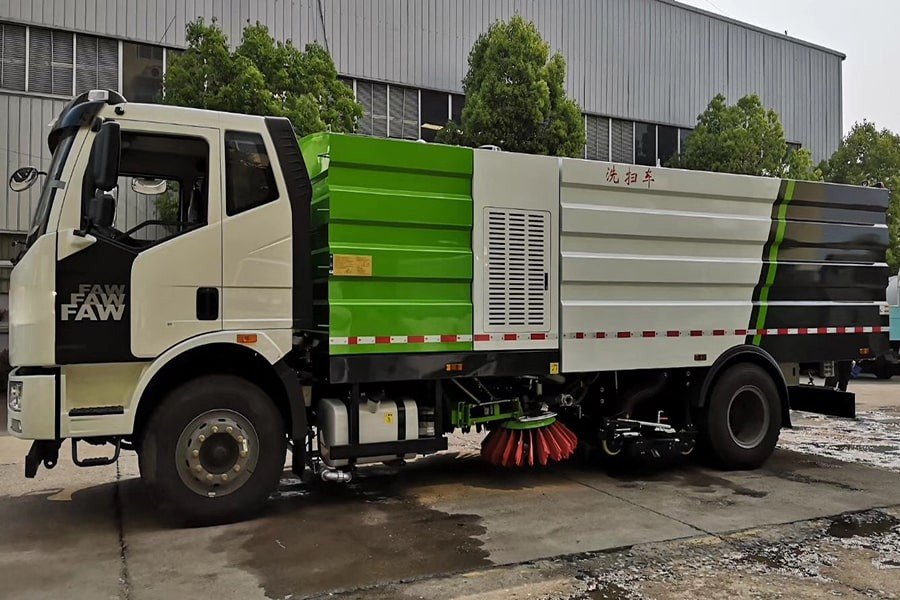

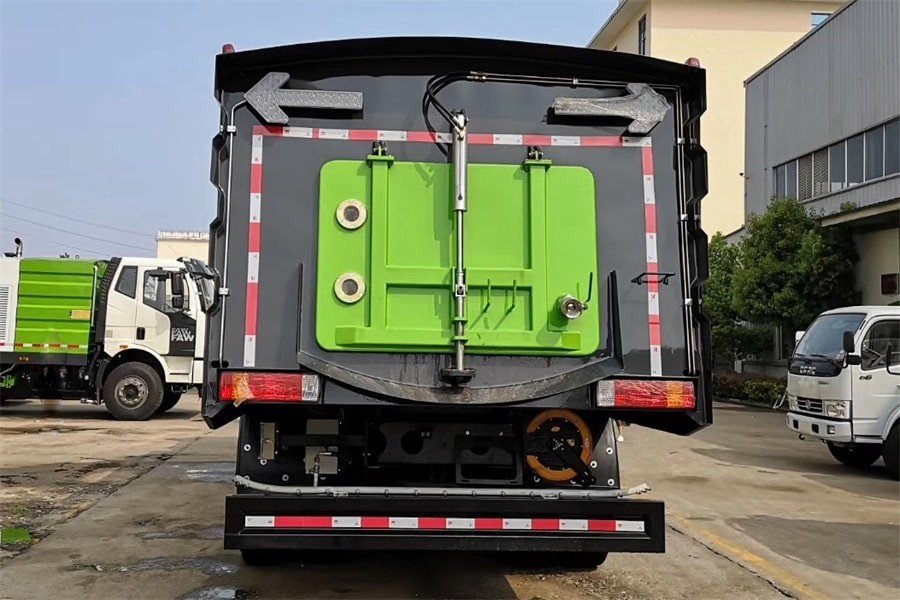

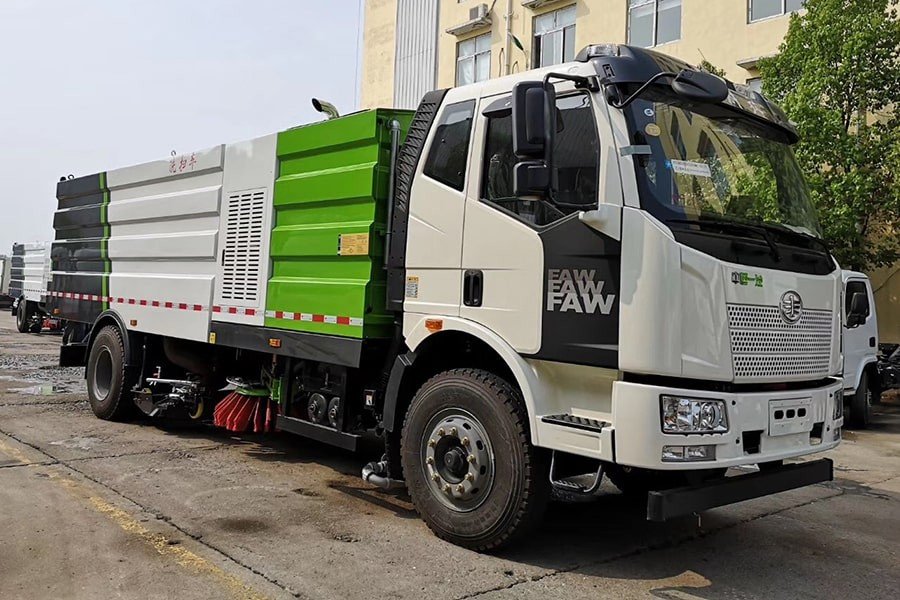

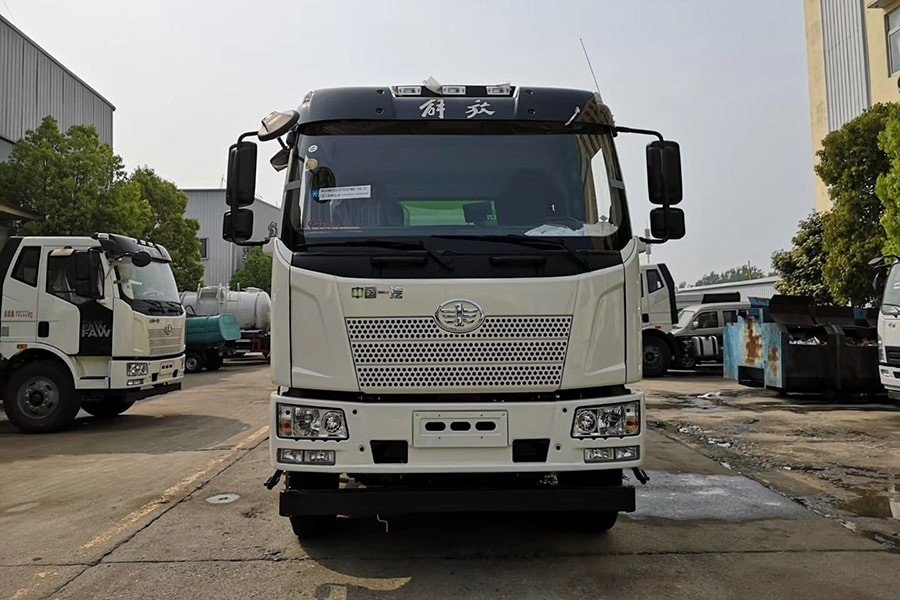

FAW 8-Ton 16 m³ Pavement Sweeper & Washer Truck – 180 HP Euro-3 Road-Cleaning Broomer for Sale
No.:
Vehicle Type: Road Cleaning Truck
Brand Name: FAW
Person in charge: William Du
Cel: 8618669778647
Whatsapp: 8618669778647
E-mail: sales22@chinatruck.cc
FREE GET QUOTE
Details
FAW 8-Ton 16 m³ Pavement Sweeper & Washer Truck – 180 HP Euro-3 Road-Cleaning Broomer for Sale
Key Features
• Dual-Engine Power – 180 HP Dachai main + 170 HP Cummins auxiliary, Euro-3, shared 300 L fuel tank
• Large Tanks – 9 000 L water + 7 000 L debris, 45° hydraulic dump, 3 min quick-discharge
• Wide Sweep – 3.5 m cleaning width, 3–20 km/h working speed, 70 000 m²/h productivity
• Full-Suction System – U-shaped Ø200 mm suction nozzle, 5–10 mm ground clearance, no brush replacement
• Two Sweep Brushes – Ø900 mm, 80 r/min, independent lift, 4–6° rake & 2–4° extroversion
• High-Pressure Wash – Centrifugal aerator 2 600–2 900 r/min, sprinkler bars & water filter
• All-Terrain – 4×2 LHD, 10.00R20 tyres, 16/22° approach/departure, 98 km/h max
• Certified – ASM, ISO, BV, SGS, CCC worldwide compliant
Specifications
| Item | Parameter |
|---|---|
| Overall Dimension | 8 960 × 2 500 × 3 170 mm |
| Wheelbase | 5 000 mm |
| Tare Weight | 12 050 kg |
| Payload | 8 000 kg |
| Front Axle Load | 6 000 kg |
| Rear Axles Load | 10 000 kg |
| Main Engine | Dachai 180 HP, Euro-3 |
| Auxiliary Engine | Cummins 170 HP (125 kW) |
| Gearbox | 8 fwd + 1 rev |
| Max Speed | 98 km/h |
| Tires | 10.00R20, 6 + 1 |
| Cleaning Width | 3.5 m |
| Working Speed | 3–20 km/h |
| Cleaning Capacity | 70 000 m²/h |
| Max Grain Size | ≥110 mm |
| Dumping Angle | ≥45° |
| Water Tank | 9 000 L |
| Debris Tank | 7 000 L |
| Sweep Brushes | 2 × Ø900 mm, 80 r/min |
| Suction Nozzle | U-shape Ø200 mm |
| Electrical System | 24 V (2 × 12-80 Ah) |
| Certification | ISO, BV, SGS, CCC, ASM |
Typical Applications
• City roads & highways
• Coal & power plants
• Cement & steel mills
• Mining & quarry yards
• Airport & port pavements
Optional Upgrades
• Stainless-steel tanks for corrosive dust
• Front snow-plough blade
• High-pressure water jets (100 bar)
• GPS fleet tracking & camera system
Contact us for pricing and configuration options!
Contact: william
Phone/WhatsApp/WeChat: +86 18669778647
Email: Sales22@chinatruck.cc
FREE Inquiry Now
