SHACMAN 6x4 Dump Truck Mining Use Bucket Minerals Transport Tipper

No.:

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: Bella Dai

Cel: +86 176 6971 7523

Whatsapp: 8617669717523

E-mail: sales22@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mrs. Bella Dai

Cel: 0086-17669717523

E-mail: sales22@chinatruck.cc

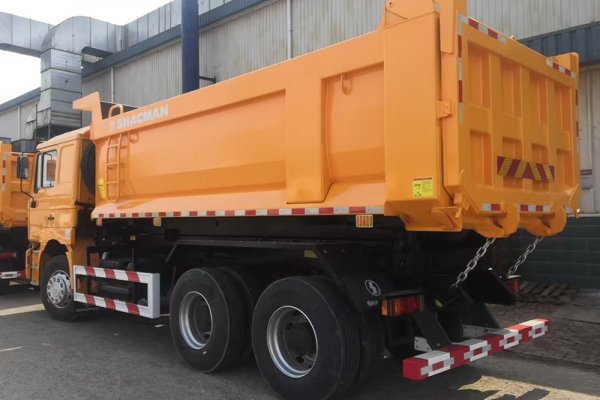

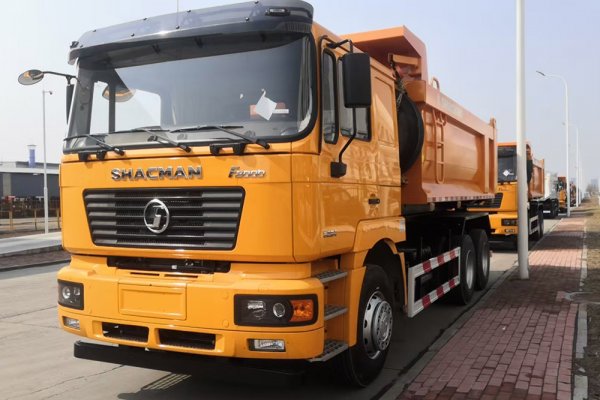

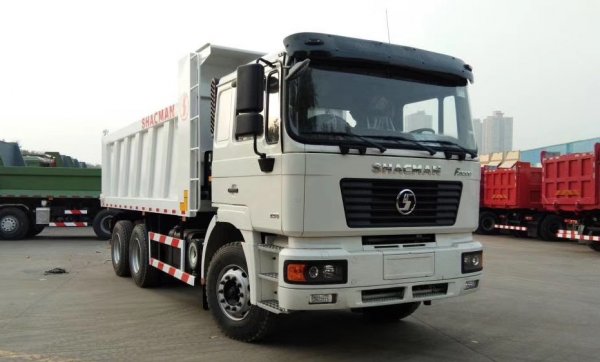

SHACMAN 6x4 Dump Truck Mining Use Bucket Minerals Transport Tipper

--Truck body from 15cbm~20cbm, mining type dump body, for ore sand, minerals transportation

--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Standard color: White, Red, Yellow (Other color is optional)


Traction type: 6x4

Drive System: LHD(RHD is optional)

Cabin:F2000 Flat Cabin, one sleeper, Air Conditioner

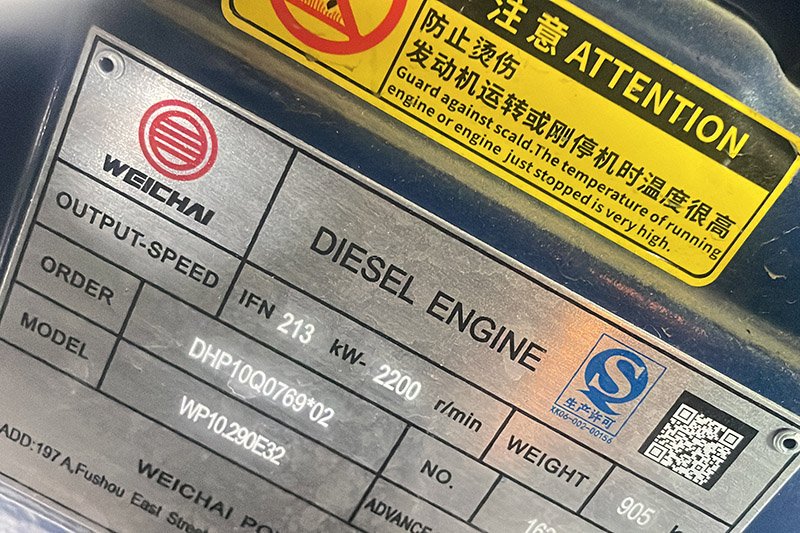

Engine Brand:WEICHAI

Model: WP10.290E32  EuroII  Rated power :290hp (340hp is optional)

Engine displacement: 9.726 liters

Gearbox: FAST 9 Speeds (9JS119)

Clutch: Ф430 Diaphragm type

Steering: ZF technology

Axle: Front 7.5 Ton MAN axle; Rear 13 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h): 77

Tire: 12.00R20, 12R22.5

Fuel tank: 400L(Aluminum)

Kerb weight (kg): 12100

Payload (kg): 25000

Wheel base (mm): 3800+1350

Dimensions(L*W*H)(mm): 8229x2500x3450


Dump body

5200x2300x1500mm,  Steel thickness (mm) :Bottom 10 , side 8. Thickness can be changed according to the goods loaded. Mining use bucket, with warping bucket tail. (back door is optional)

Hydraulic lifting system: Middle F/T lifting
