Fundamentally Different Platforms: WP10 vs. WP10H
Despite the misleading similarity in their names, the Weichai WP10 and WP10H are engineered as entirely separate engine platforms, featuring significant differences across their core architecture and internal specifications. Recognizing these distinctions is the first step in understanding their unique capabilities and intended applications.

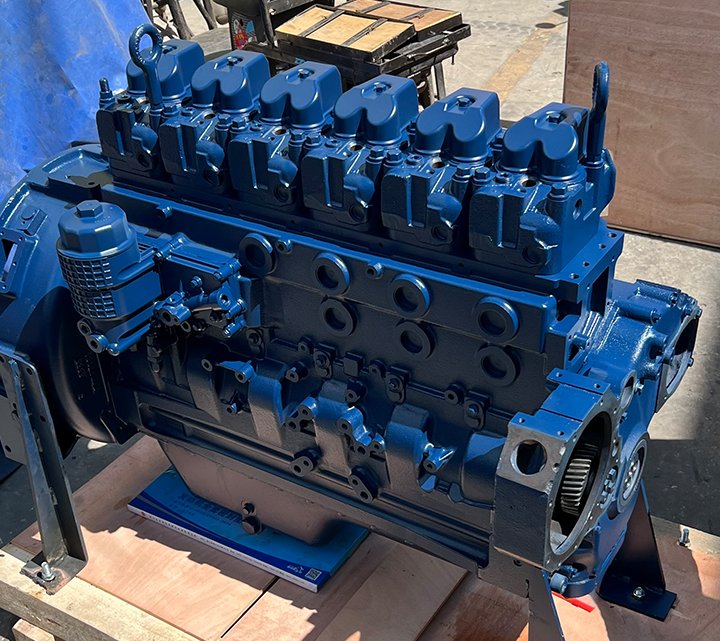

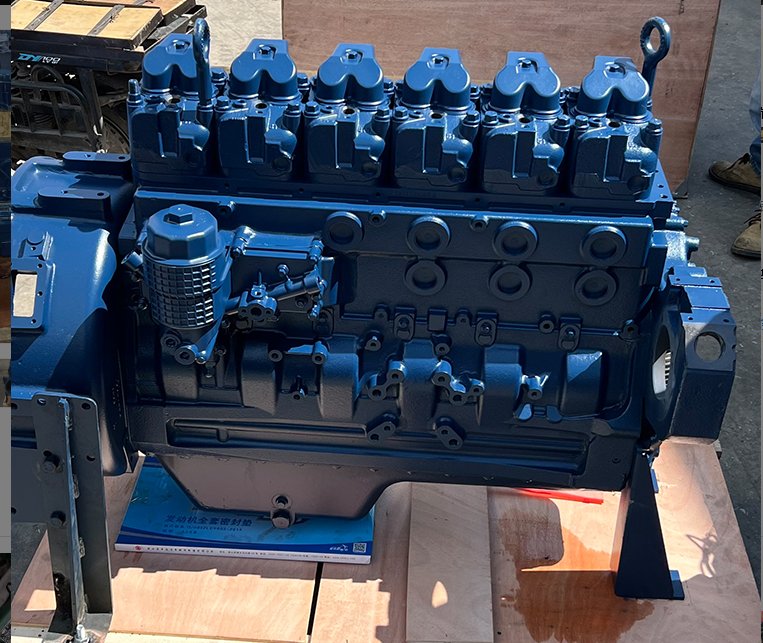

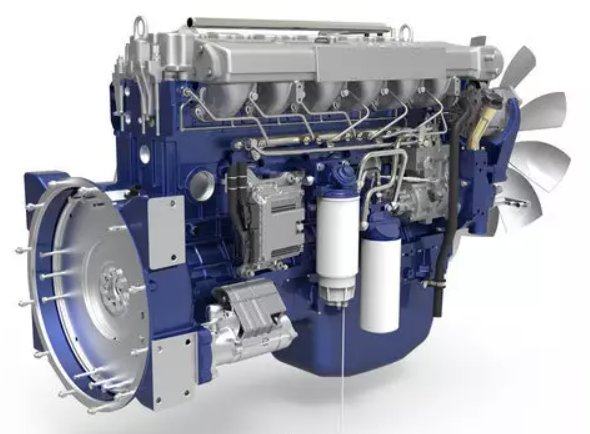

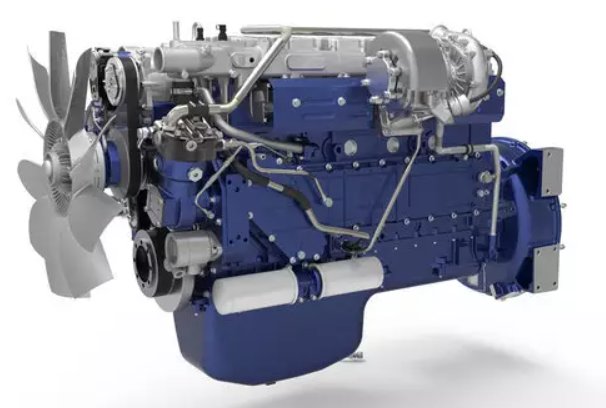

External Structural Variations: A visual inspection of the two engines immediately reveals substantial differences in their external configurations.

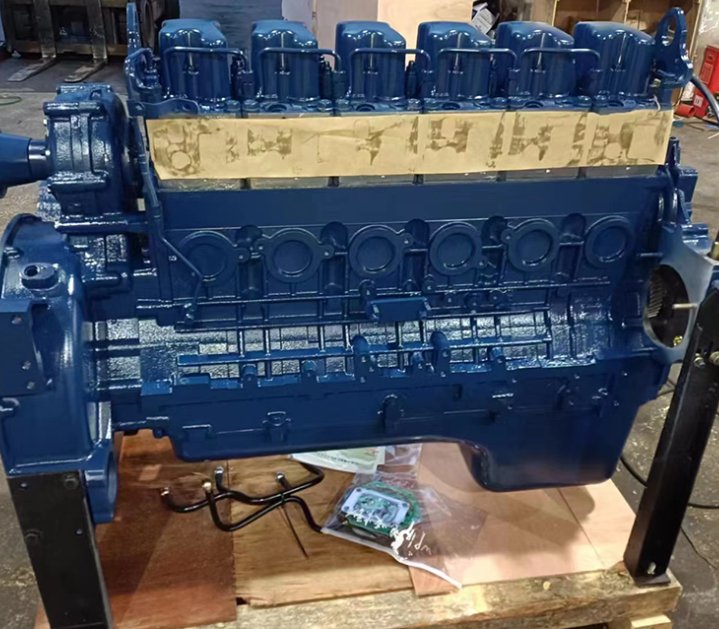

Cylinder Head Design: The most apparent distinction lies in the cylinder head design. The classic WP10 utilizes a familiar split-type cylinder head structure, meaning each cylinder has its own individual cylinder head. This design is known for its ease of individual cylinder maintenance or repair.
In contrast, the WP10H features an integrated, or monoblock, cylinder head design, where all cylinders (typically in an inline configuration) share a single cylinder head casting. This design can offer structural rigidity and potentially improved sealing, but requires replacement of the entire unit if one section is damaged.
Gear Train Location: Another significant structural difference is the location of the gear train, which drives components like the camshaft, oil pump, and fuel pump. The WP10 employs a front-mounted gear train.
Conversely, the WP10H adopts a rear-mounted gear train configuration. This relocation affects engine packaging and potentially influences noise, vibration, and maintenance access.
Intake Manifold Side: The routing of the intake manifold also differs between the two platforms. The WP10 positions its intake manifold on the right side of the engine block (when viewed from the front).
The WP10H, however, reverses this configuration, locating the intake manifold on the left side of the engine block.
Filter Unit Design: Their filtration systems also showcase differences in design philosophy. The WP10 uses traditional spin-on type filters, commonly used for fuel and oil filtration.
The WP10H adopts a more modern integrated filter unit design, a trend increasingly seen in contemporary engines for potentially improved packaging and serviceability.
Internal Dimensions (Bore and Stroke): Moving beyond external appearance, the fundamental internal dimensions of the engines confirm they are distinct designs, even within the 10-liter displacement class.
WP10 Bore and Stroke: The WP10 engine features a cylinder bore (the diameter of the cylinder) of 126 mm and a piston stroke (the distance the piston travels) of 130 mm.
WP10 Displacement: These dimensions result in a total engine displacement of 9.726 liters across its cylinders.
WP10H Bore and Stroke: The WP10H engine, despite being in a similar displacement class, has different internal dimensions: a bore of 116 mm and a significantly longer stroke of 150 mm.
WP10H Displacement: These dimensions give the WP10H a total displacement of 9.5 liters.
The differences in bore, stroke, and the resulting slight variation in total displacement definitively establish the WP10 and WP10H as separate engine designs, not merely variants of the same core architecture. The longer stroke of the WP10H, for example, often contributes to different torque characteristics compared to a shorter-stroke, larger-bore engine like the WP10.
Performance Parameters and Market Positioning
While structural and dimensional differences highlight their distinct engineering, the performance parameters and intended market positioning further underscore the different roles of the WP10 and WP10H within Weichai's portfolio.
WP10 Power and Torque Range: The Weichai WP10 engine covers a power output range typically from 270 to 380 horsepower.
Its maximum torque output ranges from 1270 to 1650 Newton-meters (N·m). This performance range positions the WP10 as a versatile and robust engine for a wide array of heavy-duty applications.
WP10H Power and Torque Range: The WP10H engine offers a higher baseline and peak power output, typically covering a range from 350 to 400 horsepower.
Crucially, its maximum torque output is significantly higher, ranging from 1700 to 1900 N·m. This higher torque output is a key characteristic of the WP10H.
Performance Beyond Core Metrics: Beyond the headline power and torque figures, the WP10H demonstrates advancements over the WP10 in other critical performance areas.
These include a significantly longer B10 life (a statistical measure indicating the mileage or operating hours at which 10% of the engines in a given population are expected to have undergone a major repair), improved fuel consumption rates, and reduced noise levels (NVH - Noise, Vibration, and Harshness).
Different Market Segments: These fundamental differences in structure, internal dimensions, and performance parameters lead to distinct market positioning for the two engines.
WP10 Positioning: The WP10, with its established reputation, robust design, and wide power range, serves a broad segment of the heavy-duty market, valued for its reliability and proven performance across diverse applications.
WP10H Positioning: The WP10H, despite its slightly smaller displacement (9.5 vs 9.726 liters), achieves torque output comparable to, or even exceeding, some engines in the 11-liter displacement class (up to 1900 N·m).
This exceptional torque-to-displacement ratio means the WP10H is specifically aimed at a higher-level market segment.
Its objective is to serve as a performance-oriented alternative and a potential replacement for certain applications traditionally powered by 11-liter class engines. This demonstrates Weichai's strategy to offer higher performance and efficiency in a more compact package.
The WP10.240 Fuel System: Electronic Control High-Pressure Common Rail
A core technology enabling modern diesel engine performance, efficiency, and emissions control is the electronic control high-pressure common rail (HPCR) fuel injection system. The Weichai WP10.240 engine utilizes such a system, differing significantly from traditional mechanical injection systems.
System Composition: The WP10.240 HPCR system is composed of two primary parts: the electronic control section and the fuel supply section.
Electronic Control Section: This part consists of the Engine Control Module (ECM), which serves as the system's central processing unit, various sensors that monitor engine operating conditions, and actuators such as the fuel injectors (specifically, their electromagnetic valves) and fuel metering valve.
Function of Electronic Control: The electronic control system's primary function is to precisely manage the fuel injection process. It receives signals from numerous sensors detailing the engine's real-time status (e.g., crankshaft speed, accelerator pedal position, camshaft position, various temperatures and pressures).
The ECM processes and calculates this sensor data based on pre-programmed logic to determine the optimal fuel injection timing, quantity, and rate for the current operating conditions.
Based on these calculations, the ECM sends precise commands (electrical signals) to the actuators, commanding the fuel injectors' electromagnetic valves to open or close, thereby controlling the timing and duration of fuel injection into each cylinder.
This precise electronic control ensures the engine operates in its most optimal state, maximizing power, fuel efficiency, and minimizing emissions.
Fuel Supply Section: This part is responsible for storing, filtering, pressurizing, and delivering fuel to the engine's cylinders. The WP10.240 system is a reservoir-type common rail system.
Components of Fuel Supply: The system comprises the fuel tank (storage), diesel fuel filter (removing contaminants), electric fuel transfer pump (drawing fuel from the tank), high-pressure fuel pump (generating high pressure), high and low-pressure fuel lines, the accumulator (also known as the fuel rail or common rail, which stores fuel at high pressure), fuel injectors (delivering fuel to cylinders), return fuel lines (returning excess fuel to the tank), and the ECM (also involved in controlling fuel metering).
The fuel supply system is conceptually divided into a low-pressure circuit and a high-pressure circuit.
Working Principle of the Fuel Supply System: The overall working principle of the fuel supply system involves a precise sequence of steps to deliver fuel at extremely high pressures and controlled timing.
Fuel is drawn from the fuel tank by the electric fuel transfer pump (also referred to as the electric oil pump).
This fuel then passes through the fuel water separator (removing water) and the fuel filter (removing particulate contaminants).
After filtration, the fuel is delivered to the high-pressure fuel pump at a relatively low pressure, typically around 0.2 MPa.
Within the high-pressure fuel pump, a portion of the low-pressure fuel is used for lubricating and cooling the internal components of the pump before returning to the fuel tank.
The main portion of the low-pressure fuel enters the high-pressure pumping elements.
The high-pressure fuel pump then significantly increases the fuel pressure, raising it to extremely high levels, up to 135 MPa in the WP10.240 system.
This highly pressurized fuel is then delivered from the high-pressure pump to the accumulator, or fuel rail.
The accumulator (fuel rail) acts as a common reservoir, storing fuel at the commanded high pressure, ready for instantaneous injection into any cylinder.
Mounted on the accumulator are key control and monitoring components: a pressure sensor, which measures the actual fuel pressure within the rail, and a pressure limiting valve, which controls the fuel pressure in the rail by cutting off the fuel supply or diverting excess fuel back to the tank.
The pressure limiting valve is used to regulate the common rail pressure to the target value set by the ECM. If the pressure exceeds the desired level, this valve opens to reduce it.
High-pressure diesel fuel flows from the accumulator, through the fuel lines and a flow limiting valve (located at the connection to each injector), into the fuel injector.
Within the injector, the high-pressure fuel then follows two paths: one path leads directly to the injection nozzle, ready to be sprayed into the combustion chamber.
The other path leads to the injector's control mechanism. During the injection process, some fuel leaks through the small clearances within the injector's control piston and needle valve guide areas. This leaked fuel, along with excess fuel bypassed by control valves, is directed back to the fuel tank via return lines.
Electronic Control Working Principle: The electronic control system works in tandem with the fuel supply.
Various sensors continuously monitor the engine's operating status in real-time.
The ECM processes these sensor signals using complex algorithms based on its pre-programmed maps and logic.
Based on the calculated results, the ECM determines the optimal fuel injection quantity, the precise injection timing (start of injection), and parameters defining the injection rate model (how quickly the fuel is injected) for the current engine operating condition.
The ECM then sends electrical command signals to the electromagnetic valves on each fuel injector, commanding them to open at the calculated optimal moment and for the calculated optimal duration.
This closed-loop electronic control ensures the engine consistently operates in its most optimal state, maximizing power output, improving fuel efficiency, and minimizing exhaust emissions by precisely controlling the combustion process.
Key Components of the HPCR System in Detail
Understanding the working principle of the WP10.240 HPCR system requires a closer look at its main components.
High-Pressure Fuel Pump (CP2.2): The WP10.240 fuel system utilizes a CP series high-pressure fuel pump, specifically referencing the CP2.2 model in the diagram.
The CP2.2 high-pressure pump is driven by the engine's crankshaft timing gear through a gear train.
The pump contains two in-line plungers (pistons) responsible for pressurizing the fuel.
The pump's drive shaft has a camshaft with three lobes designed to drive each of the two in-line plungers.
This means that for every single rotation of the pump's drive shaft, each plunger is actuated three times, resulting in a total of six pumping strokes (three from each of the two plungers) per drive shaft rotation.
The CP2.2 high-pressure pump design integrates the fuel transfer pump (which draws fuel from the tank) within the same unit.
It also incorporates a fuel metering valve (or inlet metering valve) at the fuel inlet.
The ECM controls this fuel metering valve using a pulse-width modulated (PWM) signal. By regulating the amount of fuel entering the high-pressure pumping elements, the ECM precisely controls the fuel pressure generated and maintained within the common rail.
High-Pressure Accumulator (Fuel Rail): The high-pressure accumulator, commonly referred to as the fuel rail or oil rail ("油轨"), is a critical component designed to store fuel at the extremely high pressure generated by the high-pressure pump.
It is typically constructed as a forged steel pipe, robust enough to withstand the immense internal pressures.
Fuel injectors for each cylinder are connected to the fuel rail via individual high-pressure fuel lines. This common rail design ensures that high-pressure fuel is readily available to all injectors simultaneously.
Fuel Pressure Control Valve: A fuel pressure control valve is installed, often on the high-pressure pump unit, though its function directly relates to rail pressure.
This valve regulates the fuel pressure within the fuel rail based on the desired pressure value set by the ECM for the current engine operating conditions.
If the fuel pressure in the rail exceeds the target value set by the ECM, the control valve opens. This action allows some of the high-pressure fuel from the rail to flow back to the fuel tank via return lines, thereby reducing the pressure in the rail.
Conversely, if the fuel pressure in the rail is too low compared to the ECM's target, the control valve closes. This action restricts or stops fuel from returning to the tank, allowing the high-pressure pump to increase the pressure in the rail towards the target value.
Rail Pressure Sensor: A fuel rail pressure sensor is mounted directly on the accumulator (fuel rail).
The primary function of this sensor is to accurately measure the real-time fuel pressure within the common rail.
The sensor converts the measured fuel pressure into an electrical signal, which is then continuously transmitted back to the ECM.
This feedback loop allows the ECM to monitor the actual rail pressure and make continuous adjustments via the fuel metering valve and pressure control valve, achieving closed-loop control of the common rail fuel pressure to maintain it precisely at the desired level.
Pressure Limiting Valve: The accumulator also features a pressure limiting valve (also sometimes referred to as a relief valve).
This valve acts as a safety mechanism and pressure regulator. If the pressure in the fuel rail exceeds a predefined maximum limit, the pressure limiting valve opens.
By opening, the valve creates an overflow passage that allows high-pressure fuel to be diverted from the rail and flow back to the fuel tank. This action limits the maximum pressure that can build up in the fuel rail, protecting the system from potentially damaging overpressure conditions.
The pressure limiting valve is designed to limit the maximum pressure in the fuel rail to a specific value, stated as 150 MPa in this system, matching the maximum operating pressure of the common rail.
Flow Limiting Valve: Also installed on the accumulator, typically at the connection point for each injector line, is a flow limiting valve.
The primary function of the flow limiting valve is to shut off the fuel supply path to a specific injector if that injector is experiencing excessive fuel flow, such as in the case of a stuck-open needle valve or a ruptured high-pressure line to the injector.
In normal operation, a plunger within the flow limiting valve rests in a static position, sealing against a seat towards the injector connection side, but allowing fuel to flow from the rail into the injector line under pressure.
When an injector opens for injection, the pressure in the line between the flow limiting valve and the injector nozzle briefly drops. This pressure differential causes the plunger within the flow limiting valve to move slightly in the direction of the injector.
This movement of the plunger within the flow limiting valve helps to compensate for the volume of fuel leaving the rail during injection, aiding in maintaining stable rail pressure.
If, however, there is an abnormally large flow of fuel (a leak or stuck injector), the pressure drop is significant, causing the plunger to move further and actively restrict or block the flow of fuel to that injector.
When injection stops, the pressure differential reverses, and a return spring pushes the plunger back to its static position, allowing fuel to refill the line to the injector through a small passage or orifice. The spring pressure and the size of this orifice are calculated to ensure the plunger returns correctly in normal operation but can effectively cut off flow in the event of an excessive leak or fault.
Electromagnetic Fuel Injector: The electromagnetic fuel injector is the final component responsible for injecting fuel directly into the engine's combustion chamber at extremely high pressure and with precise timing and duration controlled by the ECM. The structure includes a nozzle needle valve, a control piston, an electromagnetic solenoid, and fuel passages.
Injector Closed State: When the injector's electromagnetic solenoid is not energized (not triggered by the ECM), the injector remains closed. In this state, a small ball valve controlled by the solenoid is closed, sealing a drain orifice from a control chamber above the needle valve control piston.
In this closed state, the common rail high pressure is present in the control chamber above the piston, pressing down on the control piston.
Simultaneously, the common rail high pressure is also present in the nozzle chamber below the needle valve.
The downward force exerted by the common rail high pressure on the control piston, combined with the force from a small spring (the nozzle spring), is greater than the upward opening force exerted by the high-pressure fuel on the tapered surface of the needle valve. This pressure balance holds the needle valve firmly closed, preventing fuel injection.
Injector Open State (Injection): When the ECM commands injection, the injector's electromagnetic solenoid is energized (triggered). This energizes the coil, creating a magnetic field.
The magnetic field lifts the armature, which pulls the small ball valve open. This action opens the drain orifice from the control chamber above the control piston.
Opening this orifice allows the high-pressure fuel in the control chamber to drain rapidly into an upper cavity and then return to the fuel tank via return fuel lines.
This rapid draining causes the pressure in the control chamber to drop significantly, reducing the downward force on the control piston.
With the downward force reduced, the upward opening force exerted by the high-pressure fuel in the nozzle chamber on the needle valve's tapered surface becomes dominant.
This pressure differential lifts the needle valve off its seat, opening the nozzle holes. High-pressure fuel is then sprayed as a fine mist into the combustion chamber – injection begins.
Injector Closing State (End of Injection): When the ECM commands the end of injection, the electromagnetic solenoid is de-energized (power is cut off).
A small spring within the solenoid mechanism pushes the armature and ball valve downwards. This action closes the drain orifice from the control chamber.
With the drain orifice closed, high-pressure fuel from the common rail flows back into the control chamber through a small inlet passage.
Pressure rapidly builds up again in the control chamber, re-establishing the common rail high pressure above the control piston.
The combined downward force from the high common rail pressure acting on the control piston and the force from the nozzle spring now exceeds the upward opening force on the needle valve.
This forces the needle valve back onto its seat, closing the nozzle holes and stopping fuel injection.
WP10.240 Fuel System Summary
Comparing the HPCR system to traditional mechanical diesel injection systems reveals fundamental differences and increased complexity.
Increased Electronic Components: Traditional diesel engines primarily relied on mechanical components to control injection timing, quantity, and pressure (e.g., using mechanical governors, timing devices, and injection pump plungers).
The high-pressure common rail system, in stark contrast, incorporates a large number of electronic components, including numerous sensors, the ECM, and electronically controlled actuators like the injector solenoids and metering valve.
This reliance on electronics makes the common rail system significantly more complex than its mechanical predecessors.
Interconnected and Complex Operation: The majority of the common rail system's working components are controlled by the ECM.
The ECM operates based on continuous feedback signals from various sensors monitoring engine conditions.
After processing this complex sensor data, the ECM outputs control signals to the actuators.
These actuators then execute precise movements to control the timing, duration, and quantity of fuel injection.
Due to this intricate network of sensors, the ECM, and actuators, the various components within the common rail system are highly interconnected, and their operational process is significantly more complex than the purely mechanical actions of traditional systems.
Troubleshooting Fuel System Faults: Diagnosis and Resolution
The sophistication of the electronic control high-pressure common rail system brings enhanced performance but also introduces new avenues for potential faults. Understanding the troubleshooting process for fuel-related issues in the WP10.240 engine is crucial for maintenance and diagnostics. Fuel system faults can manifest in various ways, most notably affecting engine starting, running stability, and power output.
Starting Difficulty Due to Fuel System Faults
Fault Symptoms: Engine starting difficulty can present in two main ways when related to fuel system faults:
No Combustion During Cranking: The engine crankshaft rotates at starting speed when cranked by the starter motor, but there are no signs of combustion (no "popping" sounds) and no smoke emitted from the exhaust pipe. This indicates that diesel fuel is not reaching the cylinders.
Intermittent Combustion During Cranking: The engine crankshaft rotates, and there are occasional or inconsistent combustion sounds. There might be a small amount of smoke, or a large amount of white smoke, from the exhaust, but the engine fails to start and run continuously. This indicates fuel is entering the cylinders but is not combusting correctly.
Fault Causes (No Combustion): The underlying cause of the first symptom (no combustion, no smoke) is a failure in fuel delivery to the cylinders. Potential reasons originating from the fuel system include:
Fuel Supply Issues: The fuel tank is empty; the fuel tank shut-off valve is closed; the fuel tank strainer is dirty or blocked.
Fuel Filter Blockage: The diesel fuel filter element is dirty and blocked, preventing fuel flow.
Fuel Transfer Pump Fault: The strainer at the transfer pump inlet is blocked; the piston spring within the transfer pump is broken; the piston is severely worn; or the piston or pushrod is stuck.
Air or Blockage in Fuel Lines: Air is present in the fuel lines (fuel system not properly bled); a fuel pipe is cracked or broken, causing air leaks or fuel leaks; a pipe joint is leaking or blocked.
Water/Wax Blockage: Water is present in the fuel lines, freezing in cold temperatures and causing blockages.
Incorrect Fuel Grade: The incorrect grade of diesel fuel is used for the ambient temperature (e.g., summer fuel used in winter), causing wax to precipitate and block fuel lines or filters.
High-Pressure Fuel Pump Damage: The high-pressure pump itself is damaged; there is air inside the high-pressure pump; the engine cannot drive the high-pressure pump (e.g., drive gear issue); the high-pressure pump plungers are severely worn.
Injector Failure (No Spray): The injector needle valve is stuck in the closed position; injector spray holes are blocked by carbon deposits.
Flow Limiting Valve Malfunction: The flow limiting valve between the common rail and the injector is stuck in the closed position (due to fuel contamination or sticking), preventing high-pressure fuel supply to the injector.
Low-Pressure Fuel Pump Failure: The low-pressure fuel transfer pump is malfunctioning, resulting in no fuel delivery to the high-pressure pump.
Incorrect Sensor Signals: Faulty signals from sensors are causing the ECM to command no fuel injection.
Fault Causes (Fuel Enters Cylinder, No Proper Combustion): The underlying cause of the second symptom (intermittent combustion, white smoke) is that fuel is delivered but combustion is incomplete or mistimed. Potential reasons from the fuel system or related controls include:
Delayed Injection Timing: The fuel injection timing is too late. This can be caused by low voltage to the ECM or poor electrical connections in the power supply lines; inaccurate signals from various sensors leading to incorrect injection advance angle correction by the ECM.
Insufficient Fuel Quantity: The amount of fuel injected is too small. This can result from blockages in the low-pressure fuel system, leading to insufficient fuel supply to the high-pressure pump; the low-pressure fuel pump malfunctioning; low voltage to the ECM or poor electrical connections causing the ECM to command a low injection quantity during starting or make incorrect timing corrections; insufficient high-pressure fuel pressure (rail pressure) leading to reduced injection quantity per stroke; the fuel inlet orifice to the injector's control chamber being restricted, lowering effective injection pressure; the solenoid controlling fuel metering on the high-pressure pump malfunctioning (e.g., signal wire fault causing it to stay open) resulting in the pump not delivering sufficient fuel pressure or quantity; a check valve in the common rail leaking, causing pressure to drop when the engine is stopped, requiring the system to repressurize fully before a successful start.
Poor Fuel Atomization: The fuel is not atomized into a fine mist during injection, leading to incomplete mixing with air and poor combustion. This can be caused by poor fuel quality; the injector itself malfunctioning; insufficient high-pressure fuel pressure (low rail pressure); the fuel inlet orifice to the injector's control chamber being restricted, affecting injection pressure and atomization quality.
Excessive Water in Diesel: The diesel fuel contains a level of water significantly exceeding standard limits.
Low Engine Temperature: The engine temperature is too low for proper combustion, and the preheating device (if equipped) is malfunctioning.
Fault Diagnosis (No Smoke - Low Pressure): When the engine fails to start with no smoke, the primary suspect is a failure in the fuel supply system preventing fuel from reaching the combustion chamber.
The diagnostic process should first determine if the issue is in the low-pressure or high-pressure section of the fuel supply system.
A simple check is to loosen the bleed screw on the fuel injection pump (high-pressure pump) and pump the manual priming pump (if present) or cycle the electric transfer pump.
If no fuel flows from the bleed screw, or if only foamy fuel flows, it indicates a fault in the low-pressure fuel system.
If fuel flows normally and without bubbles from the bleed screw, but there is no fuel sprayed from any injector, the fault lies in the high-pressure fuel system.
Low-Pressure System Diagnosis Procedure: If a low-pressure fault is suspected, follow these steps:
Check Fuel Tank and Lines: Verify the fuel level in the tank is not too low. Ensure the fuel tank shut-off valve is open. Check if the air vent in the fuel tank cap is blocked.
Check Low-Pressure Pump Operation: Check if the electric low-pressure fuel pump (in-tank or external) is running when the ignition is turned on or during cranking (a running sound should be audible). If the pump is not running, first check if it is receiving power. If there is no power, trace and fix the electrical issue. If the pump is receiving power, systematically loosen connections starting from the fuel outlet of the low-pressure pump towards the inlet of the high-pressure pump. Observe if low-pressure fuel flows from each loosened connection while the pump is running. If fuel flows freely from one connection but not from the next adjacent one, it indicates a blockage in the pipe or filter between those two points.
Check for Air in Low-Pressure System: Loosen the connection between the low-pressure fuel line and the high-pressure fuel pump inlet. Operate the low-pressure pump and observe if bubbles are present in the fuel flow. If bubbles are found, inspect all low-pressure fuel line connections for leaks (air leaks) and check the low-pressure pump itself for issues that could cause air ingestion.
Check Low-Pressure Pump Delivery Volume: To measure the pump's delivery capacity, disconnect the outlet pipe from the fuel pump and connect a hose leading into a measuring cup. Open the fuel metering valve (if applicable for testing) to allow free flow. Run the fuel pump until all air is expelled. Then, run the fuel pump for a specific number of rotations (e.g., 100 rotations of the drive shaft, or for a set time if electric) and measure the collected fuel volume. Compare this volume to the standard specification. If it falls below the standard, the low-pressure fuel pump is likely faulty.
Check Fuel Quality: Verify that the diesel fuel grade matches the engine's requirements and the operating temperature conditions. Importantly, check for the presence of water in the diesel. If the fuel grade is incorrect or if excessive water is present, replace the fuel.
High-Pressure System Diagnosis Procedure: If a high-pressure fault is suspected (fuel flows to the high-pressure pump but no spray from injectors), follow these steps:
Check Injector Spray Quality: Remove the fuel injector and install it on a standard test bench designed for common rail injectors. Activate the injector's electromagnetic solenoid using the test equipment and observe if the injector sprays fuel and assess the quality of the fuel atomization. If the injector does not spray or atomization is poor, the injector is faulty.
Check Common Rail Pressure: Check the common rail pressure sensor (measure its resistance value and sensitivity) and the pressure control solenoid valve (check its resistance value). Verify the electrical wiring connections for these components are normal. If any of these components or their wiring are abnormal, replace the faulty part.
Check Injector Control Chamber Orifice: Verify that the fuel inlet orifice to the injector's control chamber is not blocked or restricted.
Check Fuel Metering Solenoid Wiring: Check the signal wire for the fuel metering solenoid valve on the high-pressure fuel pump for normal electrical continuity and signal integrity.
Check Injector Flow Limiting Valve: Check if the flow limiting valve located between the common rail and the injector is malfunctioning (stuck or leaking) or stuck in the closed position, preventing high-pressure fuel supply to the injector.
Check Rail Check Valve Seal: Check if the check valve within the common rail is sealing properly. A leaky check valve can cause pressure loss when the engine is stopped, leading to starting difficulty as the system must re-pressurize fully each time.
Unstable Running Due to Fuel System Faults
Fault Symptoms: Unstable engine running can manifest in two main ways: unstable idling only, or unstable running at all engine operating conditions.
Symptoms of Unstable Idling: The engine shakes or vibrates excessively at idle speed, the engine speed fluctuates erratically, and the engine may easily stall at idle or have an excessively high idle speed.
Symptoms of Unstable Running at All Conditions: The engine runs unevenly across its speed range. This is often accompanied by black smoke from the exhaust pipe and knocking sounds, particularly noticeable and worsening during acceleration. The knocking sound may decrease or disappear at higher engine speeds but reappear at idle.
Fault Causes: Potential causes for unstable running originating from or affecting the fuel system include:
Uneven Fuel Injection: The quantity of fuel injected into each cylinder is inconsistent, or the fuel atomization quality varies between cylinders. This can be caused by carbon deposits blocking injector spray holes, inconsistent wear of injector plungers or needle valves, or needle valves failing to close properly or sticking.
Fuel Contamination (Water/Air): Water or air is present in the fuel, disrupting consistent combustion.
Sensor Signal Errors: Signals from the camshaft position sensor, engine speed sensor, or accelerator pedal position sensor are inaccurate or inconsistent, causing errors in injection timing control (e.g., excessive injection advance).
Injector Solenoid/Wiring Faults: Faults in the wiring or the electromagnetic solenoid of an individual fuel injector prevent the ECM from correctly controlling its operation, causing that cylinder to either not inject fuel at all or inject it with incorrect timing.
Flow Limiting Valve Sticking/Leaking: The flow limiting valve installed between a specific cylinder's injector and the common rail is sticking or leaking, causing poor fuel injection or no injection in that cylinder.
Fault Diagnosis Procedure: The first step in diagnosing unstable running is to determine if the issue is isolated to idling or affects all operating conditions.
Depress the accelerator pedal beyond the idle position. If the engine runs smoothly at all speeds above idle but is unstable only at idle, the fault is specific to idle speed control parameters or components.
If the engine runs poorly at various accelerator pedal positions (outside of idle), the fault affects engine operation across a wider speed range and is not limited to idle control.
Diagnosis for Any-Condition Instability: If the engine is unstable at various speeds, follow these steps:
Single Cylinder Cut-off Test: Perform a single-cylinder cut-off test (often possible using diagnostic software) to identify if a specific cylinder is malfunctioning. If a faulty cylinder is identified, inspect the fuel injector for that cylinder, its control solenoid valve, and check if the flow limiting valve between that injector and the common rail is stuck or leaking.
Check Low Fuel Pressure: Check if the fuel pressure in the low-pressure circuit is too low. If it is, inspect the fuel filter for blockage; check the fuel pump strainer for blockage; assess if the fuel pump's delivery capacity is insufficient; check if the fuel pump's safety valve spring tension is too low; check if the fuel inlet pipe is deformed; check if the fuel pressure sensor is faulty; check if the fuel return pipe is crushed or blocked.
Check Sensor Signal Accuracy: Check if the signals from the camshaft position sensor, engine speed sensor, and accelerator pedal position sensor are inaccurate or inconsistent.
Power Deficiency Due to Fuel System Faults
Power deficiency (lack of engine power) can occur in several ways related to fuel system issues in the WP10.240 engine, often accompanied by specific smoke characteristics or running behavior.
Symptom Type 1: Power Deficiency with Little Smoke and Even Running
Fault Phenomenon: The engine runs evenly with little exhaust smoke, but lacks power. Acceleration is sluggish, and the engine cannot reach its maximum speed.
Fault Cause: These symptoms indicate that combustion in the cylinders is relatively complete (hence little smoke) but the maximum fuel quantity delivered is insufficient for the engine to produce its rated power output. Specific fuel system causes include:
Low-Pressure Supply Issues: Blockages in the fuel filter, fuel transfer pump strainer, or fuel lines, leading to insufficient fuel supply in the low-pressure circuit.
High-Pressure Pressure Issues: The high-pressure fuel pressure regulating valve is faulty, or the high-pressure fuel pressure is below the standard required level, causing a reduction in the amount of fuel injected into each cylinder.
Injector Issues: Injectors have carbon deposits, affecting fuel flow; the diesel fuel grade does not meet the engine's requirements.
Sensor Signal Errors: The signal from an injector with a needle valve lift sensor is incorrect, or the accelerator pedal position sensor signal is inaccurate, causing the ECM to command insufficient fuel injection quantity.
Fuel Metering Solenoid Fault: The solenoid valve controlling the fuel metering amount on the high-pressure pump is faulty or blocked, resulting in insufficient fuel delivery by the fuel pump.
Fault Diagnosis Procedure: To diagnose this type of power deficiency, follow these steps:
Check Fuel Quality: Verify that the diesel fuel grade matches the engine's requirements.
Check Low/High Pressure Supply: Check for blockages in the fuel filter, fuel transfer pump strainer, or fuel lines, which would cause insufficient low-pressure fuel supply. Check if the high-pressure pressure regulating valve is faulty, leading to insufficient high-pressure fuel pressure and reduced injection quantity per cylinder.
Check Sensor/Control Issues: Check if the signal from the injector needle valve lift sensor is incorrect, the accelerator pedal position sensor signal is inaccurate, or the fuel pump metering control solenoid valve is faulty or blocked, all of which would result in insufficient commanded or delivered fuel injection quantity.
Symptom Type 2: Power Deficiency with White Smoke
Fault Phenomenon: The engine runs unevenly and lacks power, accompanied by grey-white or sometimes steamy white exhaust smoke.
Fault Cause: White or grey-white smoke, often accompanied by unstable running, typically indicates incomplete combustion due to issues like excessively late injection timing, poor fuel atomization, or water in the fuel. Specific fuel system or related causes include:
Excessive Water in Fuel: The water content in the diesel fuel is significantly above acceptable limits.
Low Engine Temperature: The engine temperature is too low for complete combustion.
Worn High-Pressure Pump Plungers: Severely worn plungers in the high-pressure injection pump lead to insufficient pressure and poor fuel atomization.
Sensor Signal Errors (Timing): Faulty signals from the engine speed sensor, oil temperature sensor, or accelerator pedal position sensor cause delays in the injection start signal, resulting in excessively late injection timing, which leads to incomplete combustion and can sometimes be accompanied by engine overheating.
Fault Diagnosis Procedure: To diagnose power deficiency with white smoke, which is generally caused by incomplete combustion, check the following:
Check Engine Temperature: Verify that the engine temperature is not too low.
Check Sensor Signals: Check if the signals from the engine speed sensor, oil temperature sensor, and accelerator pedal position sensor are correct.
Check High Fuel Pressure: Check if the high-pressure fuel pressure (rail pressure) is too low, which would cause poor fuel atomization.
Symptom Type 3: Power Deficiency with Black Smoke
Fault Phenomenon: The engine lacks power and emits black smoke from the exhaust pipe. Knocking sounds may occur when accelerating hard.
Fault Cause: Black smoke indicates incomplete combustion due to an excess of fuel relative to the available air, or poor mixing. This can be caused by injecting too much fuel, injecting fuel too early, or poor fuel atomization/distribution. Specific fuel system causes include:
Injector Faults: The injector needle valve is not closing properly or is stuck in the open position; the injector needle valve lift sensor is faulty, causing the needle valve to open too far; the injector's fuel atomization is poor.
Pressure/Flow Control Issues: The pressure limiting valve or flow limiting valve is malfunctioning, leading to excessively high fuel pressure or excessive fuel flow to the injectors, resulting in over-injection.
Sensor Signal Errors (Timing): Faulty signals from the engine speed sensor, oil temperature sensor, or accelerator pedal position sensor cause errors in the injection start signal, resulting in the fuel being injected too early or too late, which can contribute to incomplete combustion (early injection) or poor performance (late injection) and is often accompanied by engine overheating.
Fault Diagnosis Procedure: To diagnose power deficiency with black smoke:
Single Cylinder Cut-off Test: First, perform a single-cylinder cut-off test to identify if the fault is isolated to a specific cylinder.
Check Faulty Cylinder Components: If a faulty cylinder is identified, inspect the fuel injector for that cylinder and its related control circuit and electromagnetic solenoid.
Check Sensor/Control System: If no single faulty cylinder is found (issue affects all cylinders), check if the signals from the engine speed sensor, oil temperature sensor, and accelerator pedal position sensor are correct. Check if the pressure limiting valve and flow limiting valve are controlling accurately.
Engine Overspeed (Runaway) Due to Fuel System Faults
Fault Phenomenon: Engine speed becomes uncontrolled, increasing rapidly beyond the maximum design speed, often accompanied by loud, abnormal noises. This is a critical and dangerous condition.
Fault Cause: Engine runaway in a diesel can occur if there is an uncontrolled supply of fuel to the combustion chamber. In an electronically controlled system, this can result from multiple component failures allowing the engine to receive excessive fuel independent of the ECM's intended control. Specific fuel system faults causing runaway include:
Speed Limiter Fault: A fault in the speed limiting solenoid valve (if equipped).
Multiple Sensor/Valve Failures: Runaway typically occurs when multiple related components fail simultaneously, bypassing safety controls. This includes concomitant faults in the speed sensor, accelerator pedal position sensor, pressure limiting valve, flow control valve, and/or injector solenoids, allowing excessive, uncontrolled fuel delivery.
Fault Diagnosis Procedure: Diagnosing engine runaway requires immediate and safe engine shutdown first. Once safe, the diagnostic process focuses on identifying the components that failed to allow uncontrolled fuel delivery.
Inspect all components related to fuel quantity control and speed limiting: the speed sensor, accelerator pedal position sensor, pressure limiting valve, flow control valve, and injector solenoids. The failure of one or several of these components in a way that bypasses or overrides the ECM's control commands is the likely cause.
Advantages of WP10 HPCR System (Bosch Technology)
The WP10 engine's adoption of electronic control high-pressure common rail fuel injection technology, specifically leveraging Bosch technology (mentioned as originating from Bosch), provides significant advantages over traditional mechanical injection systems.
Independent Pressure Generation: In mechanical systems, fuel injection pressure is generated by the injection pump's plungers rising, and the opening pressure of the nozzle is determined by this pressure rise. Pressure is directly tied to engine speed.
With HPCR, injection pressure is generated and stored in the common rail independently of engine speed. This ensures stable high injection pressure is available across the entire operating range.
Independent Control: Fuel injection timing and quantity are independently controlled in HPCR systems. This allows for precise, random control over when and how much fuel is injected.
Multiple Injection Capability: HPCR systems can achieve sophisticated multiple injection strategies, including pre-injection (a small amount of fuel before the main injection to smooth combustion and reduce noise), main injection (the primary fuel delivery), and post-injection (small amounts after the main injection to manage emissions or soot). This tailored injection capability optimizes the combustion process for different engine requirements.
Sensitive Response: The electronic injection system offers rapid and sensitive response to changes in engine operating conditions, allowing for precise control across the entire speed range.
High Precision Injection: The accuracy of fuel quantity injection is extremely high due to electronic control.
Improved Atomization and Reduced Noise/Emissions: High injection pressures (up to 160 MPa mentioned as possible) lead to finer fuel atomization. Better atomization facilitates more thorough mixing of fuel and air, resulting in more complete combustion, which reduces emissions and combustion noise.
Reduced Pump Drive Torque: The high-pressure pump in a common rail system requires less drive torque compared to the pumping elements in a mechanical inline injection pump, potentially reducing parasitic losses and noise.
Compatibility for Upgrades: Common rail systems can often replace traditional mechanical injection pumps on existing engine structures with minimal changes to the engine's main components, facilitating technological upgrades and modifications.
In essence, while old mechanical pumps relied on mechanical linkages for relatively coarse control, the HPCR system uses sophisticated electronic control for extremely precise, responsive, and flexible fuel injection, leading to superior performance, efficiency, emissions, and NVH.
WP7/WP10 in Smart Slag Trucks: Application-Specific Adaptation
The Weichai WP7 and WP10 engines have found a significant niche in the market for new intelligent slag trucks (dump trucks used for transporting construction waste), specifically adapted to meet the unique demands of urban construction environments.
Market Need: The acceleration of urbanization and construction projects has increased the need for slag transport. Older slag trucks are being phased out due to issues like "running, leaking, dripping" (跑冒滴漏), polluting the environment. This has driven demand for new, environmentally compliant smart slag trucks.
Engine Suitability: The WP7 and WP10 engines are adapted for these new urban slag trucks (covering 240-350 horsepower range). They are highlighted for their advantages in this application: strong power, light self-weight, energy efficiency, environmental compliance, and high reliability. They are matched with 6x4 chassis from manufacturers like Shacman and Foton Auman and have gained market recognition.
Low-Speed High Torque: Slag trucks operate in complex conditions, including construction sites, requiring frequent climbing and starting. This demands high power, particularly low-speed high torque. The WP7 and WP10 engines offer strong low-speed torque, providing excellent climbing capability, reportedly allowing the truck to ascend the same grade in a higher gear compared to competitors.
Optimized Torque Range: To adapt to the combined demands of site work and urban road transport, Weichai has optimized and widened the maximum torque speed range. This improves power delivery and reduces the need for frequent gear changes, easing driver workload and increasing comfort. The WP7's max torque speed range can reach 1000-1400 r/min, while the WP10's is 1200-1700 r/min.
Improved Acceleration Response: Both WP7 and WP10 engines adapted for slag trucks feature a four-valve-per-cylinder structure. This design enhances acceleration response and further boosts power output by 10% compared to two-valve designs, contributing to quicker starts and safer overtaking ("大马拉小车" - a large horse pulling a small cart, a concept emphasizing ample power for the vehicle's task).
Intelligent Management Integration: New intelligent slag trucks are equipped with smart management systems. The WP7 and WP10 engines are integrated into these systems, supporting features like GPS/Beidou remote locking and fleet management.
Real-time Communication: The engine's ECU can communicate in real-time with the vehicle's intelligent system, allowing for monitoring and adjustment of vehicle speed.
Monitoring and Tracking: The system can check if the cargo cover is properly secured and remotely track transport routes and dumping locations, leveraging intelligent management to optimize operations and prevent issues like uncovered loads.
Addressing Overload Control: Overloading has been a persistent problem with older slag trucks. With stricter monitoring of overloading in new intelligent trucks, the amount of material transported per trip is reduced, impacting driver income. This has increased the focus on reducing the vehicle's self-weight to allow for more payload.
Lightweight Design: Weichai has implemented significant lightweighting measures on the WP7 and WP10 engines adapted for slag trucks. This is achieved through modular design, structural optimization, and the application of new materials, such as optimizing the crankshaft structure and installing cast aluminum flywheel housings.
According to Weichai, these efforts resulted in the WP7 achieving a self-weight of 630 kg and the WP10 reducing weight to 875 kg, making them over 20 kg lighter than comparable products from competitors.
Adaptation for Urban Environments: Slag trucks frequently operate in urban areas, making emissions and noise critical factors.
Emissions Compliance: The WP7 and WP10 engines use the electronic control high-pressure common rail + SCR (Selective Catalytic Reduction) technical route to meet China's National V (国五) emission standards. Compared to National IV products, the National V engines require slightly more urea injection for aftertreatment, but Weichai has optimized the system to use the minimum amount necessary to meet standards, reducing operating costs for users.
NVH Optimization for Night Work: Slag trucks often operate at night due to urban traffic restrictions. To minimize noise disturbance to residents, Weichai has optimized the NVH (Noise, Vibration, and Harshness) performance of these engines.
This includes optimizing the combustion system, injection strategies, and injection patterns, strengthening the engine block, and using noise reduction measures like anti-vibration attached plates, silicone oil fans (for cooling), and shear gears (in the timing train). These measures aim to reduce idle noise and create a quieter operating environment.
Reliability in Harsh Environments: Given the harsh operating environment of construction sites and urban roads, reliability is paramount. Weichai insists on using first-class component suppliers for these engines.
They have also made structural adjustments to enhance durability in challenging conditions, including using reinforced oil pans and exhaust pipes, strengthened pushrods and flywheel housings, and optimizing the water pump design. These measures improve the engines' adaptability to harsh conditions and reduce the failure rate, enhancing reliability.
B10 Life: The reliability efforts are reflected in the B10 life figures. The WP7 engine has a B10 life of 800,000 kilometers, while the WP10 engine has a B10 life of 1,200,000 kilometers (1.2 million km).

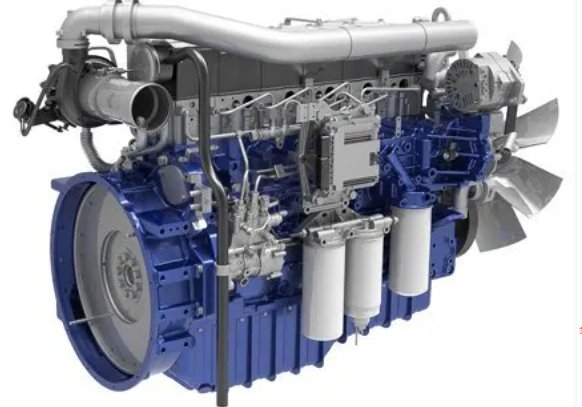

H Platform: Pushing the Boundaries of Durability and Performance
The Weichai H Platform represents a significant technological leap, focusing on achieving unprecedented levels of reliability and durability for high-speed heavy-duty engines. The WP9H and WP10H engines are the first products built on this advanced platform.
Core Requirement: Reliability and Durability: The fundamental needs of users in the high-speed heavy-duty segment are reliability and durability. Higher engine reliability translates directly into increased vehicle uptime and reduced operating costs, maximizing economic returns for users.
Setting New Standards: Launched in April 2016, the H Platform and its initial products, the WP9H and WP10H engines, were announced with a B10 life target of 1.8 million kilometers or 30,000 operating hours. This figure was presented as setting the new highest standard for B10 life in high-speed heavy-duty engines, aiming to elevate the entire segment towards premium levels of durability.
Reliability-First Design Philosophy: Reliability was the foremost priority from the initial design phase of the WP9H/WP10H. Leveraging Weichai's 35 years of experience in heavy-duty engine R&D and manufacturing, specific reliability and life targets were set for the entire engine assembly.
These overall targets were then meticulously broken down into detailed targets for each individual system and component, based on real-world usage data and extensive reliability research.
High-precision virtual prototyping and simulation techniques were employed to predict the reliability of each component and system during the design phase, ensuring the design specifications were robust enough to meet the overall engine reliability targets.
Rigorous Testing and Validation: Development relied on rigorous testing procedures, exceeding industry standards. Weichai utilized the National Key Laboratory for Engine Reliability, a facility representing the highest level of reliability R&D in China's internal combustion engine sector.
The durability assessment criteria were set significantly higher than those of industry peers. Product bench validation tests accumulated over 45,000 hours in total.
Additionally, a fleet of 300 vehicles equipped with these engines underwent road durability testing, accumulating over 50 million kilometers collectively.
Key Component Life Targets: These extensive tests contribute to the impressive component life targets.
Road Validation: The cumulative bench testing (over 45,000 hours) and road testing (over 50 million km across 300 vehicles) validated the design durability.
The stated life target of 30,000 operating hours for the WP9H/WP10H is equivalent to approximately 1,250 days of continuous operation (30000 hours / 24 hours/day).
The 1.8 million kilometer life target is equivalent to traveling around the Earth approximately 45 times.
Extreme Environment Testing: The engines and complete vehicles underwent rigorous extreme environment testing to validate performance under challenging conditions.
Without auxiliary measures, the engines could start normally at -20℃. With an auxiliary intake heating system, normal starting was demonstrated down to -35℃.
At an altitude of 4700 meters, the engines maintained normal power output in common operating conditions. They could also handle a 1.5% grade without downshifting, indicating robust power delivery.
H Platform "Black Technologies" for Longevity
The extended life and reliability of the H Platform engines are attributed to several advanced design features, highlighted as "black technologies":
Advanced Structural Design:
Gantry Cylinder Block: The cylinder block design adopts a "gantry" (龙门式) structure with a drum-shaped skirt ("鼓形裙部"), synchronized with the latest European concepts. This design enhances structural strength, allowing the block to withstand peak combustion pressures of up to 24 MPa.
Wet Top-Positioned Cylinder Liners: The design incorporates wet cylinder liners with top positioning and high-position cooling. This design lowers the temperature in the upper part of the cylinder liner, enhancing the reliability of the entire engine assembly by reducing thermal stress.
Four-Valve Integrated Cylinder Head with TOP-DOWN Cooling: The four-valve integrated cylinder head design features a "TOP-DOWN" cooling concept. Cooling water flows from the top downwards, directly cooling the areas with the highest thermal load within the cylinder head first. This effectively reduces thermal stress and provides better cooling protection for critical components like valve bridge areas, fuel injectors, and valve seat rings.
Side Camshaft and Compression Release Brake: The engine employs a side-mounted camshaft design. This configuration results in a shorter distance between the crankshaft gear and the camshaft gear, leading to a shorter and simpler transmission chain. A shorter chain means less wear and helps avoid reliability issues associated with overhead camshafts, such as higher noise and potential oil seepage between the cylinder block and cylinder head.
High Power Engine Brake: The design integrates a compression release engine brake ("压缩释放式制动") with a high braking power design, reaching up to 26 kW/L. This type of engine brake provides significantly higher braking efficiency (reportedly 50% higher) compared to exhaust brakes and eliminates the need for an exhaust brake butterfly valve, simplifying the system and enhancing reliability.
Fractured Cap Connecting Rods with Infinite Fatigue Life: The engines feature forged steel crankshafts and fractured cap connecting rods. These components are designed for high strength and have undergone "infinite life" fatigue testing validation, meaning they are designed to withstand repeated stress cycles encountered in normal operation without fatigue failure within the engine's projected lifespan.
Modular Integrated Oil Module: The engine's oil module integrates several functions: oil cooler, oil filter, rotor filter, water filter (likely coolant filter), and pressure limiting valve. This modular, integrated design significantly reduces the number of potential failure points compared to systems with separately plumbed components, thereby enhancing overall engine reliability.
Rotor Filter for Oil Cleaning: The integrated oil module includes a rotor filter. This component is effective at removing tiny impurities and soot from the engine oil, providing a higher level of oil cleanliness. Cleaner oil provides better lubrication and reduces wear on internal components, further enhancing engine reliability.
Long Oil Change Interval: The WP9H/WP10H engines are designed for extended oil change intervals of up to 100,000 kilometers.
Comprehensive Test Validation:
Extensive Bench Testing: The WP9H/WP10H engines underwent over 45,000 hours of cumulative bench testing in the National Key Laboratory.
Extensive Road Testing: 300 test vehicles equipped with these engines accumulated over 50 million kilometers of road testing.
Key Component Life: The rigorous testing validates the life targets of critical components.
Road Validation: The extensive bench and road testing confirm the durability targets in controlled and real-world conditions.
The 30,000-hour life translates to approximately 1250 days of continuous operation. The 1.8 million kilometer life is equivalent to circling the earth approximately 45 times, a compelling figure highlighting the designed longevity.
Extreme Environment Validation: Testing confirmed reliable performance in harsh climates.
Low Temperature Starting: Without auxiliary heating, the engines start normally at -20℃. With an auxiliary intake air heating system, normal starting is achieved down to -35℃.
High Altitude Performance: The engines maintain full power output in common operating conditions up to 4700 meters altitude. They also demonstrate strong performance on grades, capable of ascending a 1.5% slope without downshifting.
H Platform "Black Technologies" for Power
The H Platform engines are not just durable; they are also engineered for high performance, incorporating "black technologies" to deliver robust power and torque.
Power and Torque Range: The WP9H/WP10H engines offer a standard power output range from 290 to 400 PS.
For special applications, power output can reach up to 700 PS. Maximum torque is up to 1900 Nm.
High Specific Torque: The engines achieve a high specific torque (torque per liter of displacement) of up to 200 Nm/L. For special applications, torque can reach 2300 Nm.
Low-Speed High Torque: A key characteristic is strong low-speed torque, with the maximum torque speed extending down to 1000 r/min. This enables matching with smaller speed ratio rear axles, which allows the engine to operate at lower speeds during cruising, enhancing fuel efficiency.
WISE Autonomous ECU: The WP9H/WP10H are equipped with Weichai's proprietary WISE (Weichai Intelligent & Secure Electronic Control) autonomous ECU. This enables advanced control strategies.
Emergency Acceleration Strategy (EACC): The WISE ECU includes an Emergency Acceleration Strategy (EACC). This feature intelligently detects the driver's demand for rapid acceleration (e.g., flooring the pedal).
Upon detecting the need, the engine rapidly increases torque output, enabling faster acceleration and improved climbing capability, reducing the need to downshift on inclines, further enhancing power delivery and efficiency.
H Platform "Black Technologies" for Fuel Efficiency
Fuel efficiency is paramount in the heavy-duty segment, and the H Platform engines incorporate "black technologies" to optimize fuel consumption.
Mature HPCR and 4-Valve Technology: The engines feature mature electronic control high-pressure common rail technology and a four-valve-per-cylinder structure, foundational elements for efficient combustion.
Optimized Combustion Design: Through optimized combustion chamber design, the engines achieve industry-leading fuel injection pressures of 2000 bar (200 MPa).
Improved Mixing and Combustion: The optimized combustion chamber and intake port design facilitate more thorough mixing of fuel and air. This leads to more complete combustion and higher combustion efficiency, resulting in a minimum fuel consumption rate of 185 g/kWh, a highly competitive figure.
WISE ECU Intelligent Optimization: The WISE autonomous ECU implements intelligent optimization strategies within the engine's operating range.
Adaptive Cruise Control: These strategies include adaptive variable speed cruise control, allowing the engine to optimize operation based on road conditions.
Intelligent Grade Climbing: Features like road-adaptive intelligent grade climbing ("智能冲坡") optimize engine behavior on inclines for efficiency and performance.
Real-time Load Estimation: Real-time load estimation enables intelligent multi-power functions, adapting engine output to actual demand for fuel savings.
H Platform "Black Technologies" for Low NVH
Reducing Noise, Vibration, and Harshness (NVH) is crucial for driver comfort and environmental impact. The H Platform engines feature "black technologies" specifically aimed at lowering NVH.
Forward Control NVH Design: The design follows a "forward control" approach to NVH, aiming to reduce noise from the source and improve overall quality.
Structural Designs: Structural features contributing to lower NVH include the rear-mounted gear train and lower-positioned camshaft (compared to overhead camshafts).
Noise Control Measures: Various measures are implemented for noise control, including piston cooling control technology, optimizing combustion noise through multiple injection strategies (a capability of the HPCR system), and controlling noise from the transmission and accessory drives.
Reduced Engine Noise: Overall, the WP9H/WP10H diesel engines are designed to be significantly quieter than comparable displacement products, achieving 1 dBA to 3 dBA lower noise levels.
H Platform "Black Technologies" for Low Emissions
Meeting increasingly stringent emissions standards is a key challenge for diesel engines. The H Platform incorporates "black technologies" for effective emissions control.
Weichai Autonomous SCR Technology: The engines utilize Weichai's proprietary high-efficiency SCR (Selective Catalytic Reduction) control technology for managing NOx emissions.
Advanced Aftertreatment System: The exhaust aftertreatment system includes DOC (Diesel Oxidation Catalyst), DPF (Diesel Particulate Filter), and SCR components.
Unique DPF Regeneration Strategy: The system is equipped with a unique DPF regeneration strategy to effectively manage soot accumulation.
Emissions Compliance and Adaptability: This comprehensive aftertreatment system enables the engines to meet Euro VI emission standards. The basic engine design is common for both China National V (国V) and Euro VI applications, enhancing vehicle matching adaptability for different markets.
Market Success and Global Reach
The technical prowess of Weichai's WP10 and H Platform engines translates into significant market success and global recognition.
Partnership in Smart Slag Trucks: The successful adaptation and widespread adoption of WP7/WP10 in intelligent slag trucks demonstrate their capability to meet specific, demanding application requirements.
Their integration with leading truck manufacturers like Shacman and Foton Auman highlights strong industry partnerships.
Leadership in Diverse Applications: Weichai's dominance extends across numerous applications in China, including heavy-duty trucks, construction machinery, buses, agricultural equipment, and power generation. Their WP series, including WP10H, WP13H, WP15H, and the new H platform, are central to this leadership.
Leadership in Natural Gas Engines: Weichai also holds a unique and leading position globally in the market for high-horsepower natural gas engines.
Vertical Integration and Expansion: Through strategic acquisitions (like Linde Hydraulics) and integration (like Shacman Heavy Truck), Weichai has built a vertical integration advantage covering power systems and complete vehicles. They are actively expanding in overseas markets and pursuing new energy power solutions.
Global Market Presence: Weichai engines are found in diverse applications internationally.
Middle East Market Success: A notable example is the delivery of 1200 Yutong buses equipped with Weichai WP10 high-end engines to Saudi Arabia for Hajj transport.
Reliability for Demanding Operations: This large-scale procurement by the Saudi customer for Hajj transportation underscores the requirement for high vehicle attendance rates and the ability to withstand harsh conditions (high temperature, dusty environment).
The WP10 engine's safety, reliability, high efficiency, energy saving, and high attendance rate were key factors in its selection for these highway and city buses.
Long-Term Partnership: Weichai has cultivated a deep presence in Saudi Arabia over many years, establishing a parts center and deploying professional after-sales service teams, ensuring a comprehensive 24/7 service system.
This robust support infrastructure has built confidence with Saudi customers, leading to a decade-long partnership with Yutong.
The partnership anticipates breaking the 25% market share mark in the Saudi Hajj transport segment.
Adapting to Policy Changes: The implementation of new weight and dimension standards (GB1589) and overload control measures in China (like the 921 action in 2016) significantly impacted the trucking market, driving demand for lightweight vehicles.
WP10H for Lightweighting: In response, Weichai strategically launched the WP10H, highlighting its advantages in lightweight design, long life, ample power, and energy efficiency, directly contributing to overall vehicle lightweighting.
The calculated revenue increase per year for operators using the lighter WP10H in different applications demonstrates the economic benefit of weight reduction.
WP10H Performance Summary: The WP10H is summarized as having innate weight advantage, outstanding power (9.5L displacement with 11L-class torque), covering a wide range of applications (dump trucks, cargo trucks, tractors), and featuring mature technologies like HPCR, 4-valve design, optimized combustion (2000 bar injection pressure), new combustion chambers/ports, and low minimum fuel consumption (185 g/kWh).
Its B10 life of 1.8 million km/30,000 hours is re-emphasized as setting a high standard for reliability.
Industry Recognition: Weichai and the H Platform have received significant attention and awards, underscoring their technological leadership and market impact.
Marketing Engagement: Weichai actively engages with users through initiatives like online quizzes about engine technology and market applications, fostering technical understanding and brand loyalty.
Conclusion: Leaders in the Diesel Evolution
The Weichai WP10 and WP10H engines, far from being simple iterations, represent distinct yet complementary platforms that showcase Weichai's formidable capabilities in the heavy-duty diesel engine sector.
The WP10, a proven workhorse, embodies reliability and robust performance. The WP10H, built on the advanced H Platform, pushes the boundaries of durability, efficiency, and power density, specifically targeting higher-end applications and offering a compelling alternative to larger displacement engines.
Their extensive feature sets, from sophisticated electronic control common rail systems and advanced combustion designs to unique structural elements, comprehensive testing, and intelligent management integration, position them among the leading diesel engines globally.
While troubleshooting complexities are inherent in advanced electronic systems, the detailed diagnostic procedures and the underlying engineering principles are well-defined, reflecting a mature understanding of managing these technologies in the field. The objective reality is a set of powerful, complex, and highly capable engines designed for demanding applications.
The success of these engines in diverse applications, from urban slag trucks to international highway buses operating in harsh climates, underscores their adaptability and performance. Weichai's vertical integration, global service network, and continuous innovation, exemplified by the H Platform's "black technologies," solidify its position as a major force in the evolution of diesel power.
Even as new energy technologies gain traction, the ongoing advancements in efficiency, emissions control, and durability demonstrated by platforms like the WP10 and WP10H ensure that clean, high-performance diesel engines will remain critical powerplants for heavy-duty transport and industrial sectors for the foreseeable future.
For organizations and professionals involved in specifying, procuring, or maintaining heavy-duty engines for trucks, buses, construction machinery, or power generation, understanding the technical intricacies and proven capabilities of the Weichai WP10 and WP10H is essential.
To gain deeper technical insights, explore specific application suitability, discuss performance characteristics in detail, or inquire about the procurement of Weichai engine assemblies or components, connecting with knowledgeable contacts is invaluable.
For procurement and technical inquiries regarding Weichai WP10, WP10H, or other Weichai engine products and parts, please feel free to make contact.
Contact for Procurement & Technical Inquiry: William +86 186 6977 8647
