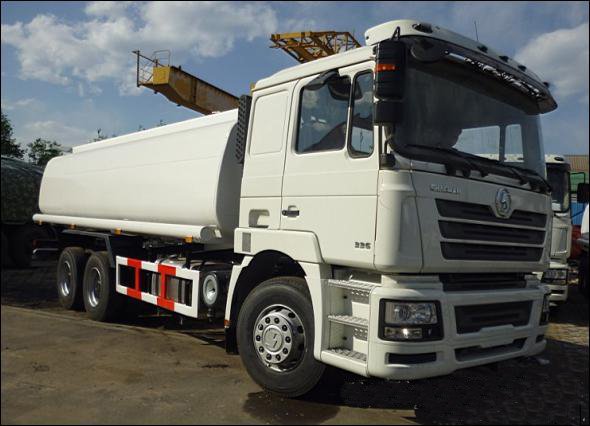

SHACMAN F3000 Sprinkler 15000L~18000L water tank truck
No.: Jim-208202
Vehicle Type: Water Tank Truck
Brand Name: SHACMAN
Person in charge: Jim yao
Cel: 0086 176 6971 7509
Whatsapp: 8617669717509
E-mail: sales29@chinatruck.cc
FREE GET QUOTE
Details
SHACMAN F3000 water tank truck from 15000L--18000L
MAN technology,Weichai engine,FAST gear box
Shacman F3000 6*4 Sprinkler Truck | ||
Traction type | LHD/RHD | |
Drive System | 6x4 | |
Cabin | F3000 flat cabin, air conditioner, one sleeping bed | |
Engine | Brand | Weichai |
Model | WP10.290 EuroIII | |
Rated power | 290hp | |
Engine displacement | 9.726 liters | |
Gearbox | 9JS119 | |
Clutch | Ф430 Diaphragm type | |
Steering | ZF Technology | |
Axle | Front | 7.5t MAN |
Rear | 13t MAN, double reduction, ratio: 4.8 | |
Max. running speed (km/h) | 90 | |
Tire | 12.00R20 radial tyre | |
Fuel tank | ||
Kerb weight (kg) | 10900 | |
Total mass (kg) | 25000 | |
Wheel base (mm) | 4575+1400 | |
Overhang (mm) (front/rear) | 1525/2600 | |
Track (mm) (front/rear) | 1939/1800 | |
Approach / departure angle(°) | 16/30 | |
Overall Dimensions（L*W*H）(mm) | 9800x2500x3400 | |
Options | ||
Water Tank:
Volume | |
Thickness | |
Material | Q235 |
Sprinkle type | Front spray water / Rear sprinkle water |
