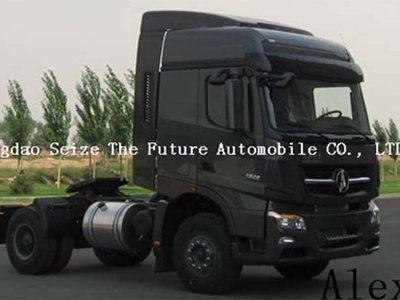

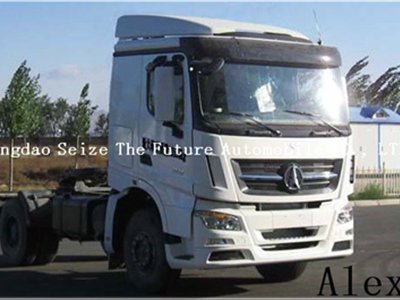

Beiben V3 4x2 340hp Tractor Truck

No.: danny---011

Vehicle Type: Tractor Head

Brand Name: BEIBEN

Beiben Trucks

Person in charge: Vincent Ge

Tel: Whatsapp: 008613173245675

Cel: 008618153209786

E-mail: sales1@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mr. Danny
Tel: 0086-532-80903896

Cel: 0086-18153209758

E-mail: sales21@chinatruck.cc

SPECIFICATION -----Beiben Tractor Truck

Cabin

Long and high cabin with A/C, two bed

Major color of cab: Ice white lacquer+ color bar, date red lacquer, dolphin grey

Vehicle Main Dimensions

L*W*H(mm)

6100x2500x3450

Wheel base(mm)

3500

Weight

in KGS

Tare Weight(kg)

5800kg

Trailer Total mass (kg)

18000kg

Driving Speed(km/h)


110

Engine

Brand

Weichai WP10.340E32

Max. output

340hp@2200rpm

Max torque

1250NM@1200-1600rpm

Gear box

Fast  12JSD160TA   12 speeds 2 reverse

Clutch

Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting

Tyre

Tyre

12.00R20.      6+1 Piece

Fuel tank

400L Aluminum Tank

Front axle

Mercedes Benz Technology, 7.5t Double-shoe pneumatic brake, non-driving steering axle

Rear axle

Mercedes Benz Technology, 13t  North Pennines after double reduction axle ratio 5.9 pairs of shoe pneumatic brake, hypoid gear drive axle, four U-bolts

Spring

13/13 Strengthened rear spring 22mm, 4-line U-bolt, Strengthened Push Rod, Strengthened Transmission Shaft

Saddle

3.5’’or 2.0’’

Made in China
