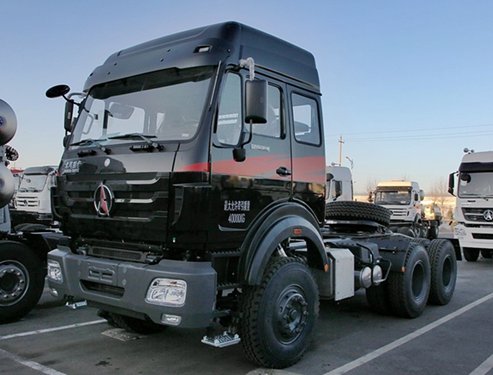

North Benz BEIBEN 6x4 WEICHAI Engine tractor truck head

No.: Kobe 1220

Vehicle Type: Tractor Head

Brand Name: BEIBEN

Beiben Trucks

Person in charge: Kobe Zhang

Cel: 0086 176 6971 7516

Whatsapp: 8617669717516

E-mail: sales30@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mr.Kobe Zhang
Tel: 0086-532-80903896
Cel: 0086-17669717516
E-mail: sales30@chinatruck.cc

North Benz BEIBEN Tractor Truck 6x4 WEICHAI Engine


Traction type: 6x4

Driving type: LHD(RHD is optioned)

Cabin: North Benz long cabin, one sleeper

Engine brand: Weichai

Engine model: WP12.420E32

Max. output: 420hp@308kW


Gear box: Fuller 12 speeds(12JS200T)

Steering: TAS85

Front axles: Benz 7.5ton

Rear axles: double reduction (5.263 ratio)

Tyre: 12.00R20

Spring: 13/13

Fuel tank capacity (L): 400

Max. speed (km/h): 90

Max. Gradability(%): 28

Kerb. mass: 9200 kg

Towing mass: 39670kg

Wheel base (mm): 3450+1450

Front overhang (mm): 1410

Rear overhang (mm): 625

Front track (mm): 1995

Rear track (mm): 1800

Approach angle: 20 degree

Departure angle: 64 degree

Dimension (mm): 6935x2495x3340

5th wheel: 3.5" (#90)

FREE Inquiry Now

If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.
