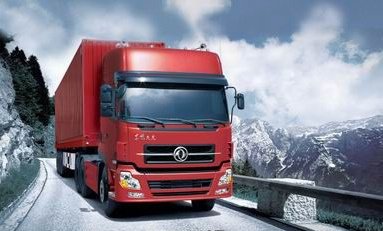

Dongfeng 6x4 Tractor Head

No.: 002

Vehicle Type: Heavy Duty Truck

Brand Name: DONGFENG

Dongfeng Trucks

Person in charge: Kobe Zhang

Cel: 0086 176 6971 7516

Whatsapp: 8617669717516

E-mail: sales30@chinatruck.cc

FREE GET QUOTE
ERWEIMA

Details

Traction type: 6x4

Driving type: LHD

Cabin: D310 cab, high roof with 2 sleeping beds. Electric & hydraulic cab lifting system. Pre-heating cold starting devices. Air-Conditioner.

Engine brand: CUMMINS (DONGFENG)

Engine model: L375 20            EURO II

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Max. output: 375hp@2200rpm

Gear box: Fast 12 speeds (12JS180TA)

Rated power: 331KW

Rated input torque: 1800N.m

Max. Rpm: 2600

Weight: 360kg

Ratio:

Low

High

Reverse

1

2

3

4

5

6

7

8

9

10

11

12

1

2

12.1

9.41

7.31

5.71

4.46

3.48

2.71

2.11

1.64

1.28

1.00

0.78

11.56

2.59

Clutch: Φ430 pull-type diaphragm spring clutch

Front axle: 7 tons front axle

Rear axle: 13tons strengthened axle single reduction without inter-wheel differential lock

Main ratio: 4.11

Frame: 300mmx80mmx (8+5)mm

Tyre : 12.00R20  radius tire

Spring: 3/10

Fuel consumption (L/ 100km ): 38

Fuel tank capacity (L): 400

Max. speed (km/h): 98

Max. gradeability(%): 28

Kerb. mass: 9950 kg

Total mass: 25000kg

Wheel base (mm): 3400+1350

Front overhang (mm): 1500

Rear overhang (mm): 810

Front track (mm): 2027

Rear track (mm): 1820

Approach angle: 18 degree

Departure angle: 32 degree

Dimension (mm): 7060x2500x3700

5th wheel: 2.0"(3.5" is optional)
