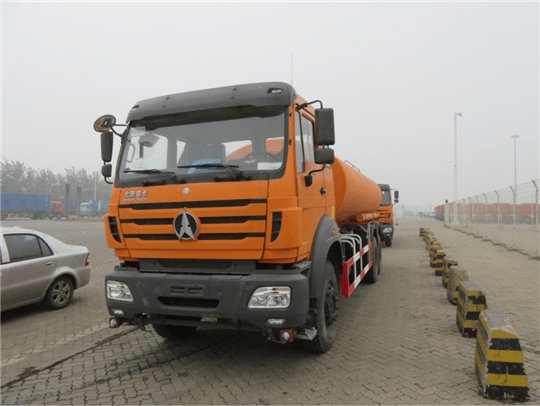

Cabin

NG80B Long cabin,two seat,with one sleeper, full steel structure cab, with air conditioner.

,Adjustable steering,air driver seat. Sun cover.

Engine

Diesel, 4-stoke direct injection,6-cylinder in line, Inner cooling,radiator, Turbo-charging

air compressor,two inlets cyclone air filter.

Model:

WP10.336

WEICHAI Engine

MAX Horse power:

336hp

Displacement(L):

9.726L

Max torque:

1250NM@Max 2200rpm

Fuel consumption(full load):

192g /kwh

Gear box

Fuller Technology

12JS160T

Axle(front/rear):         7.5Ton non-driving steering Front axle

Rear axle

13Ton driving axle, hub redactor, double reduction

Clutch

430 diaphragm type,single dry frictional disc.hydraulic boosting.

Brake

Service brake:  Double circuit penumatic(air) brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

TAS85-LHD

Electric  Equipment

Operating voltage:

24V negative grounded

Starter

24V,5.4KW

Alternator

28V,1.5KW

Battery voltage

2X12V/165Ah

Frame

Made of strengthened high intensity steel,parallel ladder with U-profiles,

Tyre

12.00R20            Tube tyre

Suspension system: heavy duty leaf spring type

Front/Rear

9/12

Overall dimension(mm):   9455x2500x3155,3375  (Length x width x height)

Wheelbase

4450+1450 mm

Track:

Front/Rear

1995/1800

Approach/Departure angle

26/25

Front /Rear overhang

1410/2415

Max speed

85km/h

Tare weight

12270kg

Diesel tank:

400L

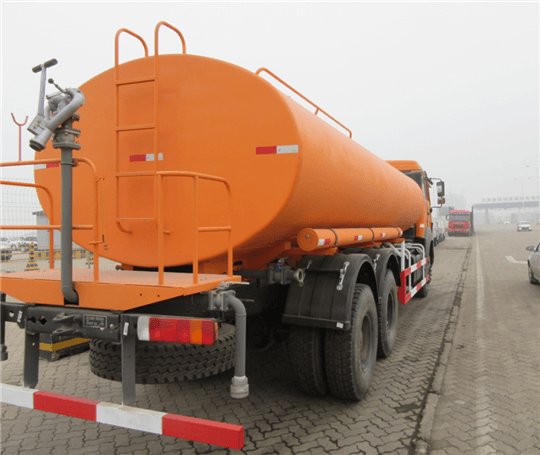

Tank Volume

18,000Liter

Compartments

3

Material of tank

Carbon Steel,
