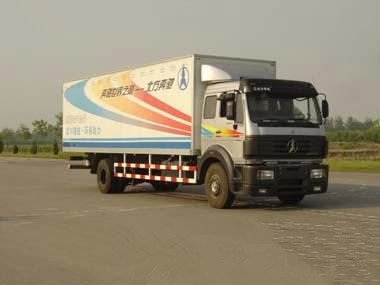

Beiben 4x2 300hp Cargo Van Truck
No.: Kobe-1608-23
Vehicle Type: Cargo Truck
Brand Name: BEIBEN
Person in charge: Kobe Zhang
Cel: 0086 176 6971 7516
Whatsapp: 8618562629532
E-mail: sales30@chinatruck.cc
FREE GET QUOTE
Details
Person in charge: Mr.Kobe Zhang
Tel: 0086-532-80903896-807
Cel: 0086-17669717516
E-mail: sales30@chinatruck.cc
Wheel base (mm) | 4800 | |||
Curb weight kg | 11660 | |||
Engine | Model | WP10.300N(300hp) | ||
Power, max kw/rpm | 220/2200 | |||
Max torque(Nm/rpm) | 1160/1100-1600 | |||
Emission standard | EUROIII | |||
Fuel tanker capacity L | 300 | |||
Clutch | Model | GFX420, Single dry frictional disc,Hydraulic boosting | ||
Gearbox | Mode | 9JS135 | ||
Transfer-case | VG1400(Benz technical,made by BEIBEN AXLE) | |||
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
Assistant brake | Engine exhaust brake | |||
Park brake | Potential springs pressing on middle and rear wheels | |||
Steering system | Model | TAS85 | ||
Frame of vehicle | Fish belly shape, variable width, variable section side beam structure | |||
Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||
Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||
Tyre | 12.00R20 | |||
Electrical system | Battery | 2X12V/135Ah | ||
Generator | 28V-35A | |||
Starter | 5.4Kw/24V | |||
Cab | Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure.Inner A/C and one sleeper bed | |||
