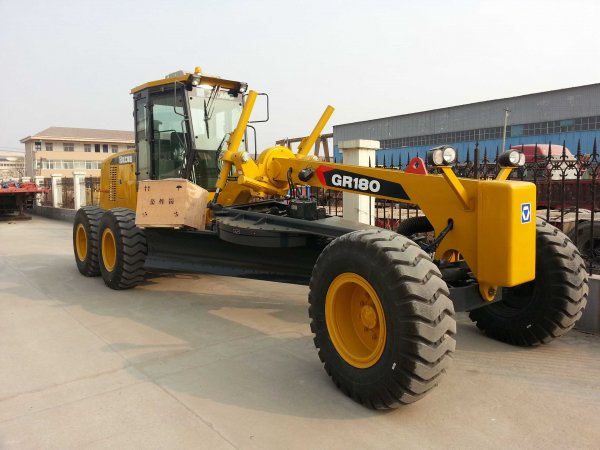

Hot Sales XCMG GR180 Motor Grader

No.: Jason-140825-12

Vehicle Type: Motor Grader

Brand Name: XCMG

XCMG Machinery

Person in charge: Deputy Director: Kevin Jiang

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9796

E-mail: sales17@chinatruck.cc

FREE GET QUOTE

Details


XCMG Motor Grader
ENGINE:CTAA8.3/SC8D190G2B1
OPERATING WEIGHT:15400KG


Motor Grader

Basic specification

Engine model6CTAA8.3 D6114
Rated power/speed138kW/2200  140kW/2300rpm
Dimension(LxWxH)8900×2625×3470mm
Operating weight(Standard)15400kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/h
Travelling speed ,reverse5,11,23 km/h
Tractive force(f=0.75)79KN
Max. gradeability20%
Tire inflation pressure260 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box15
Frame articulation angle±27°
Min. turning radius using articulation7.3m
Biade
Maximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28°—70°
Circle reversing rotation360°
Moldboard width X height3965×610mm
