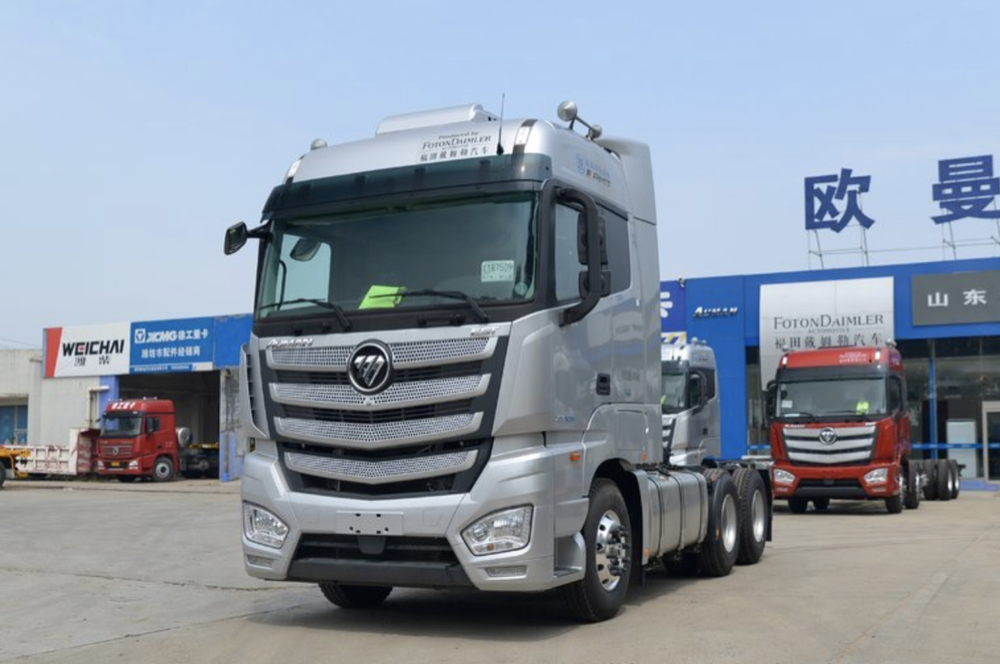

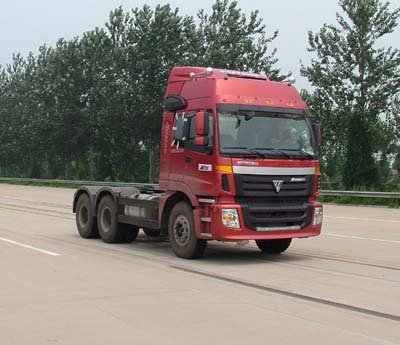

FOTON 6x4 Tractor Head

No.: 169

Vehicle Type: Tractor Head

Brand Name: JAC

FOTON Trucks

Person in charge: Kobe Zhang

Cel: 0086 176 6971 7516

Whatsapp: 8617669717516

E-mail: sales30@chinatruck.cc

FREE GET QUOTE

Details


Traction type: 6X4
Driving type: LHD (RHD is optional)
Cabin: high roof double sleepers, double doors, tippable (A/C is optional)
Engine brand: Steyr (Weichai)
Engine model: WD12.375
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. output: 375hp@2200rpm
Max torque: 1650NM@1300-1600rpm
Bore/Stroke(mm):126/155
Mean Position Speed: 9.53m/s
Compression ratio:15.5:1
Specific fuel consumption: 195g/Kwh
Gear box: Fuller 12 speeds (12JS180TA)
Clutch: Φ430 Diaphragm type
Steering: ZF technology
Rear axle: Steyr 13tons strengthened axle (punching-welding axle housing, double
reduction driving axle, inter-wheel differential and differential lock)
Frame: 286mmx80mmx8mm(inner: 280mmx70mmx7mm)
Tyre: 12.00-20
Spring: 9/12
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 380
Max. speed (km/h): 98
Max. gradeability(%): 25
Kerb. mass: 9500kg
Total mass: 25000kg
Wheel base (mm): 3300+1350
Front overhang (mm): 1525
Rear overhang (mm): 825
Front track (mm): 2020
Rear track (mm): 1800
Approach angle: 18 degree
Departure angle: 60 degree
Dimension (mm): 7030x2495x3460
5th wheel: 2.5"
