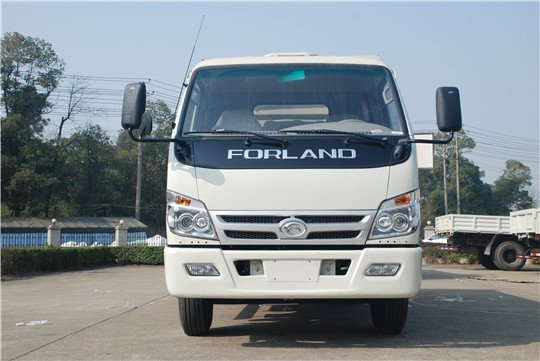

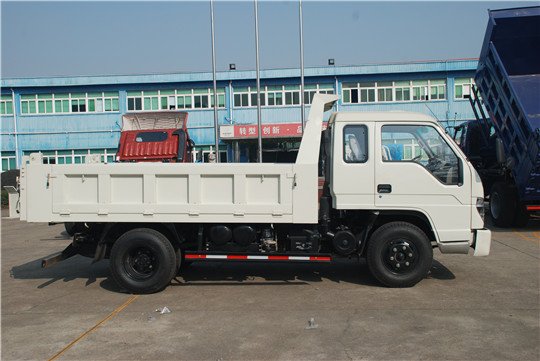

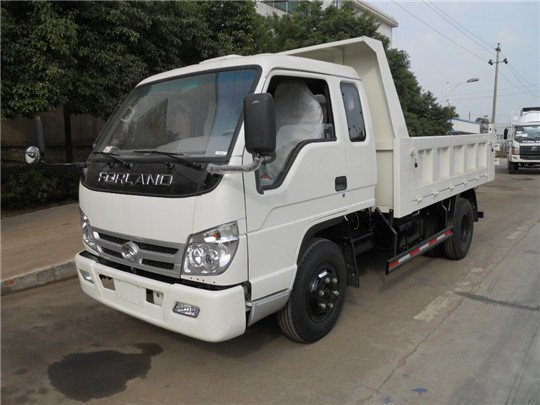

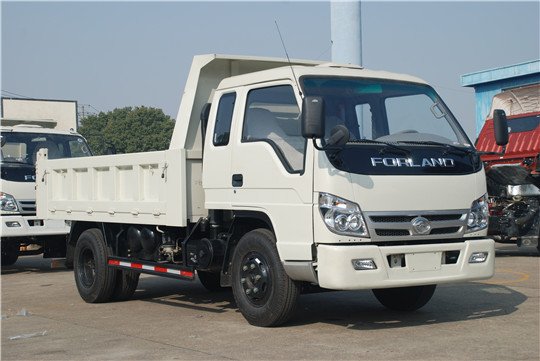

FOTON Forland 6 wheels 4X2 Light Dumper Truck 5T Tipper Trucks

No.: Angelia 10

Vehicle Type: Mini Tipper Truck

Brand Name: FOTON

FOTON Trucks

Person in charge: Angelia Sun

Cel: +8615269249286

Whatsapp: +8615269249286




Emission Standard Euro II

Cabin Single row, tiltable/1695(mm)

Whole vehicle main dimensions Overall dimensions (LxWxH)mm 5130×1960×2280

Inner dimensions of the cargo body (LxWxH)mm 3310×1860×600

Floor 3mm, Side &Back 2mm.

Driving type 4×2

Wheel base(mm) 2800

Wheel track (front/rear)(mm) 1387/1500

Weight data Curb weight(kg) 2980

Rated payload(kg) 3700

Max payload(kg) 5000

Persons in cab(persons) 2

Gross vehicle weight(kg) 6810

Whole vehicle main performance Max. speed(km/h) ≥75

Max. slope of climb(%) ≥30

Engine Model QC490Q(DI)

engine type 4 - cylinders, in-line, water-cooling, direct injection type diesel engine

Displacement(L) 2.54

Rated Power(kw) 45.6

Gearbox Model 17D32F1

Speed ratio Low gear:

Ⅰ=6.802,Ⅱ=3.878,Ⅲ=2.267,Ⅳ=1.424,Ⅴ=1.000,R=6.154High gear:Ⅰ=12.699,Ⅱ=7.240,Ⅲ=4.232,Ⅳ=2.659,Ⅴ=1.867,R=11.490

Clutch Type Diaphragm clutch,¢275

Rear axle Type/Main reducer ratio 1068/6.167

Steering gear recirculating ball type Brake system Service brake Hydraulic braking system Parking brake Central drum type Auxiliary brake /

Tyre size 7.50-16 Jack Type

Engineering project Electric device Rated voltage 24V
