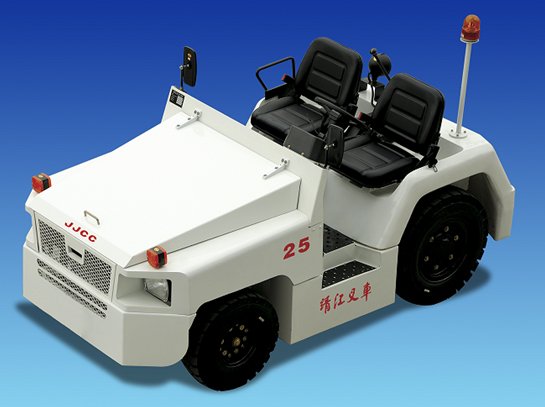

QCD25-KM Towing Tractor

No.: Angelia-4

Vehicle Type: Towing Tractor

Brand Name: JJCC

JJCC Towing

Person in charge: Angelia Sun

Tel: Whatsapp: 0086 532 6608 7516

Cel: 0086 152 6924 9286

E-mail: sales16@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Ms.Angelia Sun
Cel: 0086-18153209795

E-mail: sales16@chinatruck.cc

Whatsapp : 008615269249286


QCD25-KM  Towing TractorMain Technical Parameter


Manufacture


JJCC NISSAN technology

Model code


QCD25-KM

Max.drawbar pull

KN

25

Performance

Max.towed weight (at dry even concrete surface)

With one trailer

Kg

32000

Traveling speed

Forward

Km/h

25

Backward

Km/h

22

Max.gradeability

No load

%

38

Dimensions

Overall length (with coupler)

mm

3015

Overall width

mm

1440

Overall height

mm

1450

Wheelbase

mm

1620

Front overhang

mm

635

Rear overhang (with coupler)

mm

760

Front tread

mm

1250

Rear tread

mm

1200

Min.turning radius

Outer

mm

3000

Floor height

mm

425

Seat height

mm

980

Center height coupler

mm

350/405

Min.groud clearance

mm

165

tires

Tire size

Front


6.50-10-10PR(I)

Rear


7.00-15-12PR(I)

Weight

Truck weight (No load)

Kg

3900


Weight distribution

Front axle

Kg

1120

Rear axle

Kg

2780

Engine

Model


JAPAN MISUBISHI S4S

 Displacement

cm3

3331

Rated output

kw/rpm

47/2500

Rated torque

N.m/rpm

200/1600

Transmission (Automatic )Model


(EXEDY) KT

Transmission


Hydraulic Transmission

Steering


Integral Power Steering

Brake

Service Brake


Hydraulic Drum Brake

Parking Brake


Acting On Driving Wheel Brake

Japan Original NISSAN longitudinal arm independent suspension   type, coil spring and double direction hydraulich shock absorber on front axle can absorb shock energy .

Japan Original MITSUBISHI S4S Diesel Engine

  Japan Original EXEDY Automatic Transmission

  Enlarge Radiator &Torque Convertor oil Radiator Installation
