QCD20-KNM Towing Tractor
No.: Angelia1
Vehicle Type: Towing Tractor
Brand Name: JJCC
Details
Person in charge: Ms.Angelia Sun
My Whatsapp： 008615269249286
Cel: 0086-17669717501
E-mail: sales16@chinatruck.cc
My Whatsapp： 008615269249286
Cel: 0086-17669717501
E-mail: sales16@chinatruck.cc
QCD20-KNM Towing Tractor Main Technical Specifications
Manufacture | JJCC NISSAN technology | |||||
Model code | QCD20 KNM | |||||
Max.drawbar pull | KN | 20 | ||||
Performance | Max.towed weight (at dry even concrete surface) | With one trailer | Kg | 25000 | ||
Traveling speed | Forward | Km/h | 25 | |||
Backward | Km/h | 22 | ||||
Max.gradeability | No load | % | 38 | |||
Dimensions | Overall length (with coupler) | mm | 3015 | |||
Overall width | mm | 1440 | ||||
Overall height | mm | 1450 | ||||
Wheelbase | mm | 1620 | ||||
Front overhang | mm | 635 | ||||
Rear overhang (with coupler) | mm | 760 | ||||
Front tread | mm | 1250 | ||||
Rear tread | mm | 1200 | ||||
Min.turning radius | Outer | mm | 3000 | |||
Floor height | mm | 425 | ||||
Seat height | mm | 980 | ||||
Center height coupler | mm | 350/405 | ||||
Min.groud clearance | mm | 165 | ||||
tires | Tire size | Front | 6.50-10-10PR(I) | |||
Rear | 7.00-15-12PR(I) | |||||
Weight | Truck weight (No load) | Kg | 3450 | |||
Weight distribution | Front axle | Kg | 1160 | |||
Rear axle | Kg | 2290 | ||||
Engine | Model | JAPAN MISUBISHI S4S | ||||
Displacement | cm3 | 3331 | ||||
Rated output | kw/rpm | 47/2500 | ||||
Rated torque | N.m/rpm | 200/1600 | ||||
Transmission (Automatic )Model | (EXEDY) KT | |||||
Transmission | Hydraulic Transmission | |||||
Steering | Integral Power Steering | |||||
Brake | Service Brake | Hydraulic Drum Brake | ||||
Parking Brake | Acting On Driving Wheel Brake | |||||

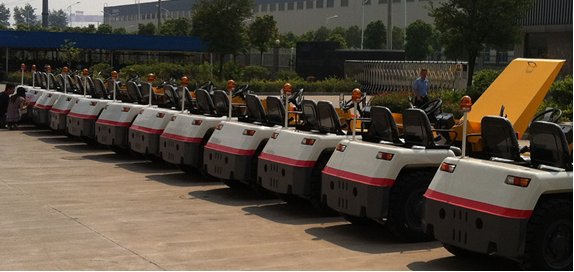

For NISSAN baggage tractor, we achieved the manufacture license of special vehicle and ground special equipment, which awarded by the General administration of civil aviation China. It is the first choice to replace the imported products, has entered the markets as follow ：China international airline, China eastern airline， China southern airline and State post service administration and China railway express company etc..
What’s more, a lot of products were exported to more than 20 foreign countries and got all favorable responses from our customers.
“Pursuit of excellence, satisfactory of customer” is our philosophy to establish the image of our enterprise and product.
