Construction Vehicle ISUZU 37m Concrete Pump Truck
No.: Sophia-2017-12-20
Vehicle Type: Concrete Pump Truck
Brand Name: SINOTRUK
Details

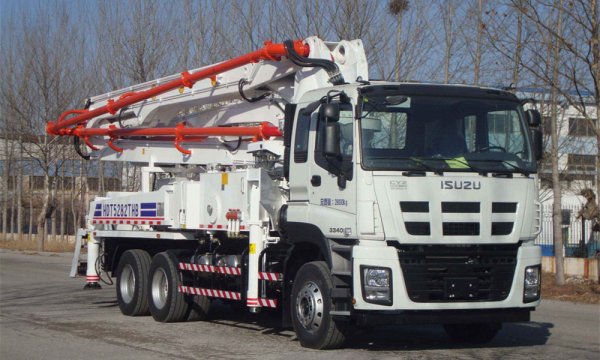

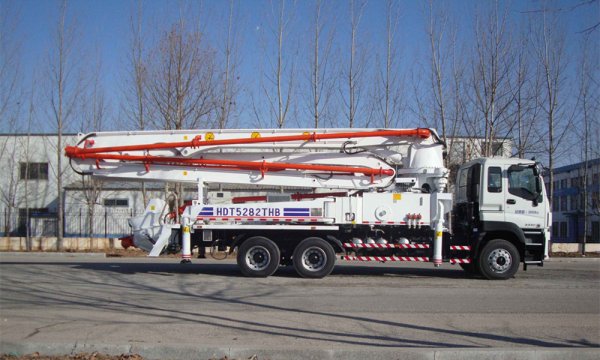

Construction Vehicle ISUZU 37m Concrete Pump Truck
Our advantages:
1. We have been dealing with trucks and construction machinery for more than 12 years. We can get good price from factory for long term cooperation.
2. We have our own spare parts department who are professional on spare parts to help deal with after sale issue, which can guarentee our after sale service.
Please be assure that we can provide you qualified products with good price and after sale service.
Techinical parameter:
37M | Chassis Model | ISUZU CYZ52Q | ||||||
Cross Weight | 28×103kg | Chassis Drive Model | 6×4 | |||||
Max. Running Speed | 80km/h | Cab with air conditioner Sleeper | ||||||
Wheel Base | 1st axle-2nd axle | 4565mm | ||||||
Outline | Total Length | 12200mm | 2nd axle- 3rd axle | 1370mm | ||||
Total Width | 2490mm | Tread | Front Wheel | 2065mm | ||||
Total Height | 3850mm | Back Wheel | 1850mm/1850mm | |||||
Engine | Engine | L-6 Six Cylinder In-Line | Tyre Size | 295/80R22.58 | ||||
in. turning radius | 8.9m | |||||||
Model | 6WG1G | braking distance | ≤10m/30km/h | |||||
Output Power | 294KW/1800rpm |
Boom | Type | Four Section Hydraulic Pressure | ||||
Max. Torque | 1863N.m/1300rpm | Max. Terrian Clearance | 36.6m | |||||
Emission Standard | Euro Ⅳ | Conveying Pump Diameter | DN125 | |||||
Gear-box Model | WJT7S | Terminal Soft Pipe Length | 4m | |||||
Discharge Capacity | 15681ml | The first section | Length | 8760mm | ||||
泵送系统 | Drive Mode | Hydraulic | Turn Angle | 1000 | ||||
Oil Cylinder Inner Diameter×Distance of Travel | φ115mm×2000mm | The Second Section | Length | 7910mm | ||||
Delivering Cylinder Inner Diameter×Distance of Travel | φ230mm×2000mm | Turn Angle | 1800 | |||||
Valve Type | S valve | The Third Section | Length | 7910mm | ||||
Concrete Output Volume in Theory | 125 m3/h | Turn Angle | 1800 | |||||
The Fourth Section | Length | 7960mm | ||||||
Pumping Pressure In Theory | 8.5Mpa | Turn Angle | 2400 | |||||
Boom Rotating Range | 3700 | |||||||
Pumping Times In Theory | 26 times/min | Max Distribute Radius | 32.6m | |||||
Max. Distribute Height | 36.6m | |||||||
Hydraulic System Pressure | 32MPa | |||||||
Lubricating Method | Oil Self-lubricate | |||||||
Bucket Capacity | 0.6m3 | Oil Tank Capacity | 600L | |||||
Load Material Height | 1.4m | Control | Manual operation/Remote Control | |||||
System Oil Pressure | 32MPa | Water PUMP Max. Water Pressure | 4MPa | |||||
Slump | 350px~575px | Water Tank Capacity | 700L | |||||
Max. Aggregate Size | 40mm | Hydraulic Oil Cooling Method | Air Cooling | |||||
Pump power ratio displacement | stepless | Concrete Pipe Washing Way | Water Scrubbing/ Dry cleaning | |||||
Delivery time: 30 work days after receipt of deposit.
Shipment: by RORO vessel.
Payment terms: T/T, 30% deposit and 70% balance before shipment or L/C at sight.
