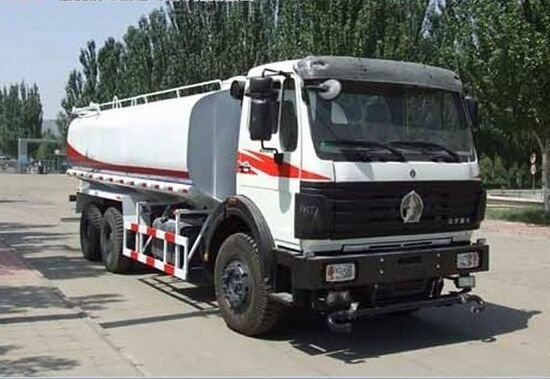

North Benz BEIBEN Water Tanker Truck 15000 Liters / 15 m3 Water Trucks

Brand: North Benz

Traction type:

Driving type: RHD / LHD

 Cabin:NG80B , One Sleeper

Engine brand: Weichai

Engine model: WD615.56 EURII

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. output: 270hp@2200rpm

Max torque: 1100NM@1300-1600rpm

Bore/Stroke(mm):126/130

Specific fuel consumption: 198g /Kwh

Gear box: Fuller 9 speeds  (9JS135B)

Clutch:  GF430 spring type

Steering: ZF8098

Front axle: Benz front axle

Rear axle: Benz driving axle with double speed reduction

Tyre : 12.00R20 (rim: 8.0-20)

Max. speed (km/h): 85

Kerb. mass: 11300 kg

Total mass: 25000kg

Fuel tank(L): 300L

Wheel base (mm): 4800

Front overhang (mm):1410

Rear overhang (mm): 2666

Front track (mm): 1995

Rear track (mm): 1800

Approach angle: 26degree

Departure angle: 22 degree

Dimension (mm): 10576X2500X3225

II. TANK

Capacity of tank: 15m3（including Pump）

Material: Q235B Normal black Steel metal sheets of in down of in down 5mm and side 4mm thickness
