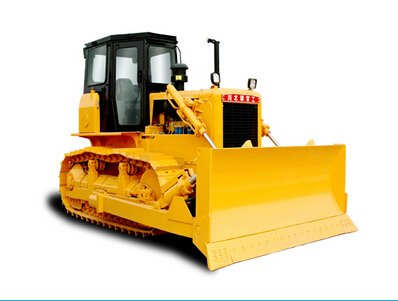

HBXG T140-1 Bulldozer

No.: Bella-07-30

Vehicle Type: Bulldozer

Brand Name: HBXG

HBXG Bulldozer

Person in charge: Bella Dai

Tel: Skype: bellabella6700

Cel: 0086 181 5320 9793

E-mail: sales22@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Ms.Bella Dai
Cel: 0086-18153209793
E-mail: sales22@chinatruck.cc



1、General Specifications

Blade

Straight and tilting

Angular Blade

Ground pressure:(kpa)

62.9

63.3

Min. ground clearance:(㎜)

400

400

Dozing capacity:(m3)

4.5

4.0

Max. digging depth:(㎜)

400

400

Operation weight:(kg)

16500

16600

Track gauge:(㎜)

1880

1880

Gradient:

30°/25°

30°/25°

Blade width:(㎜)

3297

3762

Overall dimensions:(L×W×H)(mm)

5336×3297×2842

5486×3762×2842

2、Undercarriage System

Type:

Swing type of sprayed beam, suspended structure of equalizer bar.

Number of track rollers(each side)

6

Number of carrier rollers(each side)

2

Pitch (mm)

203

Width of shoe (mm)

500

3、Gear



1st

2nd

3rd

4th

5th

Forward (Km/h)

0-2.52

0-3.55

0-5.68

0-7.53

0-10.61

Backward (Km/h)

0-3.53

0-4.96

0-7.94

0-10.53



4、Engine

Engine Name

Weichai WD10G156E26

Rated revolution:(rpm)

1800

Flywheel power (KW)

104

Max. torque:(N.m/rpm):

780/1200

Rated fuel consumption:(g/kw.h)

≤215

5、Implement Hydraulic System

Max. system pressure (MPa):

11.76

System output(L/min)

180

Pump type:

Two groups Gears pump

6、Driving System

Main clutch:

Normally opened, wet type, hydraulic booster control.

Transmission:

Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.

Steering clutch:

Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.

Braking clutch:

Brake is oil two direction floating band brake operated by mechanical foot pedal.

Final drive:

The final drive are double reduction with spur gear and   segment sprocket, which are sealed by duo-cone seal.
