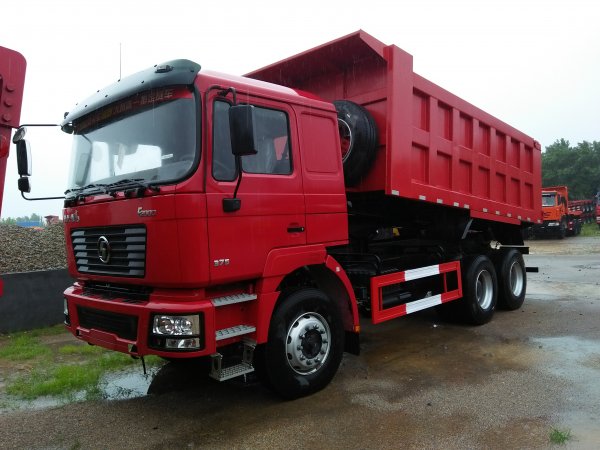

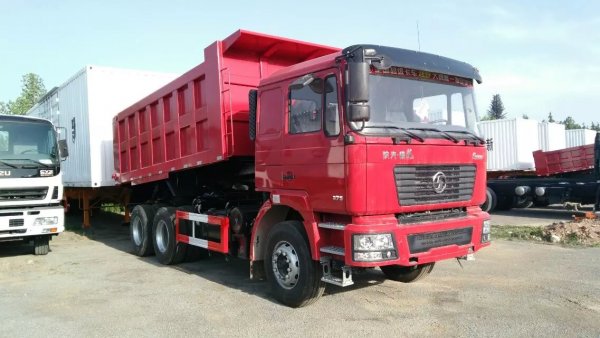

SHACMAN F2000 6X4 25t Dump Truck Sand Tipper Truck For Sale

No.: David-07291

Vehicle Type: Dump Truck

Brand Name: SHACMAN

Shacman Trucks

Person in charge: David Ma

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9783

E-mail: sales20@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Mr.David Ma

Tel: 0086-532-66087516

Cel: 0086-18153209783

E-mail: sales20@chinatruck.cc

SHACMAN DeLong F2000 6X4 WEICHAI 3400HP DUMP TRUCK


Model

SX3251JP384

Traction type

6x4

Drive System

LHD

Cabin

F2000 Flat Cabin, one sleeper, Air Conditioner

Engine

Brand

WEICHAI

Model

WD615.34  EURII

Rated power

340hp

Engine displacement

9.726 liters

Gearbox

FAST 9 Speeds (9JS135)

Clutch

Ф430 Diaphragm type

Steering

ZF technology

Axle

Front

7.5 Ton Man axle

Rear

13 Ton STR double reduction axle, ratio:5.73

Max. running speed (km/h)

77

Tire

12.00R20, 12R22.5

Fuel tank

380L

Kerb weight (kg)

12100

Total mass (kg)

25000

Wheel base (mm)

3800+1350

Overhang (mm) (front/rear)

1525 / 1654

Track (mm) (front/rear)

1939/1860

Approach / departure angle(°)

20/20

DimensionsL*W*H(mm)

Overall

8329x2490x3450

Dump body

5600x2300x1500(19.3cbm)

Thickness (mm)

Bottom 8 , side 6 (thickness is optional)

Hydraulic lifting system

Middle lifting
