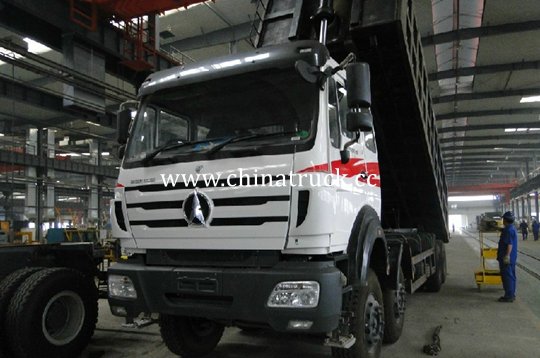

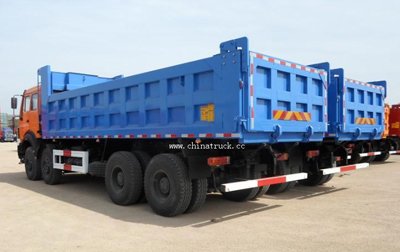

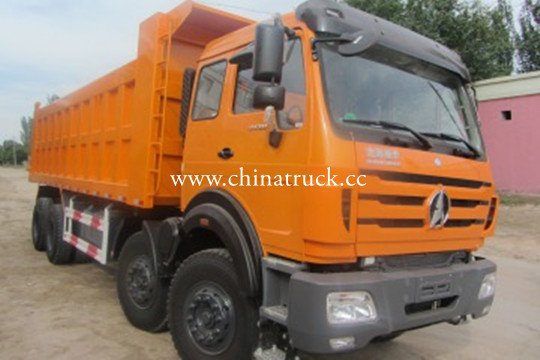

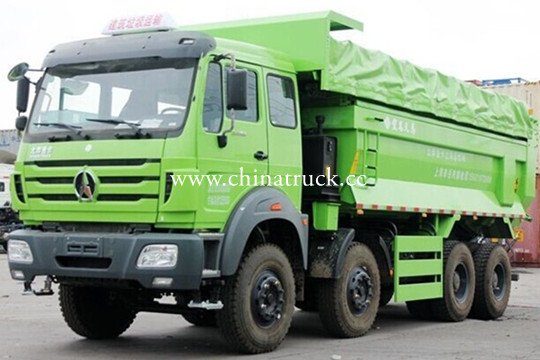

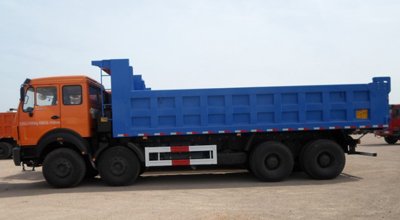

Beiben Brand New 12 Wheel Dump Truck Loading Capacity

No.: Jane-0901

Vehicle Type: Dump Truck

Brand Name: BEIBEN

Beiben Trucks

Person in charge: Jane Song

Tel: 0086 532 6608 7516

Cel: 0086 181 5320 9769

E-mail: sales23@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Ms.Jane Song
WhatsApp: 008615589892733
Cel: 0086-18153209769
E-mail: sales23@chinatruck.cc

Beiben Brand New 12 Wheel Dump Truck Loading Capacity

Announcement Type

ND3315D47J

Drive Type

8x4

Wheelbase

1500+4750+1450mm

Overall length

11.3m

Overall width

2.5m

Overall height

3.5m

Total mass

31t

Curb weight

15.1t

Track

Front track: 1995/1995mm    Rear track:1800mm

Front / rear overhang

1410/1906(mm)

Rated load

50t

Origin

Baotou

Approach angle

26 degrees

Departure angle

19 degrees

Engine

Engine Model: Weichai WP10.336NE31,

Number of cylinders:6,

Fuel type: Diesel fuel

Displacement:9.726L

Emission standards: Country, three / Europe

Horsepower:336hp

Maximum output power:247KW

Transmission

Transmission Type: Fast Gear 12JS160T

shift modes: manual

Is there Synchronizer: Yes

Reverse gear:2
Forward gear number:12

Chassis

Rear axle permissible load: 18000KG
Spring: 12/12/13

Tire

Number of tires:12+1(spare tire)

Tire Size: 12.00 R20

Tank

Fuel tank capacity:300L

Body

Inner size(mm):8200x2300x1500

Thickness of body steel(mm): floor 8 side & back 4

Tipping type: Front tipping type( in the front body with HYVA  tipping system HOLLAND technology)
