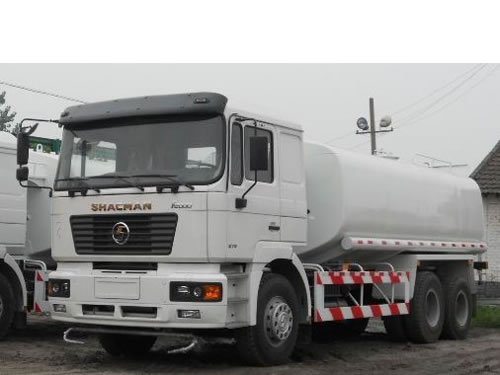

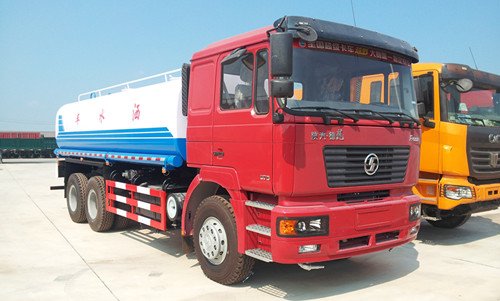

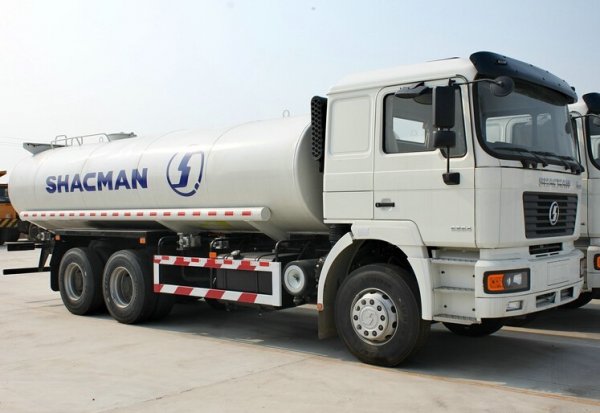

SHACMAN 15000L~18000L water tank truck
No.: David-30A
Vehicle Type: Water Tank Truck
Brand Name: SHACMAN
Details
Person in charge: Mrs. Sophia Li
Cel: 0086-17669717526
Tel: 0086-532-66087516
E-mail: sales15@chinatruck.cc
SHACMAN 15m³~18m³ water tank truck
CHASSIS
Shacman F2000 6*4 Sprinkler Truck SX1254JM434 | ||
Traction type | LHD | |
Drive System | 6x4 | |
Cabin | F2000 flat cabin, air conditioner, one sleeping bed | |
Engine | Brand | Weichai |
Model | WD615.50 | |
Rated power | 280hp | |
Engine displacement | 9.726 liters | |
Gearbox | 9JS119 | |
Clutch | Ф430 Diaphragm type | |
Steering | ZF Technology | |
Axle | Front | 7.5t MAN |
Rear | 13t MAN, double reduction, ratio: 4.8 | |
Max. running speed (km/h) | 90 | |
Tire | 12.00-20 | |
Fuel tank | ||
Kerb weight (kg) | 10900 | |
Total mass (kg) | 25000 | |
Wheel base (mm) | 4325+1350 | |
Overhang (mm) (front/rear) | 1525/2600 | |
Track (mm) (front/rear) | 1939/1800 | |
Approach / departure angle(°) | 16/30 | |
Overall Dimensions（L*W*H）(mm) | 9800x2500x3400 | |
Options | ||
Water Tank:
Volume | |
Thickness | |
Material | Q235 |
Sprinkle type | Front spray water / Rear sprinkle water |
