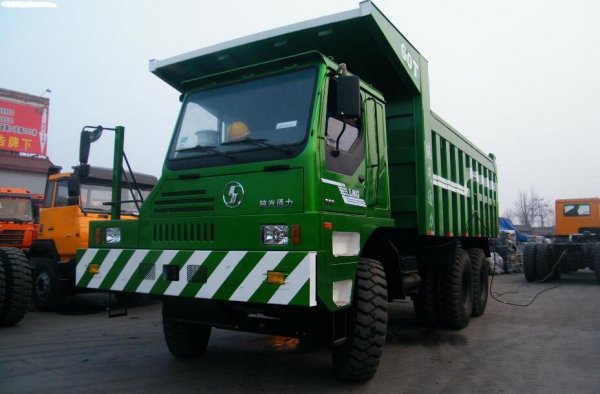

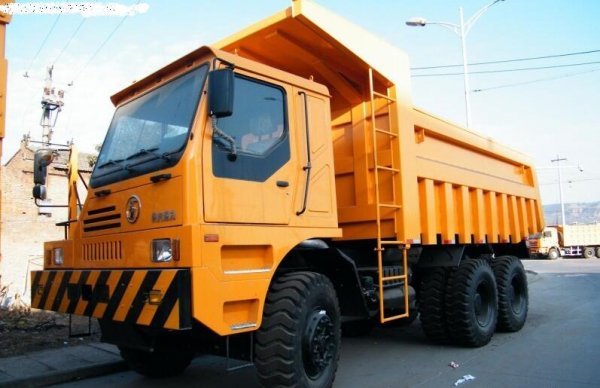

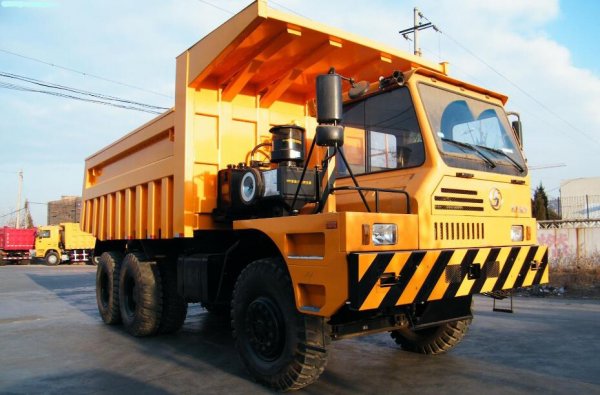

SHACMAN 50 tons Mining dump truck

Shacman Mining Tipper Truck

1.Traction type: 6X4
2.Driving type: LHD (RHD is option)
3.Cabin: single side cabin

Engine:
Engine brand: Steyr (Weichai)
Engine model: WD12.375 375HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 375HP@2200rpm
Max torque: 1760NM@1300-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh

Gear box:
Gear box: Fuller 10JSD180K-B
Clutch: Φ 430 pull-type diaphragm clutch
Steering: ZF technology

Tyre:
Tyre: 14.00R24
No. Of tyre: 10+1spare

Front axle: Steyr 12 ton front axle
Rear axle: MAN technology 25 ton double reduction driving axle

Spring: 12/14
Fuel tank capacity (L): 380
Max. Speed (km/h): 77
Kerb. Mass: 14200kg
Total mass: 30700kg
Wheel base (mm): 3800+1350
Front overhang (mm): 1525
Rear overhang (mm): 2054
Front track (mm): 1939/1939
Rear track (mm): 1860/1860
Approach angle: 20 degree
Departure angle: 28 degree
Dimension (mm): 8500x3000x3450

Body:
Inner size(mm): 5600x3000x1500
Thickness of body steel(mm): Floor 14 mm side 10mm
Tipping type: Front tipping type( in front of the body with HYVA tipping system Holland technology ).
