Driving type

Right Hand Driving

Overall Dimension(Lx W xH)

7240×2500×3530

Wheel base(mm)

3450+1450

Curb weight(kg)

8800

Front overhang/rear overhang (mm)

1515/825

Approach angle/Departure angle

16/60

Engine Steyr technology,

made in China

WP10.380E32

Diesel, 4-stoke Direct injection,6-cylinder in

line, radiator, turbo-charging, water-cooling, EGR(Exhausted Gas Recycling)

Displacement(L)

9.726

Bore X stroke (mm)

126mm/130mm

Max power(kw/rpm)

380HP/280kW

Max torque(Nm/rpm)

1600NM@1500~1800

Min rate of consuming fuel

(g/(kw.h))

196g/kW.h

Emission Standard

EURO III

Max speed(km/h)

110

Fuel tanker(L)

400 Al fuel tank

Clutch

Model

D430 diaphragm type

Gearbox

Brand

Fuller (Fast)

Model

12JS200T

Shift mode

12 forward speeds;

2 reverse speeds

Steering system

Model

TAS85

Frame

317mmx70mmx8.5+7+12mm

Front axle

7.5T front non-driving steering axle

Middle and Rear axle

13T double reduction driving axle, inter-wheel differential lock

Tyre

12.00R20 Radial Tire

Number of tyre

10+1 spare

Suspension

Leaf spring type

Front/rear: 13/13

Fifth wheel

90mm (3.5inch)

Color

White

Electrical

Battery

12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

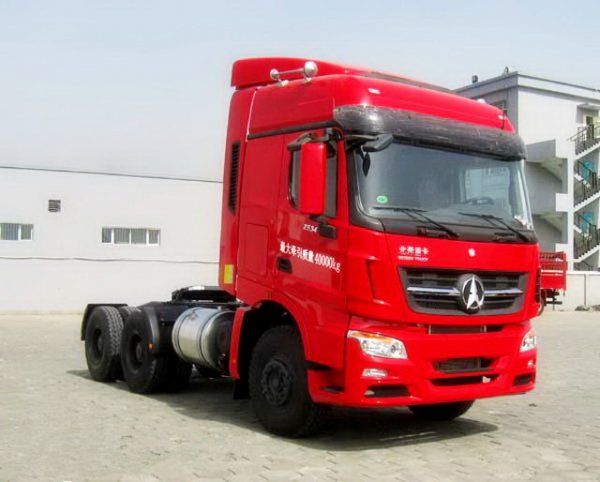

Cabin

Beiben V3 long and high cabin with two sleep and air-conditioner
