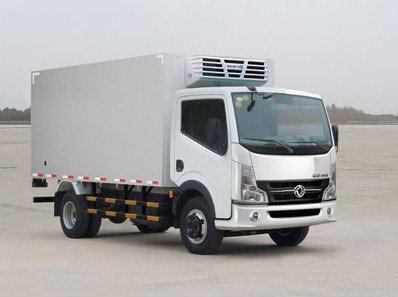

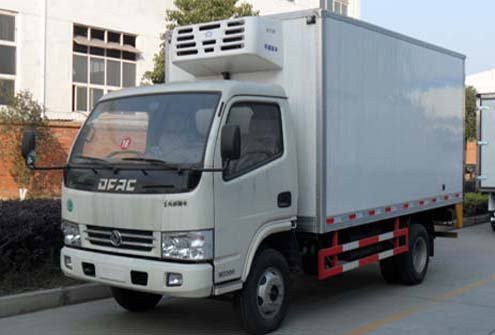

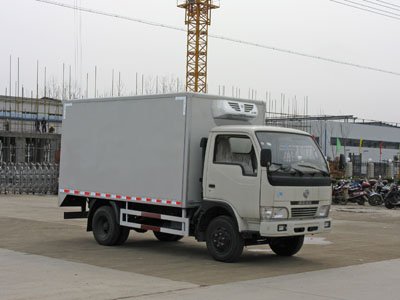

Dongfeng 4x2 Refrigerated van truck for sale
No.: Claudia 16-10-25-5
Vehicle Type: Refrigerator Truck
Brand Name:
Person in charge: Kobe Zhang
Cel: 0086 176 6971 7516
Whatsapp: 8618562629532
E-mail: sales30@chinatruck.cc
FREE GET QUOTE
Details
Person in charge: Mr.Kobe Zhang
Mobile/Whatsapp: 008618562629532
Email: sales30@chinatruck.cc
Product Description
1. DONGFENG 4X2 chassis;
2. DONGFENG diesel engine, EuroIII, 120hp;
3. Box size: 4090*1910*1810
4. Payload 1.5tons, temperature-18C
Vehicle models | EQ5040XLC4BDDAC | Chinese brands | DONGFENG |
Engine model | ZD30D14-3N ZD30D14-3D | Engine manufacturers | Dongfeng Engine Co.,ltd. |
Displacement(L) | 2.953 | Engine power(kw) | 103 |
Overall dimension(LxWxH)(mm) | 5990×1990×2860 | Freezer box in size | 4090×1910×1810 |
The total mass | 4495 | In the quality of the utilization factor | 0.60 |
Kerb mass (kg) | 2805 | Rated Payload(kg) | 1495 |
Cabin | Single | Passengers | 3 |
Approach/Departure angle | 21/18 | Front/Rear overhang(mm) | 1068/1572 |
Wheel base(mm) | 3350 | Axle loading(kg) | 1905/2590 |
Axle(pcs) | 2 | Leaf spring(pcs) | 6/5+5 |
No.of Tires(pcs) | 6 | Tire Model | 7.00R16LT |
Front track(mm) | 1598,1562 | Rear track(mm) | 1458 |
Transmission type | Manual | Max.Speed(km/h) | 120 |
Chassis model | EQ1040SJ4BDD | ||
Other features for refrigerator cooling van truck :
A. Refrigerator unit Brand Optioanl : American CARRIER ,THERMO KING, South Korea hanya,
China Songhan,hanxue,etc.
B. Minimum temperature optional: 5 °C to -18 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working,
low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance
and other advantages, it will sure you use safe!
Packing&Shipping
Delivering time: 30days after receiving 30% deposit by T/T
Payment: 30% deposit by T/T before production and 70% balance by T/T
before shipment or L/C at sight
Shipment: by vessel/Validity of the pricelist: 30 days
