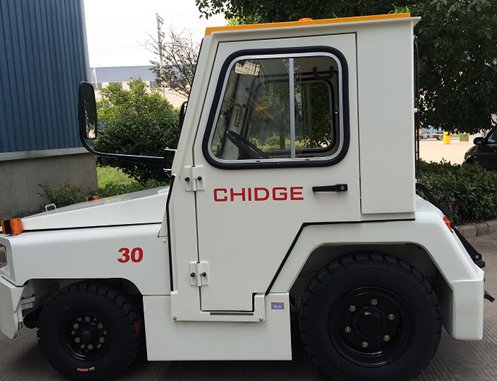

QCD30-KM Towing Tractor

No.: Angelia -4-2

Vehicle Type: Towing Tractor

Brand Name: JJCC

JJCC Towing

Person in charge: Angelia Sun

Tel: 0086 532 6608 7516

Cel: 0086 152 6924 9286

E-mail: sales16@chinatruck.cc

FREE GET QUOTE

Details

Person in charge: Ms.Angelia Sun
Cel: 0086-18153209795
E-mail: sales16@chinatruck.cc

My Whatsapp : 008615269249286

QCD30-KM  Towing Tractor Main Technical Parameter

Manufacture


JJCC NISSAN technology

Model code


QCD30-KM

Max.drawbar pull

KN

30

Performance

Max.towed weight (at dry even concrete surface)

With one trailer

Kg

38000

Traveling speed

Forward

Km/h

25

Backward

Km/h

22

Max.gradeability

No load

%

35

Dimensions

Overall length (with coupler)

mm

3015

Overall width

mm

1440

Overall height

mm

1450

Wheelbase

mm

1620

Front overhang

mm

635

Rear overhang (with coupler)

mm

760

Front tread

mm

1250

Rear tread

mm

1200

Min.turning radius

Outer

mm

3000

Floor height

mm

425

Seat height

mm

980

Center height coupler

mm

350/405

Min.groud clearance

mm

165

tires

Tire size

Front


6.50-10-10PR(I)

Rear


7.00-15-12PR(I)

Weight

Truck weight (No load)

Kg

4400


Weight distribution

Front axle

Kg

1080

Rear axle

Kg

3320

Engine

Model


JAPAN MISUBISHI S4S

 Displacement

cm3

3331

Rated output

kw/rpm

47/2500

Rated torque

N.m/rpm

200/1600

Transmission (Automatic )Model


(EXEDY) KT

Transmission


Hydraulic Transmission

Steering


Integral Power Steering

Brake

Service Brake


Hydraulic Drum Brake

Parking Brake


Acting On Driving Wheel Brake


For NISSAN baggage tractor, we achieved the manufacture license of special vehicle and ground special equipment, which awarded by the General administration of civil aviation China. It is the first choice to replace the imported products, has entered the markets as follow :China international airline, China eastern airline, China southern airline and State post service administration and China railway express company etc..


What’s more, a lot of products were exported to more than 20 foreign countries and got all favorable responses from our customers.


“Pursuit of excellence, satisfactory of customer” is our philosophy to establish the image of our enterprise and product.
